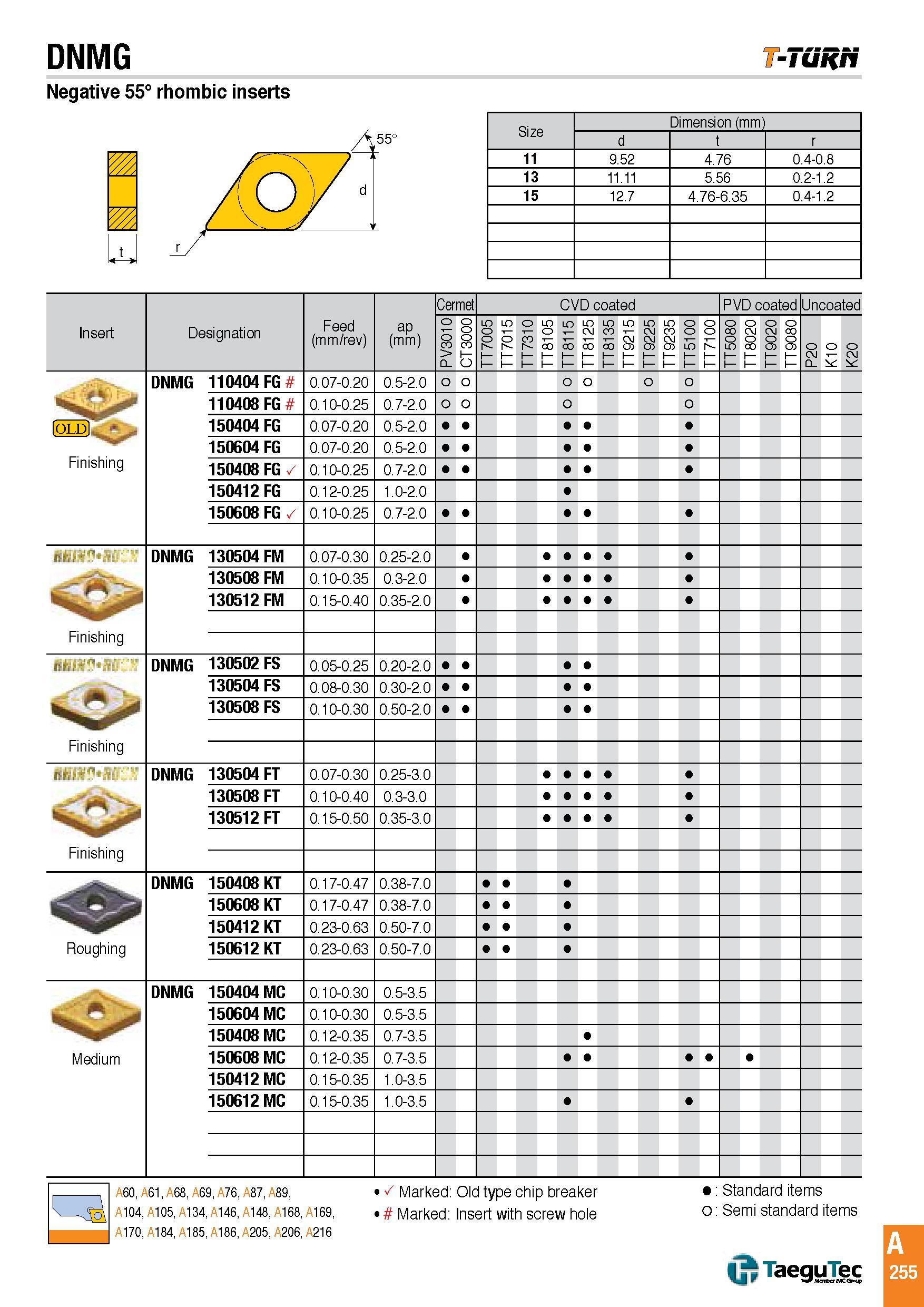

DNMG -7u cn Negative 55° rhombic inserts Size Dimension (mm) d r 11 9.52 4.76 0.4-0.8 13 11.11 5.56 0.2-1.2 15 12.7 4.76-6.35 0.4-1.2 Insert Designation Feed (mm/rev) ap (mm) Cermet CVD coated PVD coated Uncoatec PV3010 o o o 3 I O TT7005 TT7015 TT7310 TT8105 TT8115 TT8125 TT8135 TT9215 TT9225 TT9235 TT5100 o o TT I TT5080I TT8020 TT9020 O 8 o c& TT 1 o 2 CL o o CM (OLD) Finishing DNMG 110404 FG 0.07-0.20 0.5-2.0 O o o o o o 110408 FG 0.10-0.25 0.7-2.0 o 0 0 0 150404 FG 0.07-0.20 0.5-2.0 150604 FG 0.07-0.20 0.5-2.0 150408 FG / 0.10-0.25 0.7-2.0 150412 FG 0.12-0.25 10-2.0 150608 FG / 0.10-0.25 0.7-2.0 Hi. Finishing DNMG 130504 FM 0.07-0.30 0.25-2.0 130508 FM 0.10-0.35 0.3-2.0 130512 FM 0.15-0.40 0.35-2.0 or.. ' ' Finishing DNMG 130502 FS 0.05-0.25 0.20-2.0 130504 FS 0.08-0.30 0.30-2.0 130508 FS 0.10-0.30 0.50-2.0 J:- ' Finishing DNMG 130504 FT 0.07-0.30 0.25-3.0 130508 FT 0.10-0.40 0.3-3.0 130512 FT 0.15-0.50 0.35-3.0 Roughing DNMG 150408 KT 0.17-0.47 0.38-7.0 150608 KT 0.17-0.47 0.38-7.0 150412 KT 0.23-0.63 0.50-7.0 150612 KT 0.23-0.63 0.50-7.0 Medium DNMG 150404 MC 0.10-0.30 0.5-3.5 150604 MC 0.10-0.30 0.5-3.5 150408 MC 0.12-0.35 0.7-3.5 150608 MC 0.12-0.35 0.7-3.5 150412 MC 0.15-0.35 10-3.5 150612 MC 0.15-0.35 10-3.5 A60, A61, A68, A69, A76, A87, A89, A104, A105, A134, A146, A148, A168, A169, A170, A184, A185, A186, A205, A206, A216 / Marked Old type chip breaker Marked Insert with screw hole Standard items o Semi standard items TaeguTec A 255
