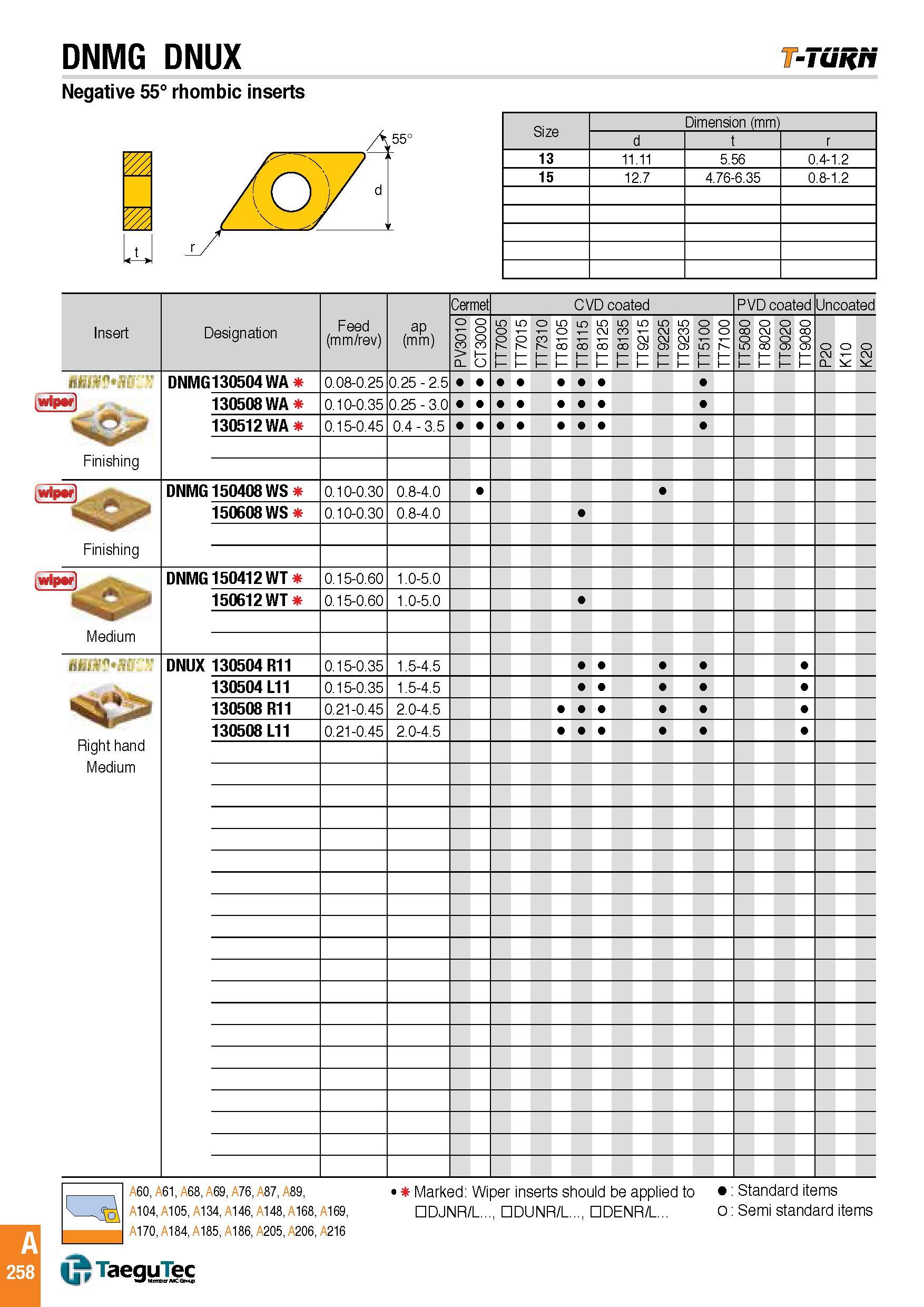

DNMG DNUX T-Tuifn Negative 55° rhombic inserts Size Dimension (mm) d t r 13 11.11 5.56 0.4-1.2 15 12.7 4.76-6.35 0.8-1.2 Insert Designation Feed (mm/rev) ap (mm) Cermet CVD coated PVD coated Uncoatec PV3010 O 0 0 3 1 O TT7005 TT7015 TT7310 TT8105 TT8115 TT8125 TT8135 TT9215 TT9225 TT9235 TT5100 o 00 TT i TT50801 TT8020 TT9020 o 8 0 c& TT 1 o 2 CL 00 0 2 Finishing DNMG130504 WA 0.08-0.25 0.25 - 2.5 130508 WA 0.10-0.35 0.25 - 3.0 130512 WA 0.15-0.45 0.4 - 3.5 - Finishing DNMG 150408 WS 0.10-0.30 0.8-4.0 150608 WS 0.10-0.30 0.8-4.0 ;; Medium DNMG 150412 WT 0.15-0.60 1.0-5.0 150612 WT 0.15-0.60 1.0-5.0 lift (I1 If ' Right hand Medium DNUX 130504 R11 0.15-0.35 1.5-4.5 130504 L11 0.15-0.35 1.5-4.5 130508 R11 0.21-0.45 2.0-4.5 130508 L11 0.21-0.45 2.0-4.5 A60, A61, A68, A69, A76, A87, A89, A104, A105, A134, A146, A148, A168, A169, A170, A184, A185, A186, A205, A206, A216 Marked Wiper inserts should be applied to DJNR/L..., DUNR/L..., aDENR/L Standard items o Semi standard items TaeguTec A 258
