259 Каталог TAEGUTEC 2016 Инструмент для токарных станков Резцы Державки Пластины Сверла Стр.A256

Каталог TAEGUTEC 2016 Инструмент токарный Стр. A256 0259 ENG Lab2u

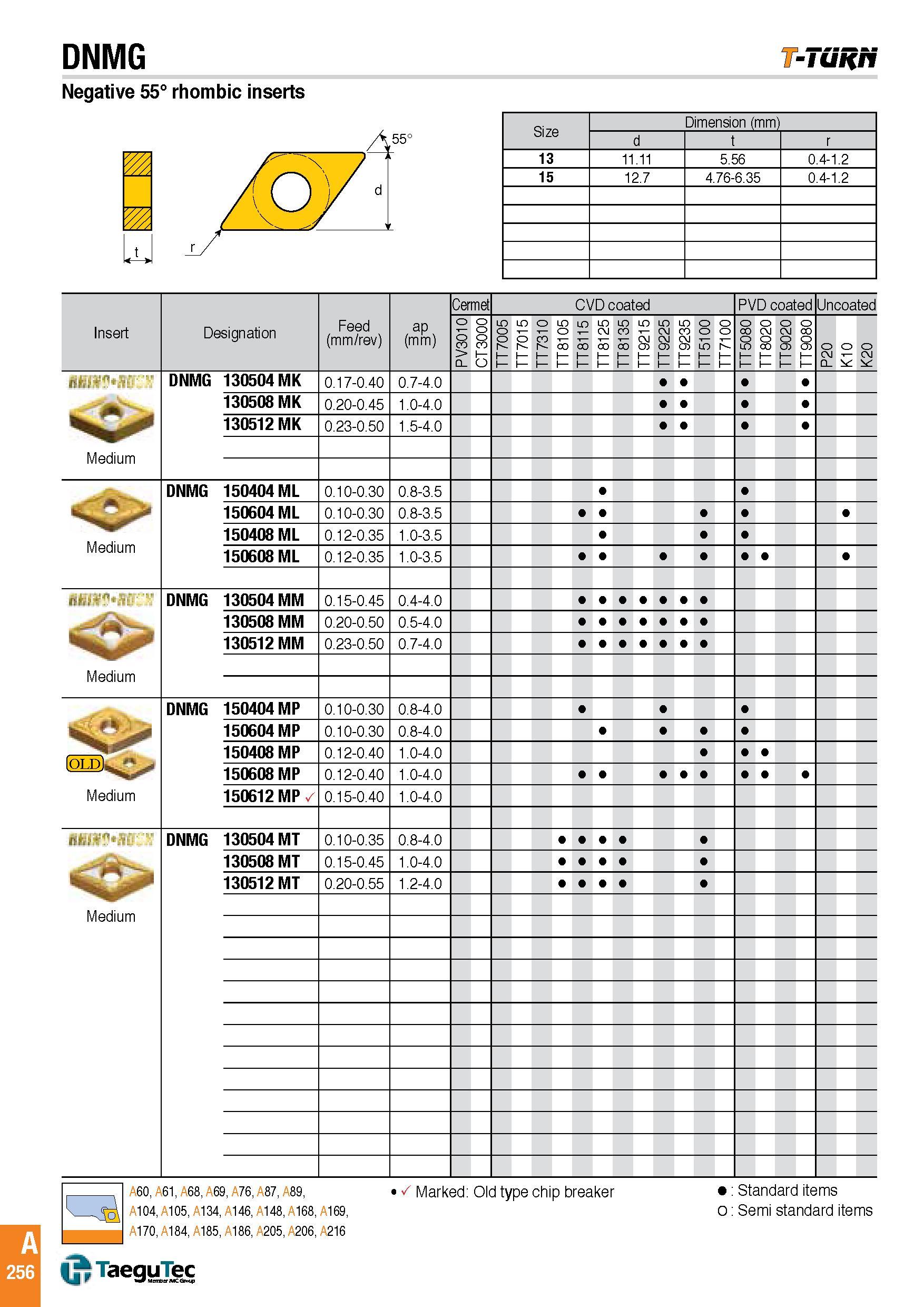

DNMG T-Tuifn Negative 55° rhombic inserts Size Dimension (mm) d t r 13 11.11 5.56 0.4-1.2 15 12.7 4.76-6.35 0.4-1.2 Insert Designation Feed (mm/rev) ap (mm) Cermet CVD coated PVD coated Uncoatec PV3010I O o o 3 1 o TT7005I TT7015 TT7310 TT8105 TT8115 TT8125 TT8135 TT9215 TT9225 TT9235 TT5100 O o 51 T 1 TT5080I TT8020 TT9020 O co o T 1 o 2 CL o o 2 o Medium DNMG 130504 MK 0.17-0.40 0.7-4.0 130508 MK 0.20-0.45 1.0-4.0 130512 MK 0.23-0.50 1.5-4.0 Medium DNMG 150404 ML 0.10-0.30 0.8-3.5 150604 ML 0.10-0.30 0.8-3.5 150408 ML 0.12-0.35 1.0-3.5 150608 ML 0.12-0.35 1.0-3.5 or.. (I1 If ' Medium DNMG 130504 MM 0.15-0.45 0.4-4.0 130508 MM 0.20-0.50 0.5-4.0 130512 MM 0.23-0.50 0.7-4.0 (old) Medium DNMG 150404 MP 0.10-0.30 0.8-4.0 150604 MP 0.10-0.30 0.8-4.0 150408 MP 0.12-0.40 1.0-4.0 150608 MP 0.12-0.40 1.0-4.0 150612 MP / 0.15-0.40 1.0-4.0 J:- ‘ Medium DNMG 130504 MT 0.10-0.35 0.8-4.0 130508 MT 0.15-0.45 1.0-4.0 130512 MT 0.20-0.55 1.2-4.0 A60, A61, A68, A69, A76, A87, A89, A104, A105, A134, A146, A148, A168, A169, A170, A184, A185, A186, A205, A206, A216 / Marked Old type chip breaker Standard items o Semi standard items ut TaeguTec A 256
