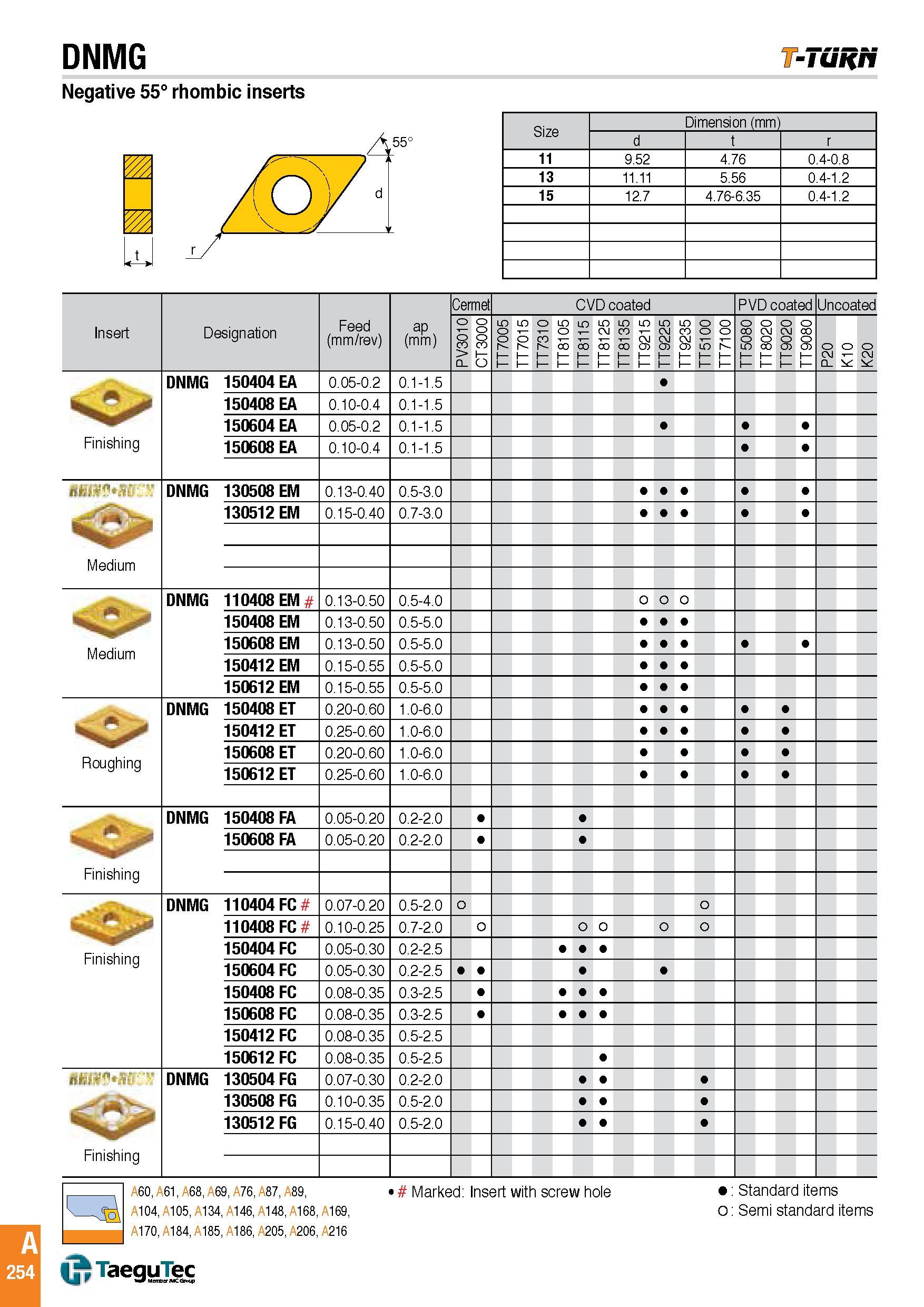

DNMG T-T£inn Negative 55° rhombic inserts Size Dimension (mm) d r 11 9.52 4.76 0.4-0.8 13 11.11 5.56 0.4-1.2 15 12.7 4.76-6.35 0.4-1.2 Insert Designation Feed (mm/rev) ap (mm) Cermet CVD coated PVD coated Uncoatec o o CO CL o o o 3 1 o TT7005 TT7015 TT7310 TT8105 TT8115 TT8125 TT8135 TT9215 TT9225 TT9235 TT5100 o o TT I TT5080I TT8020 TT9020 O 8 o c& TT 1 o CM CL O o CM Finishing DNMG 150404 EA 0.05-0.2 0.1-1.5 150408 EA 0.10-0.4 0.1-1.5 150604 EA 0.05-0.2 0.1-1.5 150608 EA 0.10-0.4 0.1-1.5 Hi. Medium DNMG 130508 EM 0.13-0.40 0.5-3.0 130512 EM 0.15-0.40 0.7-3.0 Medium DNMG 110408 EM 0.13-0.50 0.5-4.0 0 o 0 150408 EM 0.13-0.50 0.5-5.0 150608 EM 0.13-0.50 0.5-5.0 150412 EM 0.15-0.55 0.5-5.0 150612 EM 0.15-0.55 0.5-5.0 s> Roughing DNMG 150408 ET 0.20-0.60 1.0-6.0 150412 ET 0.25-0.60 1.0-6.0 150608 ET 0.20-0.60 1.0-6.0 150612 ET 0.25-0.60 1.0-6.0 Finishing DNMG 150408 FA 0.05-0.20 0.2-2.0 150608 FA 0.05-0.20 0.2-2.0 Finishing DNMG 110404 FC 0.07-0.20 0.5-2.0 o O 110408 FC 0.10-0.25 0.7-2.0 o o 0 o o 150404 FC 0.05-0.30 0.2-2.5 150604 FC 0.05-0.30 0.2-2.5 150408 FC 0.08-0.35 0.3-2.5 150608 FC 0.08-0.35 0.3-2.5 150412 FC 0.08-0.35 0.5-2.5 150612 FC 0.08-0.35 0.5-2.5 j:-. ' Finishing DNMG 130504 FG 0.07-0.30 0.2-2.0 130508 FG 0.10-0.35 0.5-2.0 130512 FG 0.15-0.40 0.5-2.0 A60, A61, A68, A69, A76, A87, A89, A104, A105, A134, A146, A148, A168, A169, A170, A184, A185, A186, A205, A206, A216 Marked Insert with screw hole Standard items o Semi standard items ut TaeguTec
