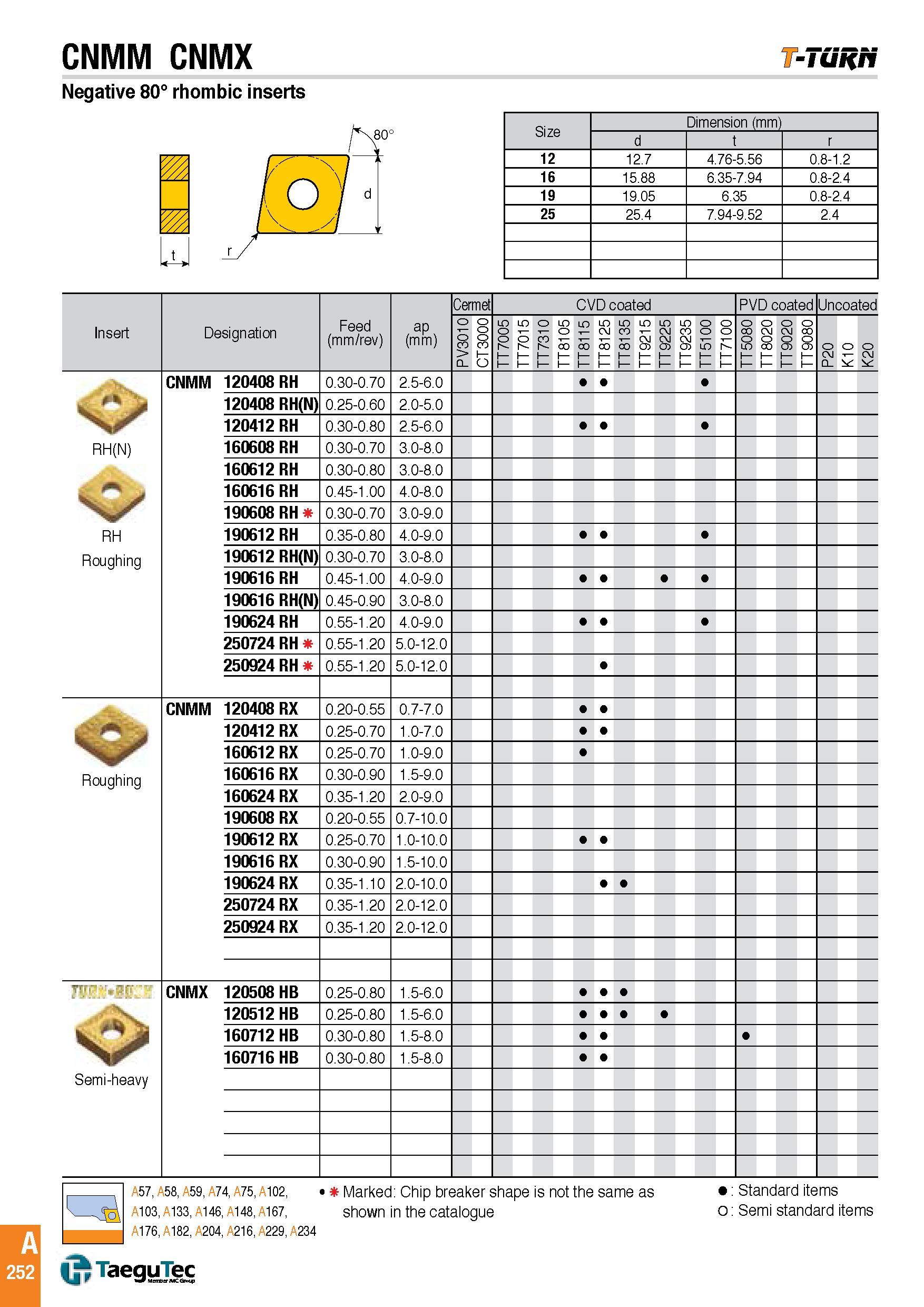

CNMM CNMX V-TURn Negative 80° rhombic inserts Size Dimension (mm) d t r 12 12.7 4.76-5.56 0.8-1.2 16 15.88 6.35-7.94 0.8-2.4 19 19.05 6.35 0 8-2.4 25 25.4 7.94-9.52 2.4 Insert Designation Feed (mm/rev) ap (mm) Cermet CVD coated PVD coated Uncoatec PV3010I O o o 3 1 o TT7005I TT7015 TT7310 TT8105 TT8115 TT8125 TT8135 TT9215 TT9225 TT9235 TT5100 o o 51 T 1 TT5080I TT8020 TT9020 O 8 o 9 T 1 o 2 CL o o 2 RH(N) RH Roughing CNMM 120408 RH 0.30-0.70 2.5-6.0 120408 RH(N) 0.25-0.60 2.0-5.0 120412 RH 0.30-0.80 2.5-6.0 160608 RH 0.30-0.70 3.0-8.0 160612 RH 0.30-0.80 3.0-8.0 160616 RH 0.45-1.00 4.0-8.0 190608 RH 0.30-0.70 3.0-9.0 190612 RH 0.35-0.80 4.0-9.0 190612 RH(N) 0.30-0.70 3.0-8.0 190616 RH 0.45-1.00 4.0-9.0 190616 RH(N) 0.45-0.90 3.0-8.0 190624 RH 0.55-1.20 4.0-9.0 250724 RH 0.55-1.20 5.0-12.0 250924 RH 0.55-1.20 5.0-12.0 O Roughing CNMM 120408 RX 0.20-0.55 0.7-7.0 120412 RX 0.25-0.70 1.0-7.0 160612 RX 0.25-0.70 1.0-9.0 160616 RX 0.30-0.90 1.5-9.0 160624 RX 0.35-1.20 2.0-9.0 190608 RX 0.20-0.55 0.7-10.0 190612 RX 0.25-0.70 1.0-10.0 190616 RX 0.30-0.90 1.5-10.0 190624 RX 0.35-1.10 2.0-10.0 250724 RX 0.35-1.20 2.0-12.0 250924 RX 0.35-1.20 2.0-12.0 TTrr ' - Fi' ''' Semi-heavy CNMX 120508 HB 0.25-0.80 1.5-6.0 120512 HB 0.25-0.80 1.5-6.0 160712 HB 0.30-0.80 1.5-8.0 160716 HB 0.30-0.80 1.5-8.0 A57, A58, A59, A74, A75, A102, Marked Chip breaker shape is not the same as A103, A133, A146, A148, A167, shown in the catalogue A176, A182, A204, A216, A229, A234 Standard items o Semi standard items TaeguTec A 252
