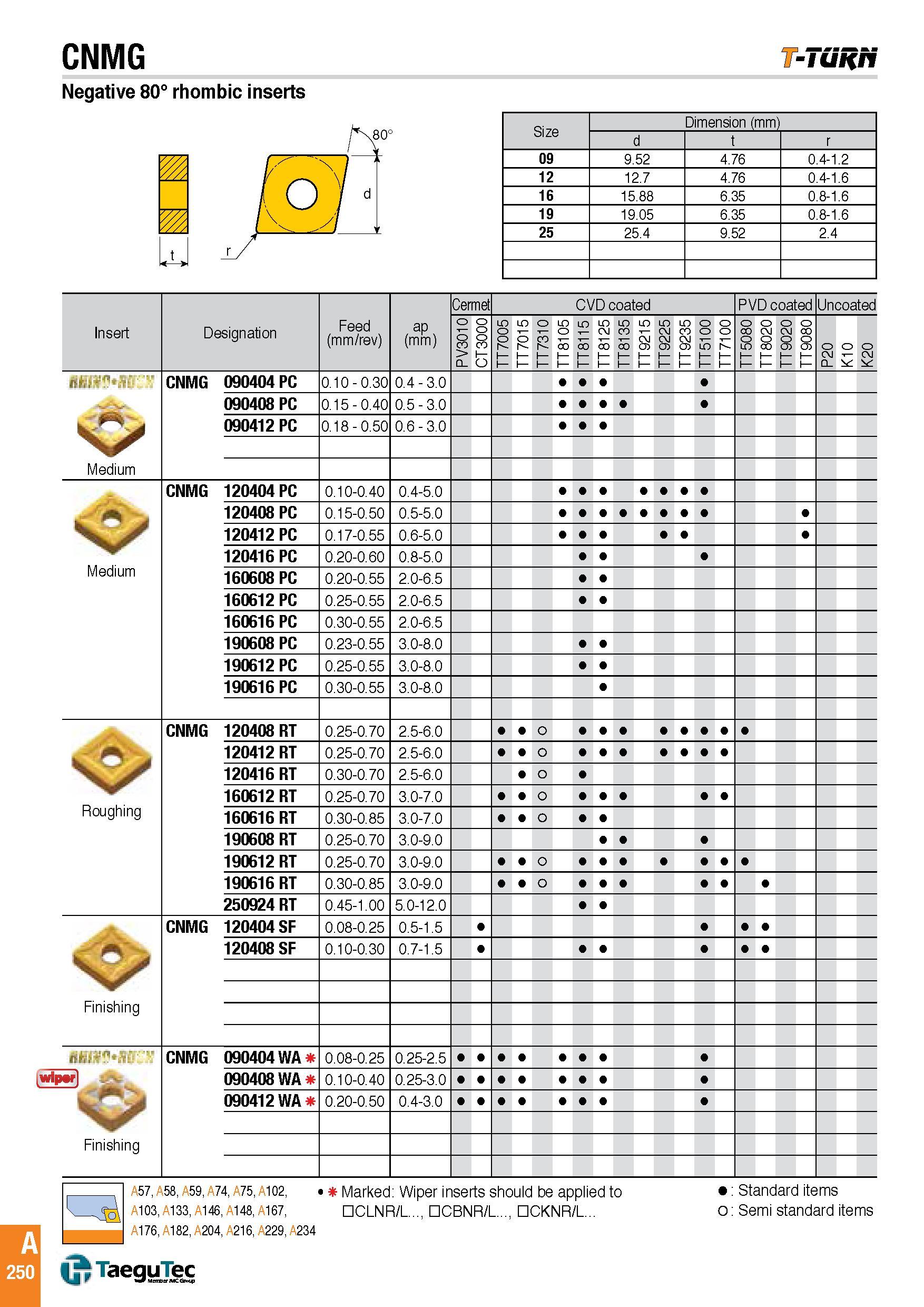

CNMG T-Tuifn Negative 80° rhombic inserts Size Dimension (mm) d t r 09 9.52 4.76 0.4-1.2 12 12.7 4.76 0.4-1.6 16 15.88 6.35 0.8-1.6 19 19.05 6.35 0.8-1.6 25 25.4 9.52 2.4 Insert Designation Feed (mm/rev) ap (mm) Cermet CVD coated PVD coated Uncoatec o o CO CL 0 0 0 3 1 o TT7005 TT7015 TT7310 TT8105 TT8115 TT8125 TT8135 TT9215 TT9225 TT9235 TT5100 o 00 TT i TT50801 TT8020 TT9020 o 8 0 9 TT 1 o CM CL 00 0 2 O' Medium CNMG 090404 PC 0.10 - 0.30 0.4 - 3.0 090408 PC 0.15 - 0.40 0.5 - 3.0 090412 PC 0.18 - 0.50 0.6 - 3.0 o Medium CNMG 120404 PC 0.10-0.40 0.4-5.0 120408 PC 0.15-0.50 0.5-5.0 120412 PC 0.17-0.55 0.6-5.0 120416 PC 0.20-0.60 0.8-5.0 160608 PC 0.20-0.55 2.0-6.5 160612 PC 0.25-0.55 2.0-6.5 160616 PC 0.30-0.55 2.0-6.5 190608 PC 0.23-0.55 3.0-8.0 190612 PC 0.25-0.55 3.0-8.0 190616 PC 0.30-0.55 3.0-8.0 A Roughing CNMG 120408 RT 0.25-0.70 2.5-6.0 o 120412 RT 0.25-0.70 2.5-6.0 o 120416 RT 0.30-0.70 2.5-6.0 o 160612 RT 0.25-0.70 3.0-7.0 o 160616 RT 0.30-0.85 3.0-7.0 o 190608 RT 0.25-0.70 3.0-9.0 190612 RT 0.25-0.70 3.0-9.0 o 190616 RT 0.30-0.85 3.0-9.0 o 250924 RT 0.45-1.00 5.0-12.0 Finishing CNMG 120404 SF 0.08-0.25 0.5-1.5 120408 SF 0.10-0.30 0.7-1.5 Finishing CNMG 090404 WA 0.08-0.25 0.25-2.5 090408 WA 0.10-0.40 0.25-3.0 090412 WA 0.20-0.50 0.4-3.0 A57, A58, A59, A74, A75, A102, A103, A133, A146, A148, A167, A176, A182, A204, A216, A229, A234 Marked Wiper inserts should be applied to CLNR/L..., CBNR/L..., CKNR/L Standard items o Semi standard items ut TaeguTec
