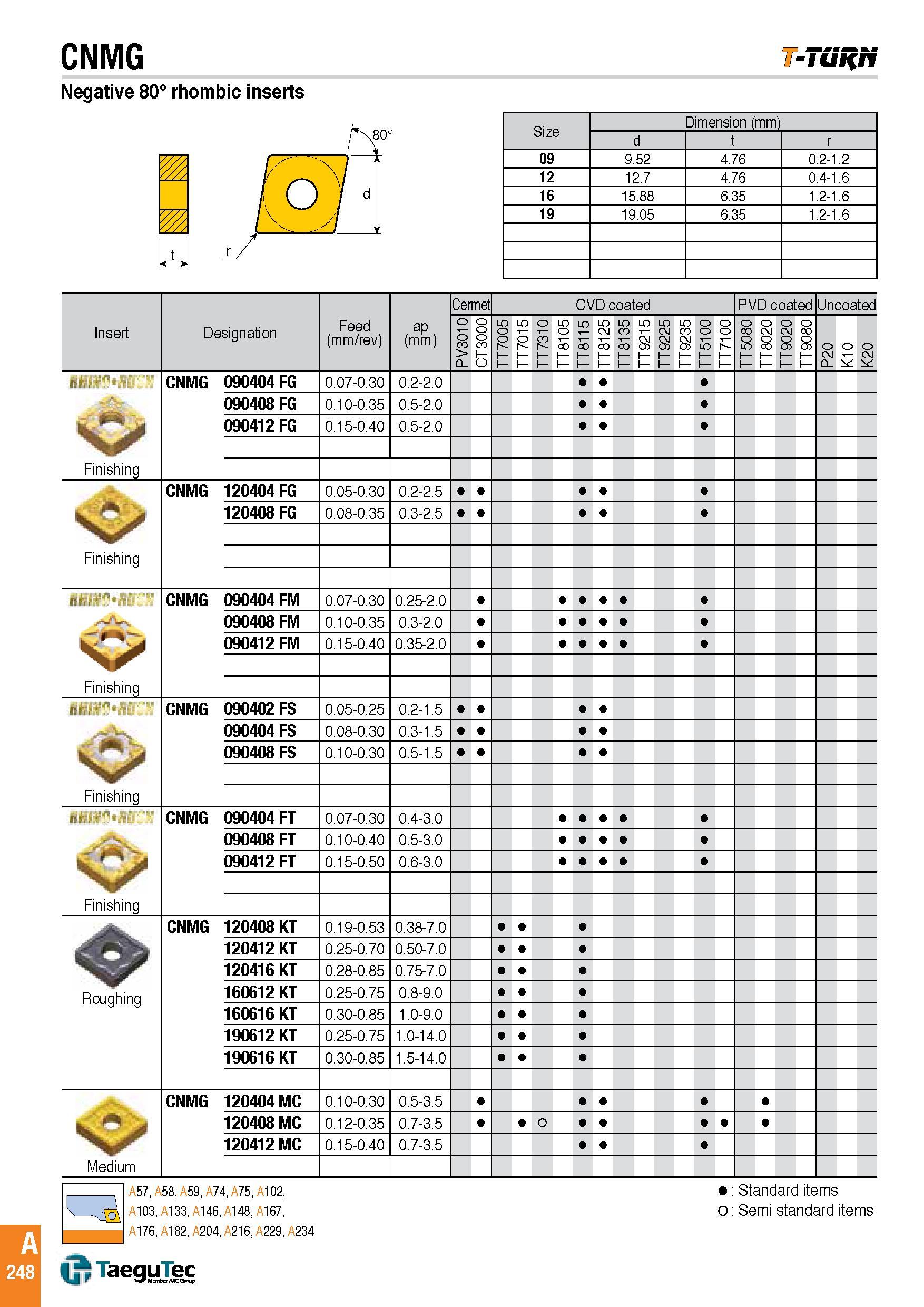

CNMG T-Tuifn Negative 80° rhombic inserts Size Dimension (mm) d t r 09 9.52 4.76 0.2-1.2 12 12.7 4.76 0.4-1.6 16 15.88 6.35 1.2-1.6 19 19.05 6.35 1.2-1.6 Insert Designati on Feed (mm/rev) ap (mm) Cermet CVD coated PVD coated Uncoatec o o CO CL o o o 3 1 o TT7005 TT7015 TT7310 TT8105 TT8115 TT8125 TT8135 TT9215 TT9225 TT9235 TT5100 o o TT i TT5080I TT8020 TT9020 O 8 o 9 TT 1 o CM CL O o CM o Finishing CNMG 090404 FG 0.07-0.30 0.2-2.0 090408 FG 0.10-0.35 0.5-2.0 090412 FG 0.15-0.40 0.5-2.0 O' Finishing CNMG 120404 FG 0.05-0.30 0.2-2.5 120408 FG 0.08-0.35 0.3-2.5 Finishing CNMG 090404 FM 0.07-0.30 0.25-2.0 090408 FM 0.10-0.35 0.3-2.0 090412 FM 0.15-0.40 0.35-2.0 J:- V Finishing CNMG 090402 FS 0.05-0.25 0.2-1.5 090404 FS 0.08-0.30 0.3-1.5 090408 FS 0.10-0.30 0.5-1.5 j:- ' Finishing CNMG 090404 FT 0.07-0.30 0.4-3.0 090408 FT 0.10-0.40 0.5-3.0 090412 FT 0.15-0.50 0.6-3.0 Roughi ng CNMG 120408 KT 0.19-0.53 0.38-7.0 120412 KT 0.25-0.70 0.50-7.0 120416 KT 0.28-0.85 0.75-7.0 160612 KT 0.25-0.75 0.8-9.0 160616 KT 0.30-0.85 1.0-9.0 190612 KT 0.25-0.75 1.0-14.0 190616 KT 0.30-0.85 1.5-14.0 Medi um CNMG 120404 MC 0.10-0.30 0.5-3.5 120408 MC 0.12-0.35 0.7-3.5 o 120412 MC 0.15-0.40 0.7-3.5 A57, A58, A59, A74, A75, A102, A103, A133, A146, A148, A167, A176, A182, A204, A216, A229, A234 Standard items o Semi standard items TaeguTec A 248
