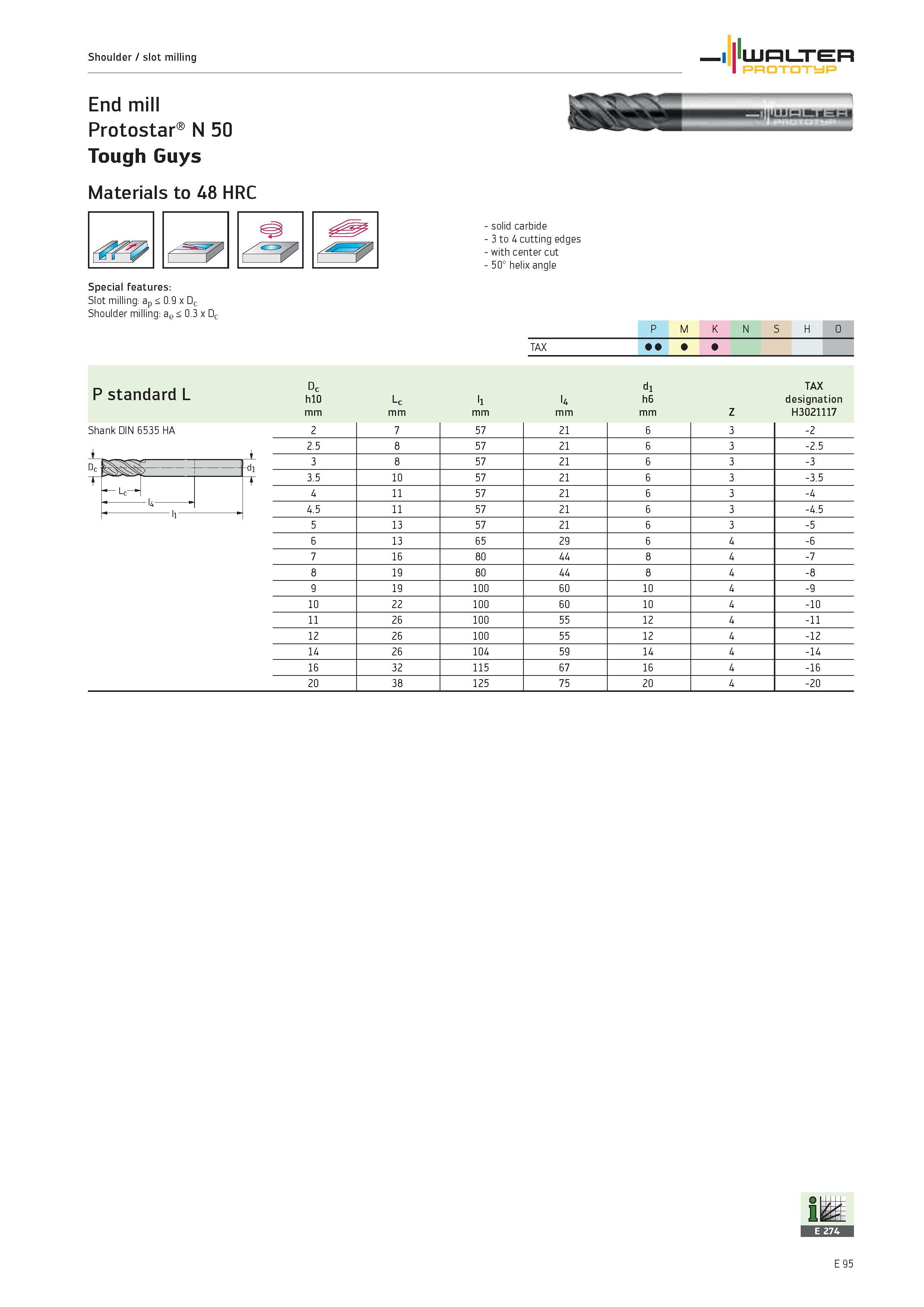

1697 Каталог WALTER 2012 Металлорежущий инструмент и оснастка Valenite для станков Стр.E95

Каталог WALTER 2012 Инструмент и оснастка Valenite Стр. E95 1697 ENG Lab2u

Shoulder / slot milling End mill Protostar N 50 Tough Guys Materials to 48 HRC Special features Slot milling ap < 0.9 x Dc Shoulder milling ae < 0.3 x Dc Shank DIN 6535 HA Dc -dj t Lc t 11 .i iLum n ER PROTOTYP solid carbide 3 to 4 cutting edges with center cut 50° helix angle 1 P M K N S H O TAX 1 P standard L Dc h10 Lc ll U dl h6 TAX designation mm Z H3021117 2 7 57 21 6 3 -2 2.5 8 57 21 6 3 -2.5 3 8 57 21 6 3 -3 3.5 10 57 21 6 3 -3.5 4 11 57 21 6 3 -4 4.5 11 57 21 6 3 -4.5 5 13 57 21 6 3 -5 6 13 65 29 6 4 -6 7 16 80 44 8 4 -7 8 19 80 44 8 4 -8 9 19 100 60 10 4 -9 10 22 100 60 10 4 -10 11 26 100 55 12 4 -11 12 26 100 55 12 4 -12 14 26 104 59 14 4 -14 16 32 115 67 16 4 -16 20 38 125 75 20 4 -20
