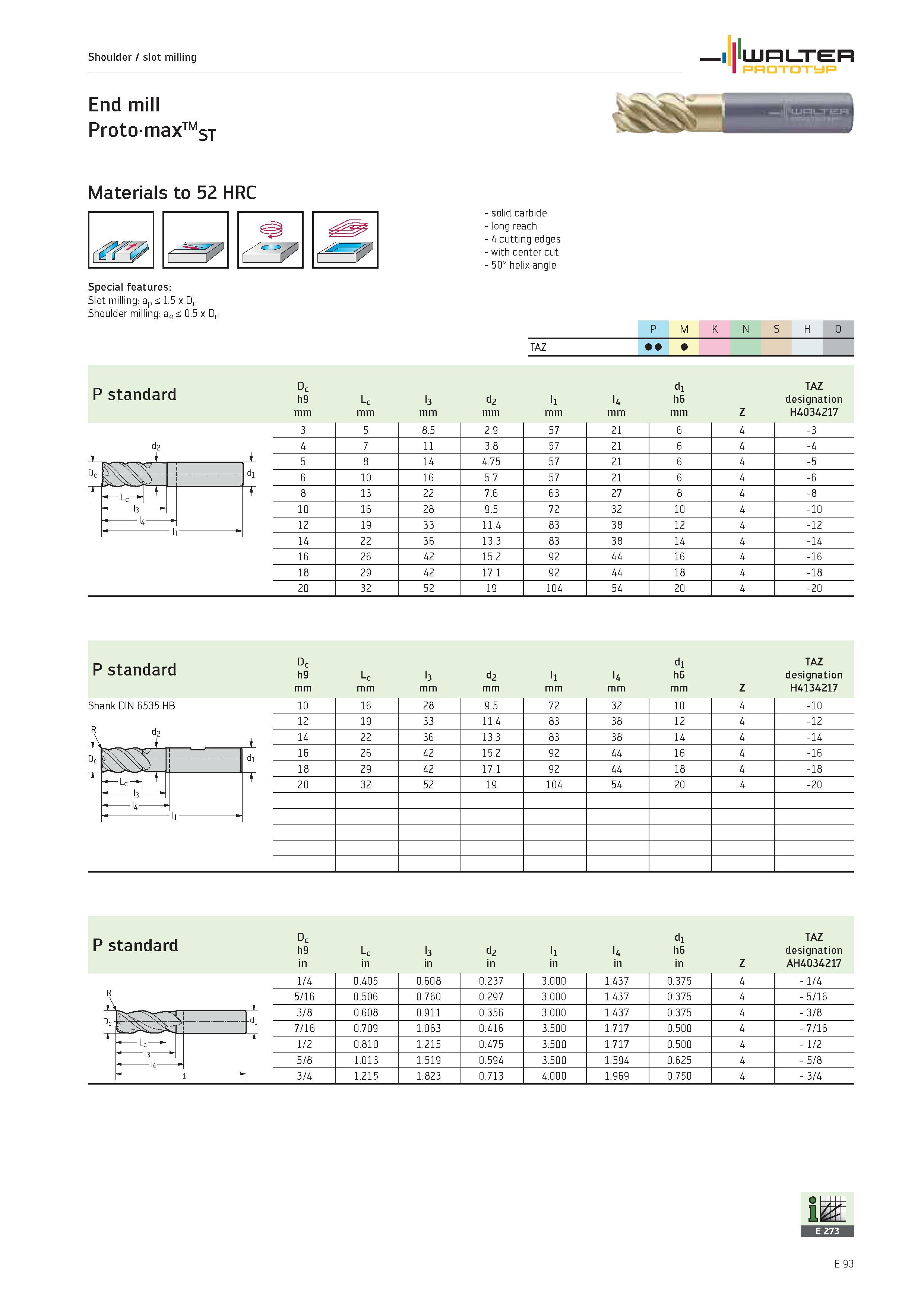

WALTER Prototyp Shoulder / slot milling End mill ProtomaxTMsT Materials to 52 HRC solid carbide long reach 4 cutting edges with center cut 50° helix angle Special features Slot milling ap < 1.5 x Dc Shoulder milling ae < 0.5 x Dc 1 p M K N S H O TAZ P standard c9 m Q-CE Lc mm l3 mm d2 mm li mm l4 mm di h6 mm Z TAZ designation H4034217 3 5 8.5 2.9 57 21 6 4 -3 d2 4 7 11 3.8 57 21 6 4 -4 I p1 5 8 14 4.75 57 21 6 4 -5 Uc- "V dl 6 10 16 5.7 57 21 6 4 -6 Lc t T 8 13 22 7.6 63 27 8 4 -8 -1 10 16 28 9.5 72 32 10 4 -10 l 12 19 33 11.4 83 38 12 4 -12 14 22 36 13.3 83 38 14 4 -14 16 26 42 15.2 92 44 16 4 -16 18 29 42 17.1 92 44 18 4 -18 20 32 52 19 104 54 20 4 -20 P standard c9 Dh Lc l3 d2 li l4 di h6 TAZ designation mm Z H4134217 Shank DIN 6535 HB 1 -di „ l3 t t l4 -ll 10 16 28 9.5 72 32 10 4 -10 12 19 33 11.4 83 38 12 4 -12 14 22 36 13.3 83 38 14 4 -14 16 26 42 15.2 92 44 16 4 -16 18 29 42 17.1 92 44 18 4 -18 20 32 52 19 104 54 20 4 -20 R P standard -di Lc j t 4 di TAZ h9 Lc l3 d2 li l4 h6 designation in Z AH4034217 1/4 0.405 0.608 0.237 3.000 1.437 0.375 4 1/4 5/16 0.506 0.760 0.297 3.000 1.437 0.375 4 5/16 3/8 0.608 0.911 0.356 3.000 1.437 0.375 4 3/8 7/16 0.709 1.063 0.416 3.500 1.717 0.500 4 7/16 1/2 0.810 1.215 0.475 3.500 1.717 0.500 4 1/2 5/8 1.013 1.519 0.594 3.500 1.594 0.625 4 5/8 3/4 1.215 1.823 0.713 4.000 1.969 0.750 4 3/4 D c R E 93
