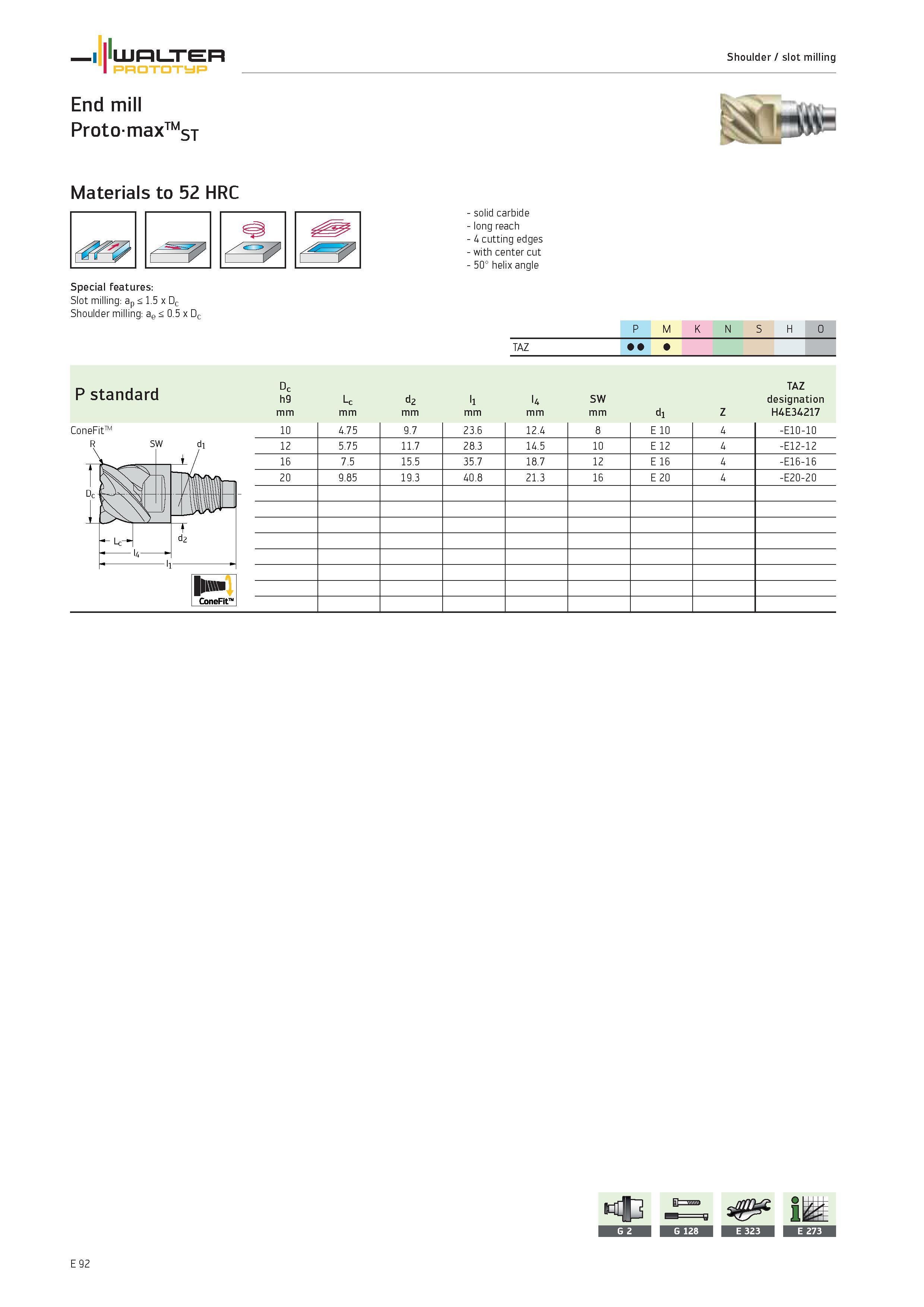

WALTER PROTOTYP Shoulder / slot milling End mill ProtomaxTMsT Materials to 52 HRC "7 Special features Slot milling ap < 1.5 x Dc Shoulder milling ae < 0.5 x Dc ConeFit R SW d1 solid carbide long reach 4 cutting edges with center cut 50° helix angle 1 P M K N S H O TAZ 1 P standard Dc h9 Lc d2 ll l4 SW TAZ designation mm dl Z H4E34217 10 4.75 9.7 23.6 12.4 8 E 10 4 -E10-10 12 5.75 11.7 28.3 14.5 10 E 12 4 -E12-12 16 7.5 15.5 35.7 18.7 12 E 16 4 -E16-16 20 9.85 19.3 40.8 21.3 16 E 20 4 -E20-20
