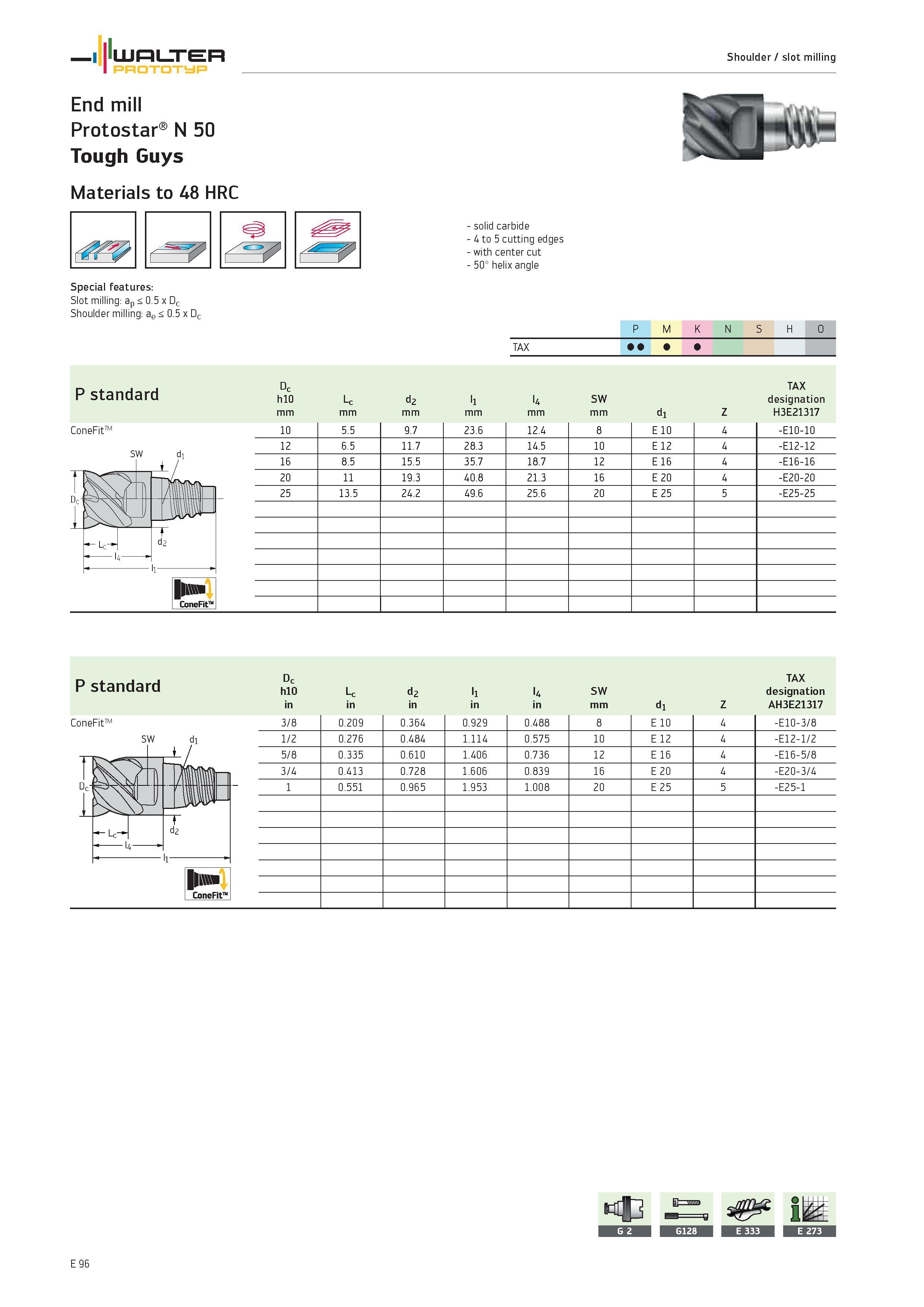

WALTER Prototyp End mill Protostar N 50 Tough Guys Materials to 48 HRC Shoulder / slot milling solid carbide 4 to 5 cutting edges with center cut 50° helix angle Special features Slot milling ap < 0.5 x Dc Shoulder milling ae < 0.5 x Dc 1 p M K N S H O TAX P standard c10 Lc d2 l1 U SW TAX designation mm d1 Z H3E21317 ConeFit 10 5.5 9.7 23.6 12.4 8 E 10 4 -E10-10 12 6.5 11.7 28.3 14.5 10 E 12 4 -E12-12 16 8.5 15.5 35.7 18.7 12 E 16 4 -E16-16 20 11 19.3 40.8 21.3 16 E 20 4 -E20-20 25 13.5 24.2 49.6 25.6 20 E 25 5 -E25-25 P standard Dc h10 Lc d2 l1 l4 SW TAX designation in mm d1 Z AH3E21317 ConeFit 3/8 0.209 0.364 0.929 0.488 8 E 10 4 -E10-3/8 1/2 0.276 0.484 1.114 0.575 10 E 12 4 -E12-1/2 5/8 0.335 0.610 1.406 0.736 12 E 16 4 -E16-5/8 3/4 0.413 0.728 1.606 0.839 16 E 20 4 -E20-3/4 1 0.551 0.965 1.953 1.008 20 E 25 5 -E25-1 E 96
