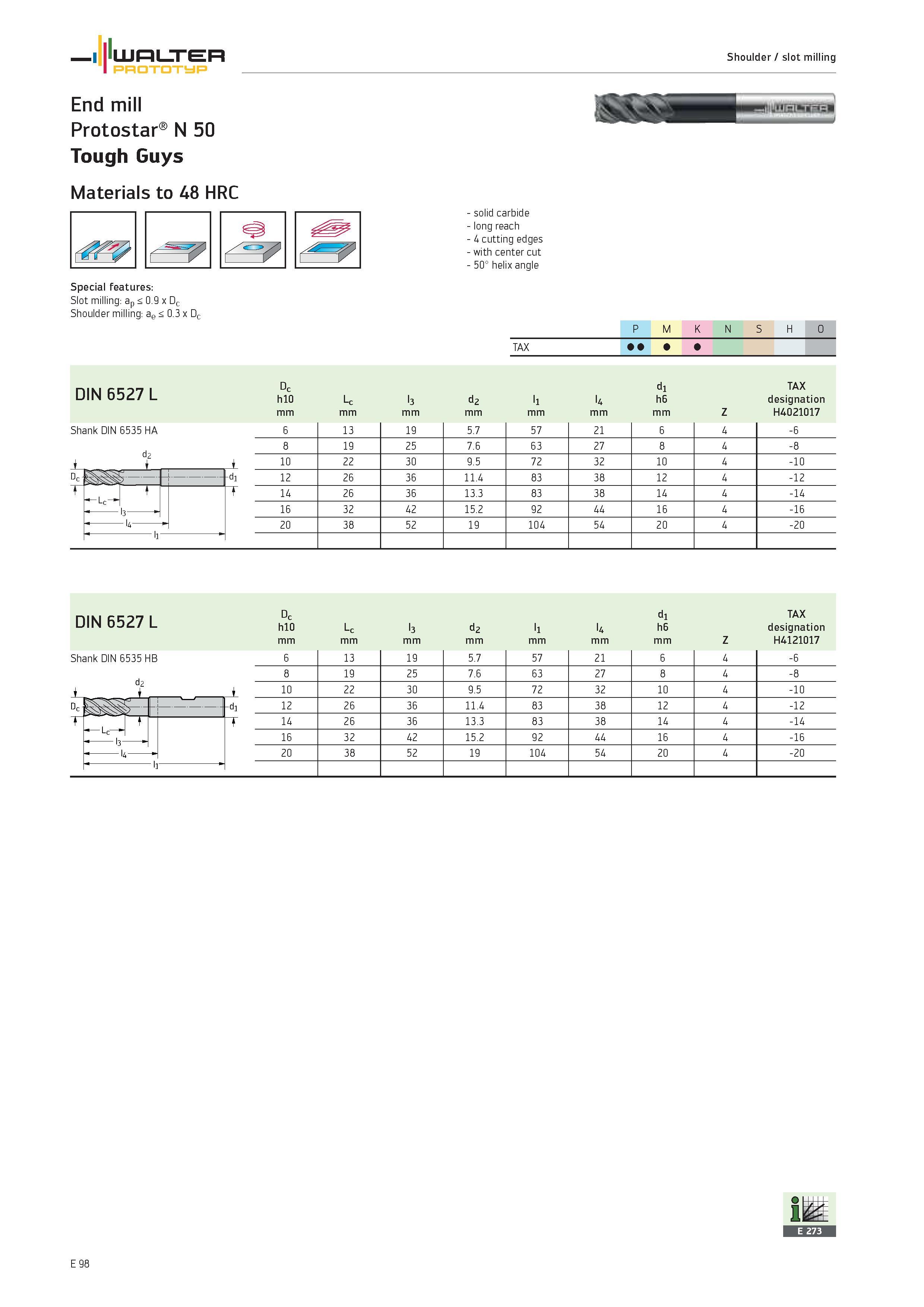

WALTER PROTOTYP Shoulder / slot milling End mill Protostar N 50 Tough Guys Materials to 48 HRC solid carbide long reach 4 cutting edges with center cut 50° helix angle Special features Slot milling ap < 0.9 x Dc Shoulder milling ae < 0.3 x Dc 1 p M K N S H O TAX 1 DIN 6527 L Dc hi0 mm Lc mm l3 mm d2 mm li mm U mm di h6 mm Z TAX designation H402i0i7 Shank DIN 6535 HA d2 jL 1 6 13 19 5.7 57 21 6 4 -6 8 19 25 7.6 63 27 8 4 -8 i 10 22 30 9.5 72 32 10 4 -10 IV dj 12 26 36 11.4 83 38 12 4 -12 1 T 14 26 36 13.3 83 38 14 4 -14 l3 16 32 42 15.2 92 44 16 4 -16 -l4 20 38 52 19 104 54 20 4 -20 lj DIN 6527 L Dc hi0 mm Lc mm l3 mm d2 mm li mm U mm i6 m dhm Z TAX designation H4i2i0i7 Shank DIN 6535 HB d2 jL 6 13 19 5.7 57 21 6 4 -6 8 19 25 7.6 63 27 8 4 -8 10 22 30 9.5 72 32 10 4 -10 Dc -dj 12 26 36 11.4 83 38 12 4 -12 t T 14 26 36 13.3 83 38 14 4 -14 Lc 16 32 42 15.2 92 44 16 4 -16 1 20 38 52 19 104 54 20 4 -20 l
