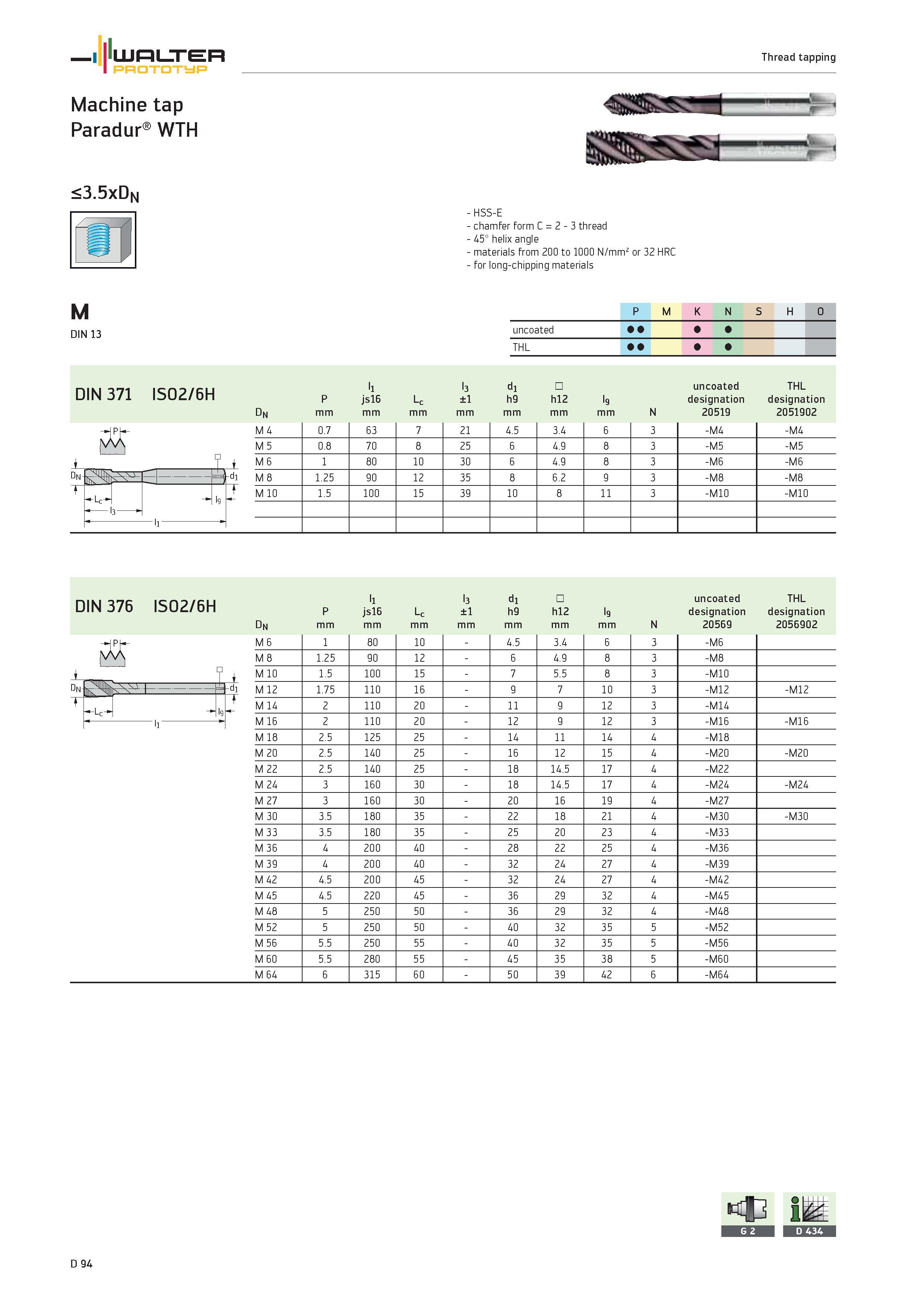

WALTER PROTOTYP Thread tapping Machine tap .J Paradur WTH <3.5xDn HSS-E chamfer form C 2 3 thread 45° helix angle materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials M DIN 13 P M K N S H O uncoated 1 THL DIN 371 ISO2/6H Dn P mm ll js16 mm Lc mm l3 ±1 mm d1 h9 mm h12 mm l9 mm N uncoated designation 20519 THL designation 2051902 i M 4 0.7 63 7 21 4.5 3.4 6 3 -M4 -M4 r A M 5 0.8 70 8 25 6 4.9 8 3 -M5 -M5 1 M 6 1 80 10 30 6 4.9 8 3 -M6 -M6 Dn "I i-di M 8 1.25 90 12 35 8 6.2 9 3 -M8 -M8 1 Lc-"' lc t M 10 1.5 100 15 39 10 8 11 3 -M10 -M10 3 ll din 376 ISO2/6H Dn l1 l3 d1 uncoated THL P js16 Lc ±1 h9 h12 l9 designation designation Dn mm N 20569 2056902 M 6 1 80 10 4.5 3.4 6 3 -M6 M 8 1.25 90 12 6 4.9 8 3 -M8 M 10 1.5 100 15 7 5.5 8 3 -M10 M 12 1.75 110 16 9 7 10 3 -M12 -M12 M 14 2 110 20 11 9 12 3 -M14 M 16 2 110 20 12 9 12 3 -M16 -M16 M 18 2.5 125 25 14 11 14 4 -M18 M 20 2.5 140 25 16 12 15 4 -M20 -M20 M 22 2.5 140 25 18 14.5 17 4 -M22 M 24 3 160 30 18 14.5 17 4 -M24 -M24 M 27 3 160 30 20 16 19 4 -M27 M 30 3.5 180 35 22 18 21 4 -M30 -M30 M 33 3.5 180 35 25 20 23 4 -M33 M 36 4 200 40 28 22 25 4 -M36 M 39 4 200 40 32 24 27 4 -M39 M 42 4.5 200 45 32 24 27 4 -M42 M 45 4.5 220 45 36 29 32 4 -M45 M 48 5 250 50 36 29 32 4 -M48 M 52 5 250 50 40 32 35 5 -M52 M 56 5.5 250 55 40 32 35 5 -M56 M 60 5.5 280 55 45 35 38 5 -M60 M 64 6 315 60 50 39 42 6 -M64 L D 94
