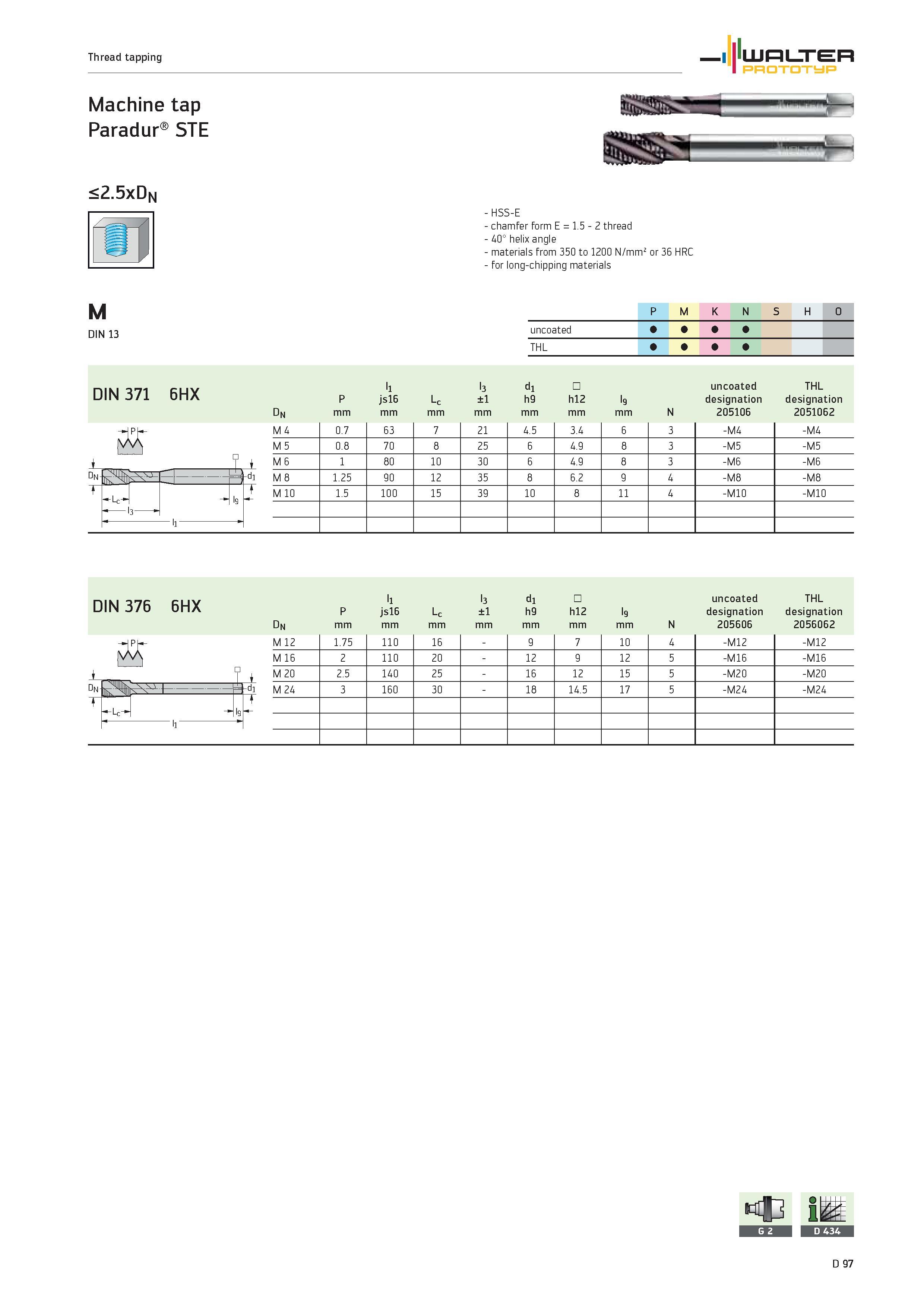

Thread tapping WALTER PROTOTYP Machine tap Paradur STE <2.5xDn -HSS-E chamfer form E 1.5 2 thread 40° helix angle materials from 350 to 1200 N/mm2 or 36 HRC for long-chipping materials M 1 P M K N S H O DIN 13 uncoated THL DIN 371 6HX Dn P mm l1 js16 mm Lc mm I3 ±1 mm d1 h9 mm h12 mm l9 mm N uncoated designation 205106 THL designation 2051062 i M 4 0.7 63 7 21 4.5 3.4 6 3 -M4 -M4 'A M 5 0.8 70 8 25 6 4.9 8 3 -M5 -M5 M 6 1 80 10 30 6 4.9 8 3 -M6 -M6 Dn 1 dl M 8 1.25 90 12 35 8 6.2 9 4 -M8 -M8 t Lc- Is t M 10 1.5 100 15 39 10 8 11 4 -M10 -M10 3 ll ll I3 di uncoated THL P js16 Lc ±1 h9 h12 I9 designation designation mm N 205606 2056062 -HPk- M 12 1.75 110 16 9 7 10 4 -M12 -M12 M 16 2 110 20 12 9 12 5 -M16 -M16 T 1 M 20 2.5 140 25 16 12 15 5 -M20 -M20 T 1 -L q -)ls li T DIN 376 6HX Dn d 97
