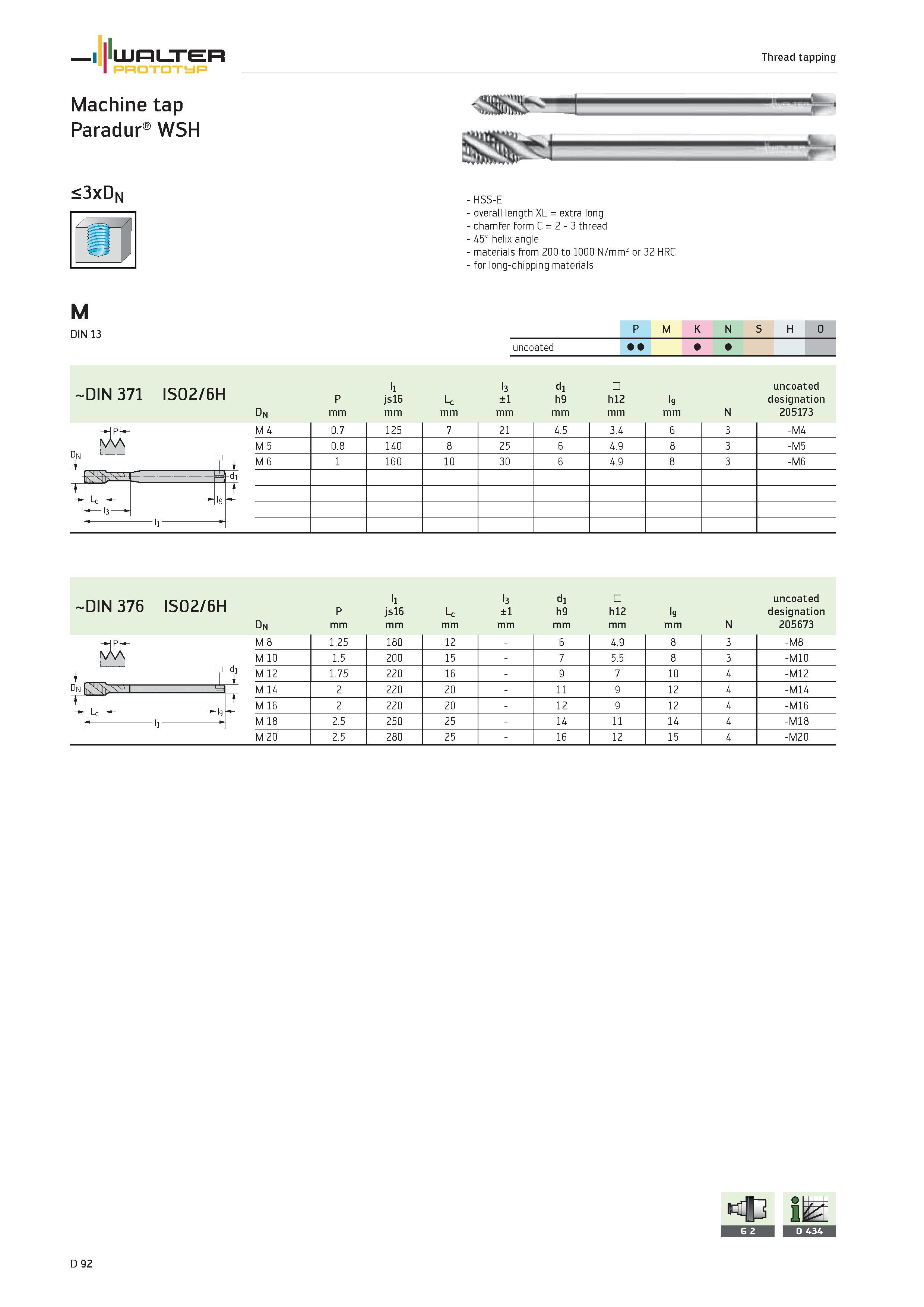

WALTER PROTOTYP Thread tapping Machine tap Paradur WSH <3xDN -HSS-E overall length XL extra long chamfer form C 2 3 thread 45° helix angle materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials M DIN 13 P M K N S H O uncoated -DIN 371 ISO2/6H p mm l1 js16 mm -c mm l3 ±1 d1 h9 h12 mm 9 mm uncoated designation 205173 M 4 0.7 125 7 21 4.5 3.4 6 3 -M4 Dn z M 5 0.8 140 8 25 6 4.9 8 3 -M5 i M 6 1 160 10 30 6 4.9 8 3 -M6 T tdi Lc l9 T ll D N mm N DIN 376 ISO2/6H Dn P mm l1 js16 mm Lc mm l3 ±1 mm 19 m dhm h12 mm l9 mm N uncoated designation 205673 d M 8 1.25 180 12 6 4.9 8 3 -M8 M 10 1.5 200 15 7 5.5 8 3 -M10 M 12 1.75 220 16 9 7 10 4 -M12 Dn- E 3 j= M 14 2 220 20 11 9 12 4 -M14 t t M 16 2 220 20 12 9 12 4 -M16 ii M 18 2.5 250 25 14 11 14 4 -M18 M 20 2.5 280 25 16 12 15 4 -M20 D 92
