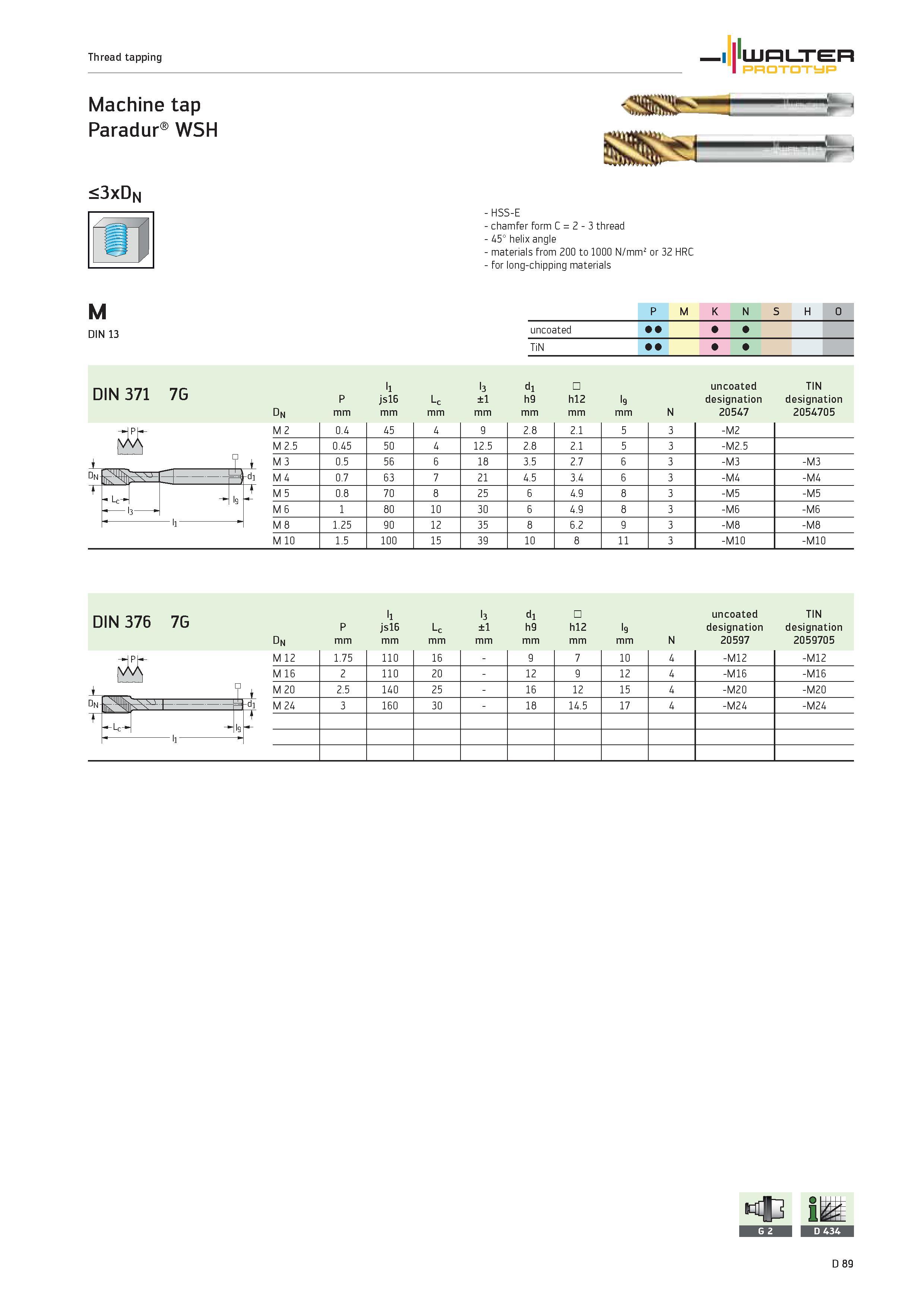

Thread tapping WALTER PROTOTYP Machine tap Paradur WSH <3xDN HSS-E chamfer form C 2 3 thread 45° helix angle materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials M DIN 13 P M K N S H O uncoated I TiN I DIN 371 7G DN P mm ll js16 mm Lc mm l3 ±1 mm 19 m dhm h12 mm l9 mm N uncoated designation 20547 TIN designation 2054705 M 2 0.4 45 4 9 2.8 2.1 5 3 -M2 M 2.5 0.45 50 4 12.5 2.8 2.1 5 3 -M2.5 t M 3 0.5 56 6 18 3.5 2.7 6 3 -M3 -M3 Dn H- rdi M 4 0.7 63 7 21 4.5 3.4 6 3 -M4 -M4 Lc- l9 t M 5 0.8 70 8 25 6 4.9 8 3 -M5 -M5 3 M 6 1 80 10 30 6 4.9 8 3 -M6 -M6 ii M 8 1.25 90 12 35 8 6.2 9 3 -M8 -M8 M 10 1.5 100 15 39 10 8 11 3 -M10 -M10 DIN 376 7G P l1 js16 Lc l3 ±1 d1 h9 h12 l9 uncoated designation TIN designation DN mm N 20597 2059705 M 12 1.75 110 16 9 7 10 4 -M12 -M12 M 16 2 110 20 12 9 12 4 -M16 -M16 M 20 2.5 140 25 16 12 15 4 -M20 -M20 M 24 3 160 30 18 14.5 17 4 -M24 -M24 D 89
