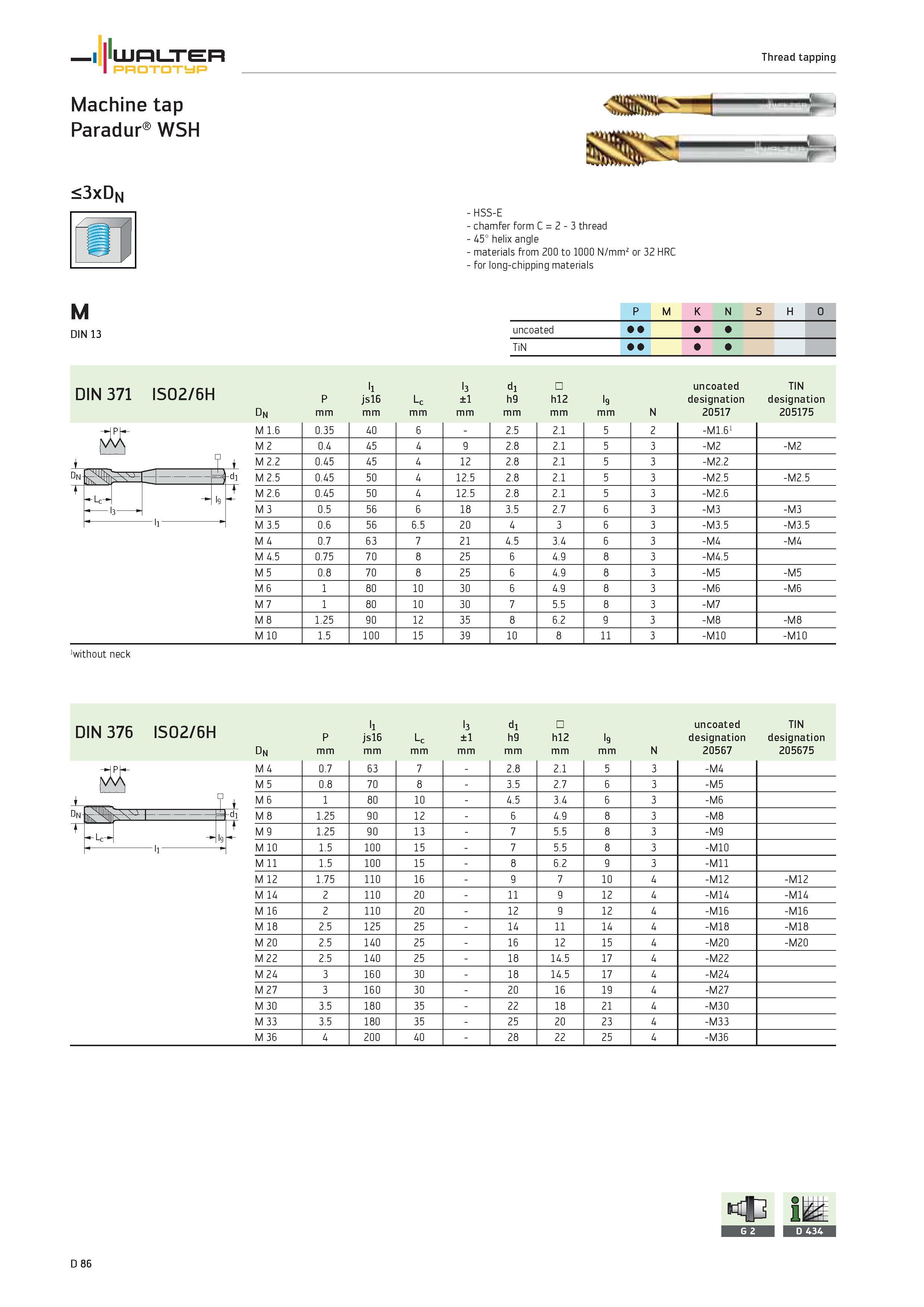

WALTER Prototyp Thread tapping Machine tap Paradur WSH <3xDN -HSS-E chamfer form C 2 3 thread 45° helix angle materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials M DIN 13 P M K N S H O uncoated I TiN I DIN 371 ISO2/6H dn P mm ll js16 mm Lc mm l3 ±1 mm di h9 mm h12 mm l9 mm N uncoated designation 20517 TIN designation 205175 a z M 1.6 0.35 40 6 2.5 2.1 5 2 -M1.61 M 2 0.4 45 4 9 2.8 2.1 5 3 -M2 -M2 jL Dn T M 2.2 0.45 45 4 12 2.8 2.1 5 3 -M2.2 hdi M 2.5 0.45 50 4 12.5 2.8 2.1 5 3 -M2.5 -M2.5 Lc- T M 2.6 0.45 50 4 12.5 2.8 2.1 5 3 -M2.6 3 M 3 0.5 56 6 18 3.5 2.7 6 3 -M3 -M3 ll M 3.5 0.6 56 6.5 20 4 3 6 3 -M3.5 -M3.5 M 4 0.7 63 7 21 4.5 3.4 6 3 -M4 -M4 M 4.5 0.75 70 8 25 6 4.9 8 3 -M4.5 M 5 0.8 70 8 25 6 4.9 8 3 -M5 -M5 M 6 1 80 10 30 6 4.9 8 3 -M6 -M6 M 7 1 80 10 30 7 5.5 8 3 -M7 M 8 1.25 90 12 35 8 6.2 9 3 -M8 -M8 M 10 1.5 100 15 39 10 8 11 3 -M10 -M10 without neck DIN 376 ISO2/6H l1 l3 d1 uncoated TIN P js16 Lc ±1 h9 h12 l9 designation designation dn mm N 20567 205675 M 4 0.7 63 7 2.8 2.1 5 3 -M4 M 5 0.8 70 8 3.5 2.7 6 3 -M5 M 6 1 80 10 4.5 3.4 6 3 -M6 M 8 1.25 90 12 6 4.9 8 3 -M8 M 9 1.25 90 13 7 5.5 8 3 -M9 M 10 1.5 100 15 7 5.5 8 3 -M10 M 11 1.5 100 15 8 6.2 9 3 -M11 M 12 1.75 110 16 9 7 10 4 -M12 -M12 M 14 2 110 20 11 9 12 4 -M14 -M14 M 16 2 110 20 12 9 12 4 -M16 -M16 M 18 2.5 125 25 14 11 14 4 -M18 -M18 M 20 2.5 140 25 16 12 15 4 -M20 -M20 M 22 2.5 140 25 18 14.5 17 4 -M22 M 24 3 160 30 18 14.5 17 4 -M24 M 27 3 160 30 20 16 19 4 -M27 M 30 3.5 180 35 22 18 21 4 -M30 M 33 3.5 180 35 25 20 23 4 -M33 M 36 4 200 40 28 22 25 4 -M36 D 86
