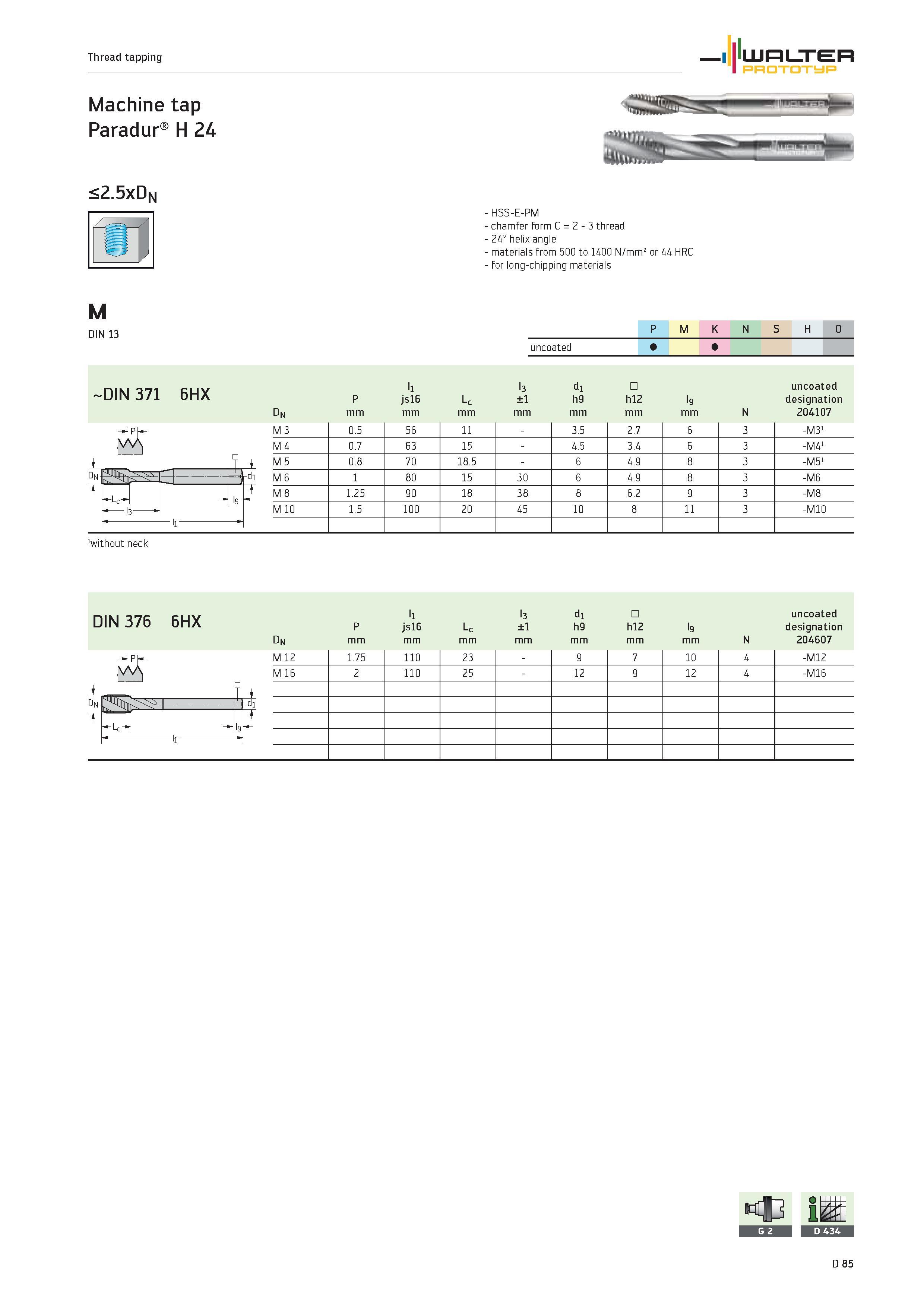

Thread tapping WALTER PROTOTYP Machine tap Paradur H 24 <2.5xDn HSS-E-PM chamfer form C 2 3 thread 24° helix angle materials from 500 to 1400 N/mm2 or 44 HRC for long-chipping materials M DIN 13 1 P M K N S H O uncoated -DIN 371 6HX P mm l1 js16 mm c mm l3 ±1 d1 h9 h12 mm l9 mm uncoated designation 204107 M 3 0.5 56 11 3.5 2.7 6 3 -M31 M 4 0.7 63 15 4.5 3.4 6 3 -M41 M 5 0.8 70 18.5 6 4.9 8 3 -M51 M 6 1 80 15 30 6 4.9 8 3 -M6 M 8 1.25 90 18 38 8 6.2 9 3 -M8 M 10 1.5 100 20 45 10 8 11 3 -M10 without neck D N mm N DIN 376 6HX P l1 js16 Lc l3 ±1 d1 h9 h12 l9 uncoated designation Dn mm N 204607 M 12 1.75 110 23 9 7 10 4 -M12 M 16 2 110 25 12 9 12 4 -M16 D 85
