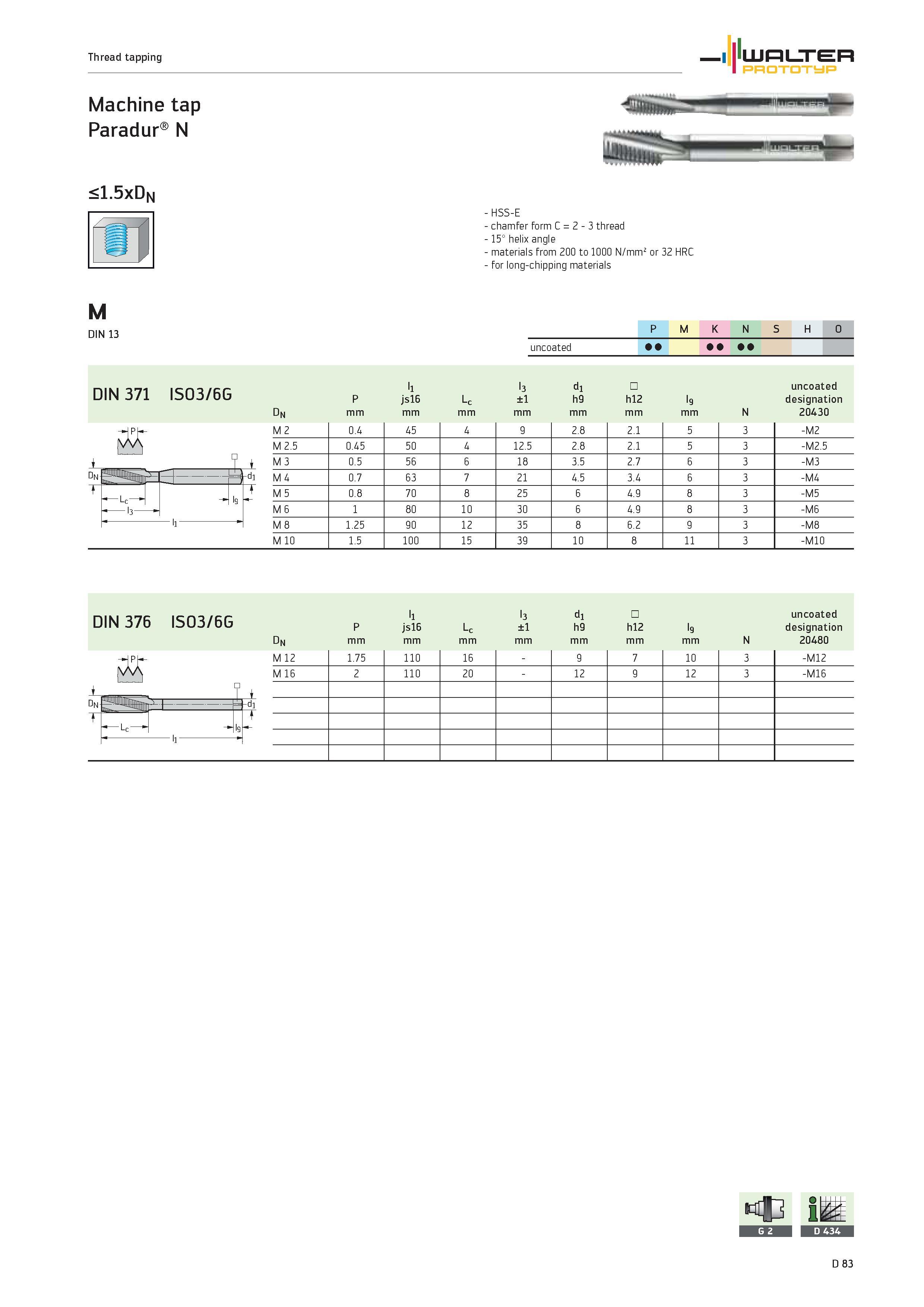

Thread tapping WALTER PROTOTYP Machine tap Paradur N <1.5xDn -HSS-E chamfer form C 2 3 thread 15° helix angle materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials M DIN 13 1 P M K N S H O uncoated DIN 371 ISO3/6G P l1 js16 Lc l3 ±1 d1 h9 h12 -9 uncoated designation Dn mm N 20430 1PJ M 2 0.4 45 4 9 2.8 2.1 5 3 -M2 M 2.5 0.45 50 4 12.5 2.8 2.1 5 3 -M2.5 M 3 0.5 56 6 18 3.5 2.7 6 3 -M3 Dn ti i lJj rdi M 4 0.7 63 7 21 4.5 3.4 6 3 -M4 mm t r “ I ls t M 5 0.8 70 8 25 6 4.9 8 3 -M5 13 M 6 1 80 10 30 6 4.9 8 3 -M6 li M 8 1.25 90 12 35 8 6.2 9 3 -M8 M 10 1.5 100 15 39 10 8 11 3 -M10 DIN 376 ISO3/6G Dn P mm l1 js16 mm Lc mm l3 ±1 mm d1 h9 mm h12 mm l9 mm N uncoated designation 20480 z M 12 1.75 110 16 9 7 10 3 -M12 M 16 2 110 20 12 9 12 3 -M16 Dn -di 1 -L T li D 83
