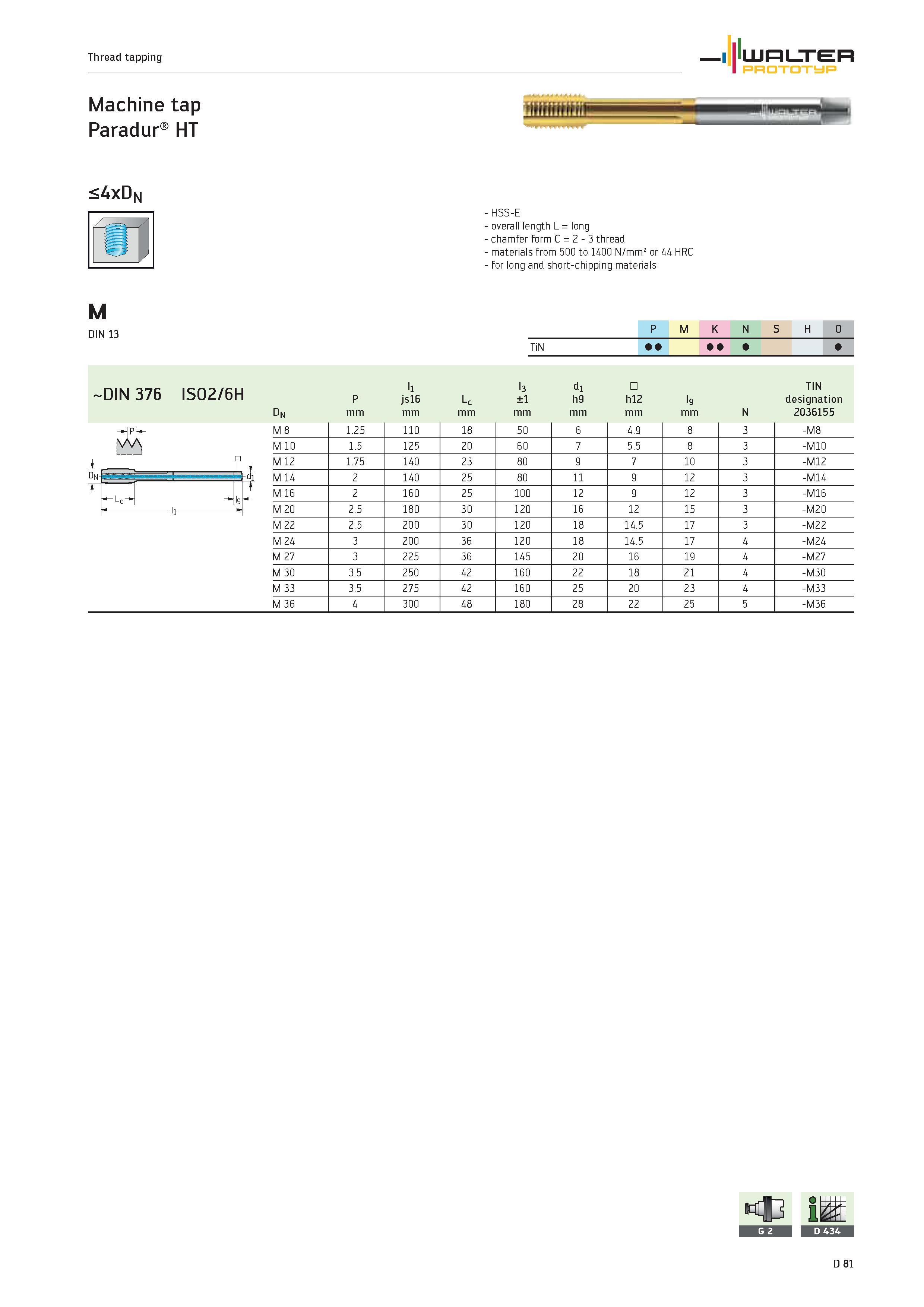

Thread tapping WALTER PROTOTYP Machine tap Paradur HT t J Hill mi lit <4xDN HSS-E overall length L long chamfer form C 2 3 thread materials from 500 to 1400 N/mm2 or 44 HRC for long and short-chipping materials M DIN 13 1 P M K N S H O TiN 1 DIN 376 ISO2/6H P ll js16 Lc l3 ±1 d1 h9 h12 l9 TIN designation dn mm N 2036155 Dn M 8 1.25 110 18 50 6 4.9 8 3 -M8 M 10 1.5 125 20 60 7 5.5 8 3 -M10 M 12 1.75 140 23 80 9 7 10 3 -M12 M 14 2 140 25 80 11 9 12 3 -M14 M 16 2 160 25 100 12 9 12 3 -M16 M 20 2.5 180 30 120 16 12 15 3 -M20 M 22 2.5 200 30 120 18 14.5 17 3 -M22 M 24 3 200 36 120 18 14.5 17 4 -M24 M 27 3 225 36 145 20 16 19 4 -M27 M 30 3.5 250 42 160 22 18 21 4 -M30 M 33 3.5 275 42 160 25 20 23 4 -M33 M 36 4 300 48 180 28 22 25 5 -M36 O b Qi D 81 L
