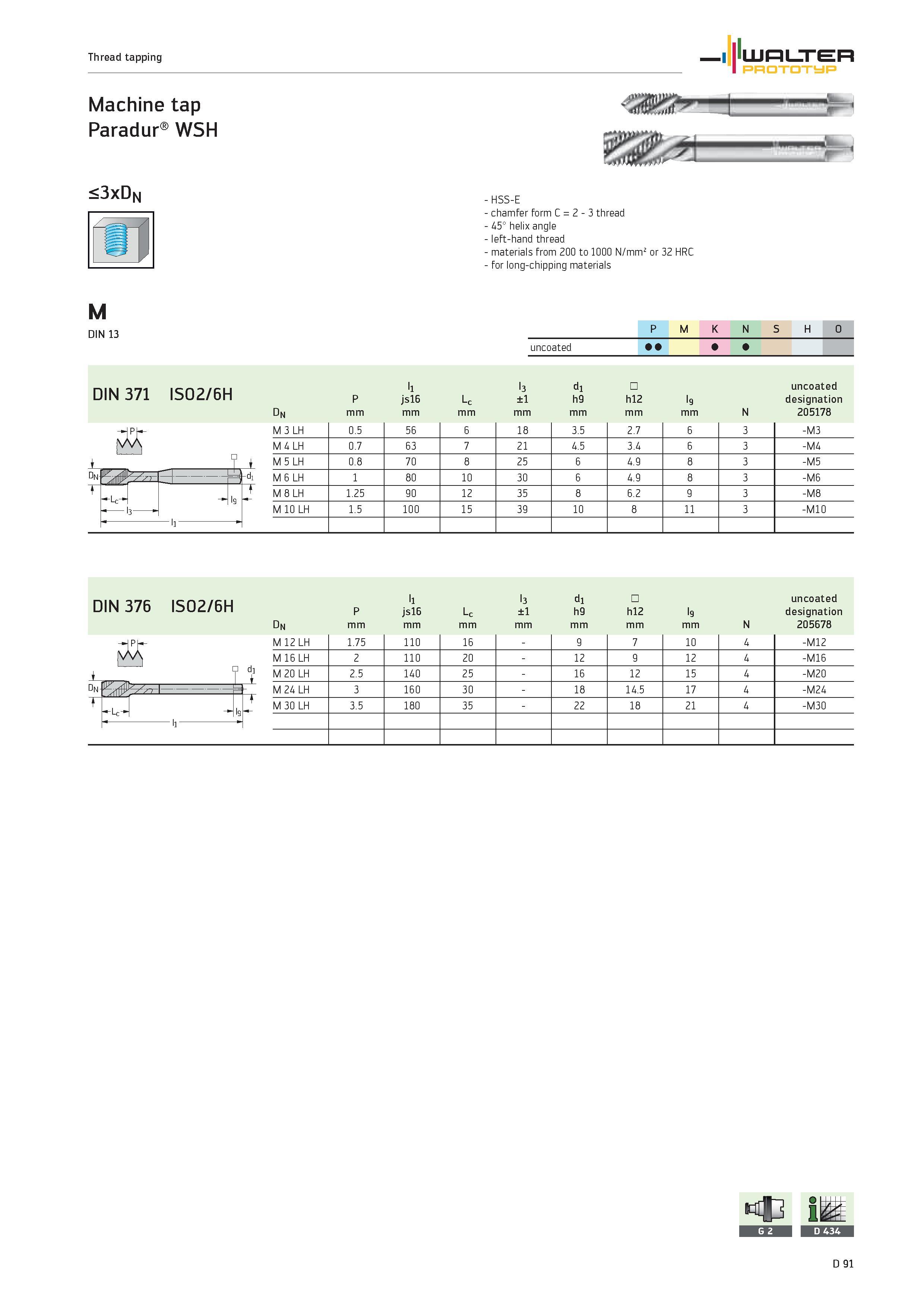

Thread tapping WALTER PROTOTYP Machine tap Paradur WSH <3xDN chamfer form C 2 3 thread 45° helix angle left-hand thread materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials M DIN 13 P M K N S H O uncoated DIN 371 ISO2/6H dn P mm ll js16 mm Lc mm I d1 h9 mm h12 mm l9 mm N uncoated designation 205178 “H p5r M 3 LH 0.5 56 6 18 3.5 2.7 6 3 -M3 'A M 4 LH 0.7 63 7 21 4.5 3.4 6 3 -M4 M 5 LH 0.8 70 8 25 6 4.9 8 3 -M5 Dn py/r FH 4i Mi M 6 LH 1 80 10 30 6 4.9 8 3 -M6 t Lc- 4 t M 8 LH 1.25 90 12 35 8 6.2 9 3 -M8 3 M 10 LH 1.5 100 15 39 10 8 11 3 -M10 ll DIN 376 ISO2/6H P l1 js16 Lc l3 ±1 d1 h9 h12 l9 uncoated designation Dn mm N 205678 M 12 LH 1.75 110 16 9 7 10 4 -M12 M 16 LH 2 110 20 12 9 12 4 -M16 M 20 LH 2.5 140 25 16 12 15 4 -M20 M 24 LH 3 160 30 18 14.5 17 4 -M24 M 30 LH 3.5 180 35 22 18 21 4 -M30 D 91
