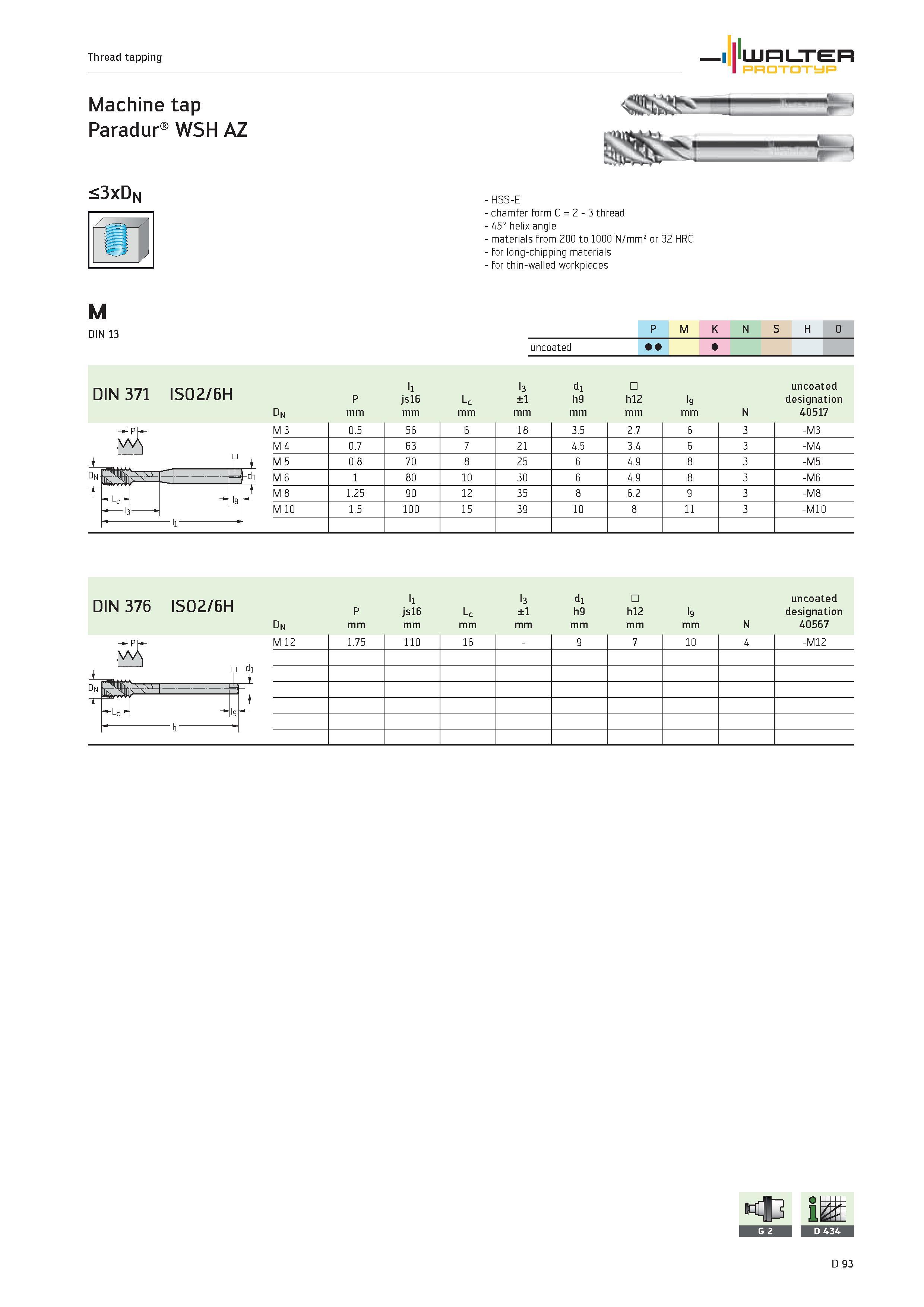

Thread tapping WALTER PROTOTYP Machine tap Paradur WSH AZ <3xDN -HSS-E chamfer form C 2 3 thread 45° helix angle materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials for thin-walled workpieces M DIN 13 P M K N S H O uncoated DIN 371 ISO2/6H dn P II l1 js16 II Lc II l3 ±1 II 19 I dhI h12 II -9 II N uncoated designation 40517 iPJ M 3 0.5 56 6 18 3.5 2.7 6 3 -M3 M 4 0.7 63 7 21 4.5 3.4 6 3 -M4 t M 5 0.8 70 8 25 6 4.9 8 3 -M5 Dn 3 hd M 6 1 80 10 30 6 4.9 8 3 -M6 T Lc- lc t M 8 1.25 90 12 35 8 6.2 9 3 -M8 M 10 1.5 100 15 39 10 8 11 3 -M10 ll DIN 376 ISO2/6H P l1 js16 Lc l3 ±1 d1 h9 h12 l9 uncoated designation Dn II II II II II II II N 40567 M 12 1.75 110 16 9 7 10 4 -M12 D 93
