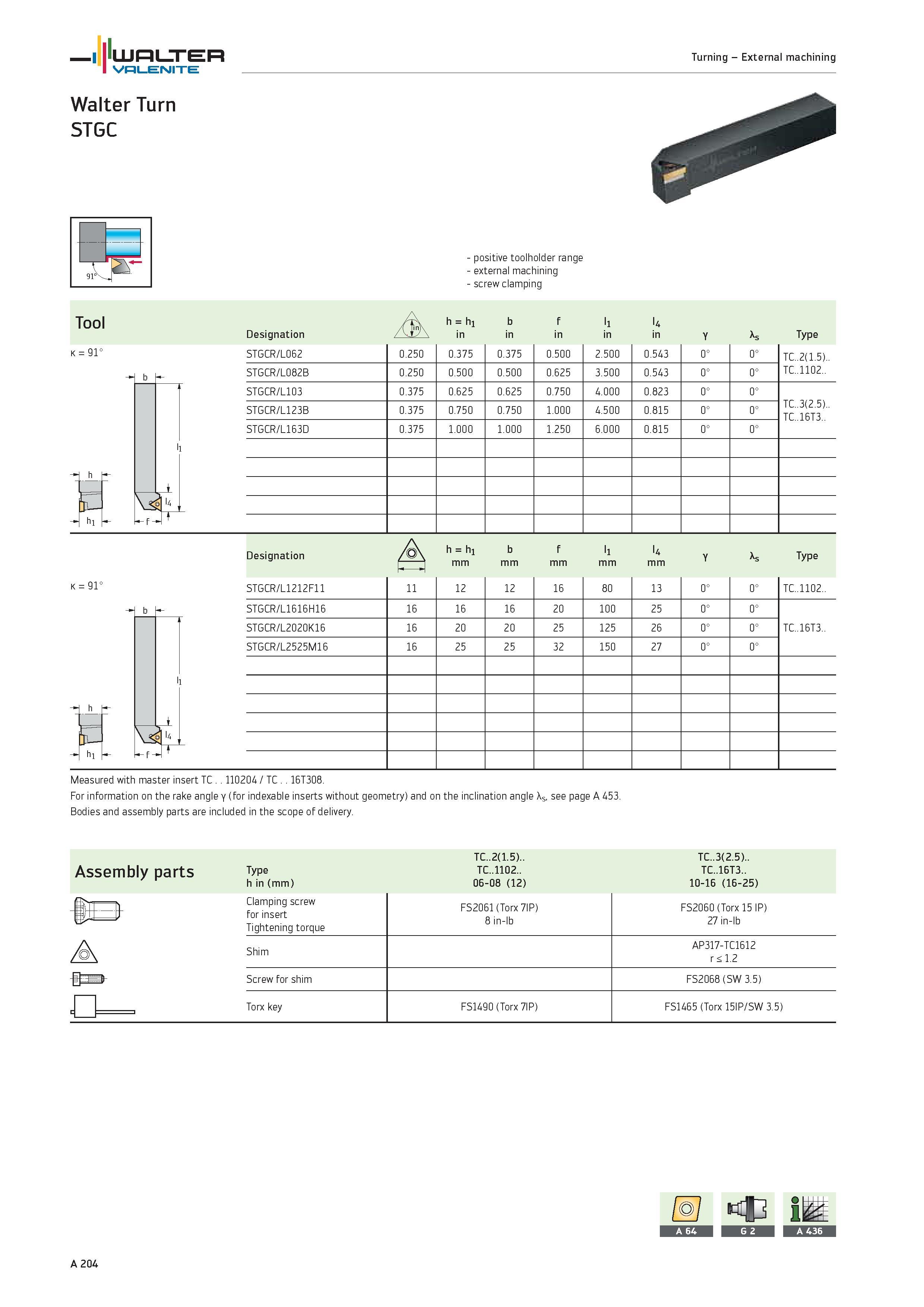

WALTER Valenite Turning External machining Walter Turn STGC positive toolholder range external machining screw clamping Tool h h1 b f l1 l4 Designation AiA in Y As Type K 91° STGCR/L062 0.250 0.375 0.375 0.500 2.500 0.543 0° 0° TC..2(1.5).. b STGCR/L082B 0.250 0.500 0.500 0.625 3.500 0.543 0° 0° TC..1102.. STGCR/L103 0.375 0.625 0.625 0.750 4.000 0.823 0° 0° STGCR/L123B 0.375 0.750 0.750 1.000 4.500 0.815 0° 0° TC..3(2.5).. TC 16T3 STGCR/L163D 0.375 1.000 1.000 1.250 6.000 0.815 0° 0° 1 “ t f- K 91° Designation h h1 mm b mm f mm l1 mm l4 mm Y As Type STGCR/L1212F11 11 12 12 16 80 13 0° 0° TC..1102.. -H b k- STGCR/L1616H16 16 16 16 20 100 25 0° 0° STGCR/L2020K16 16 20 20 25 125 26 0° 0° TC..16T3.. STGCR/L2525M16 16 25 25 32 150 27 0° 0° 1 "4 h u fcC v< -j h1 f- A T Measured with master insert TC 110204 / TC 16T308. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs. see page A 453. Bodies and assembly parts are included in the scope of delivery. TC..2(1.5).. TC..3(2.5).. Assembly parts Type tc..1102.. tc..16t3.. h in (mm) 06-08 (12) 10-16 (16-25) A 204
