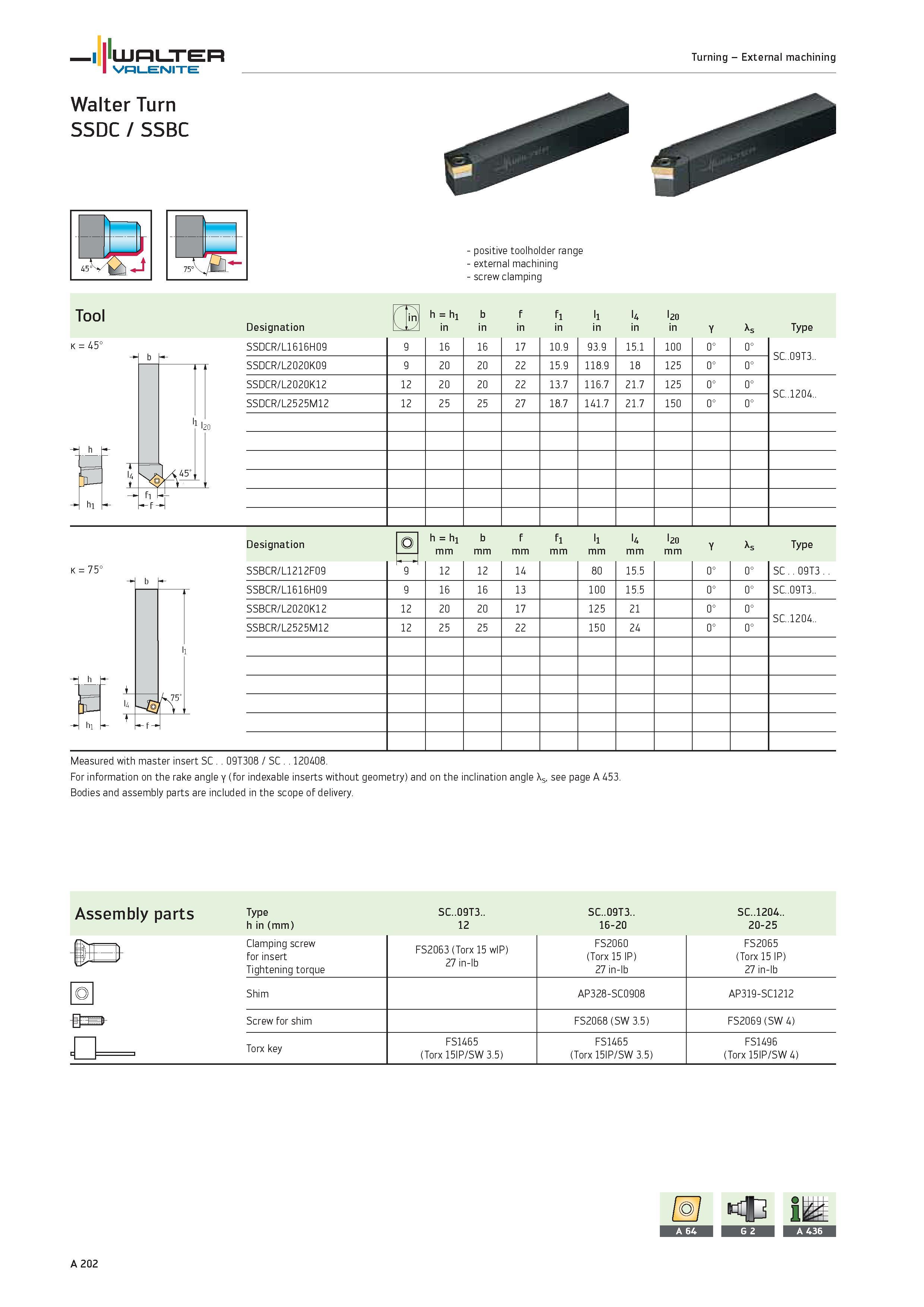

WALTER Valenite Turning External machining Walter Turn SSDC / SSBC 45VlC k 45° hi fi f positive toolholder range external machining screw clamping Tool h h1 b f fi li U l20 Designation X' in Y As Type SSDCR/L1616H09 9 16 16 17 10.9 93.9 15.1 100 0° 0° SC..09T3.. SSDCR/L2020K09 9 20 20 22 15.9 118.9 18 125 0° 0° SSDCR/L2020K12 12 20 20 22 13.7 116.7 21.7 125 0° 0° SC..1204.. SSDCR/L2525M12 12 25 25 27 18.7 141.7 21.7 150 0° 0° k 75° Designation h h1 Type SSBCR/L1212F09 9 12 12 14 80 15.5 0° 0° SC .09T3.. SSBCR/L1616H09 9 16 16 13 100 15.5 0° 0° SC..09T3.. SSBCR/L2020K12 12 20 20 17 125 21 0° 0° SC..1204.. SSBCR/L2525M12 12 25 25 22 150 24 0° 0° Measured with master insert SC 09T308 / SC 120408. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. f 20 Assembly parts 3 Type h in (mm) SC..09T3.. i2 SC..09T3.. i6-20 SC..i204.. 20-25 Clamping screw for insert Tightening torque FS2063 (Torx 15 wIP) 27 in-lb FS2060 (Torx 15 IP) 27 in-lb FS2065 (Torx 15 IP) 27 in-lb Shim AP328-SC0908 AP319-SC1212 Screw for shim FS2068 (SW 3.5) FS2069 (SW 4) Torx key FS1465 FS1465 FS1496 (Torx 15IP/SW 3.5) (Torx 15IP/SW 3.5) (Torx 15IP/SW 4) A 202
