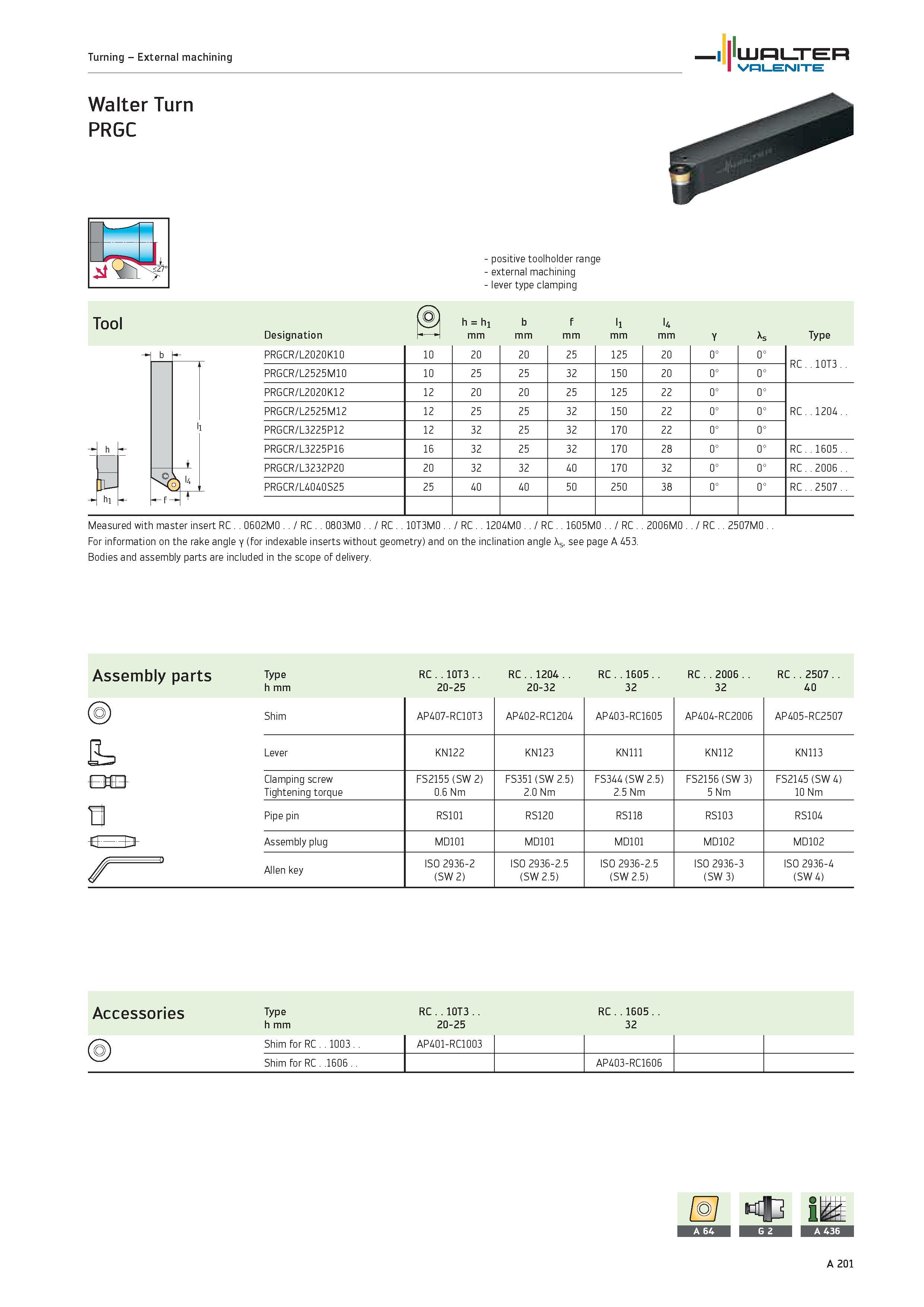

WALTER Valenite Turning External machining Walter Turn PRGC IS positive toolholder range external machining lever type clamping Tool h h1 b f l1 14 Designation r 1 mm Y As Type PRGCR/L2020K10 10 20 20 25 125 20 0° 0° RC .10T3.. PRGCR/L2525M10 10 25 25 32 150 20 0° 0° PRGCR/L2020K12 12 20 20 25 125 22 0° 0° PRGCR/L2525M12 12 25 25 32 150 22 0° 0° RC 1204 PRGCR/L3225P12 12 32 25 32 170 22 0° 0° PRGCR/L3225P16 16 32 25 32 170 28 0° 0° RC 1605 PRGCR/L3232P20 20 32 32 40 170 32 0° 0° RC 2006 PRGCR/L4040S25 25 40 40 50 250 38 0° 0° RC 2507 Measured with master insert RC 0602M0 / RC 0803M0 / RC 10T3M0 / RC 1204M0 / RC 1605M0 / RC 2006M0 / RC 2507M0 For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. b Assembly parts Type h mm RC..10T3 20-25 RC 1204 20-32 RC 1605 32 RC 2006 32 RC 2507 40 Shim AP407-RC10T3 AP402-RC1204 AP403-RC1605 AP404-RC2006 AP405-RC2507 Lever KN122 KN123 KN111 KN112 KN113 Clamping screw Tightening torque FS2155 (SW 2) 0.6 Nm FS351 (SW 2.5) 2.0 Nm FS344 (SW 2.5) 2.5 Nm FS2156 (SW 3) 5 Nm FS2145 (SW 4) 10 Nm a Pipe pin RS101 RS120 RS118 RS103 RS104 -ti- h> Assembly plug MD101 MD101 MD101 MD102 MD102 Allen key ISO 2936-2 (SW 2) ISO 2936-2.5 (SW 2.5) ISO 2936-2.5 (SW 2.5) ISO 2936-3 (SW 3) ISO 2936-4 (SW 4) Accessories Type RC..10T3 RC 1605 h mm 20-25 32 Shim for RC 1003 AP401-RC1003 Shim for RC .1606 AP403-RC1606
