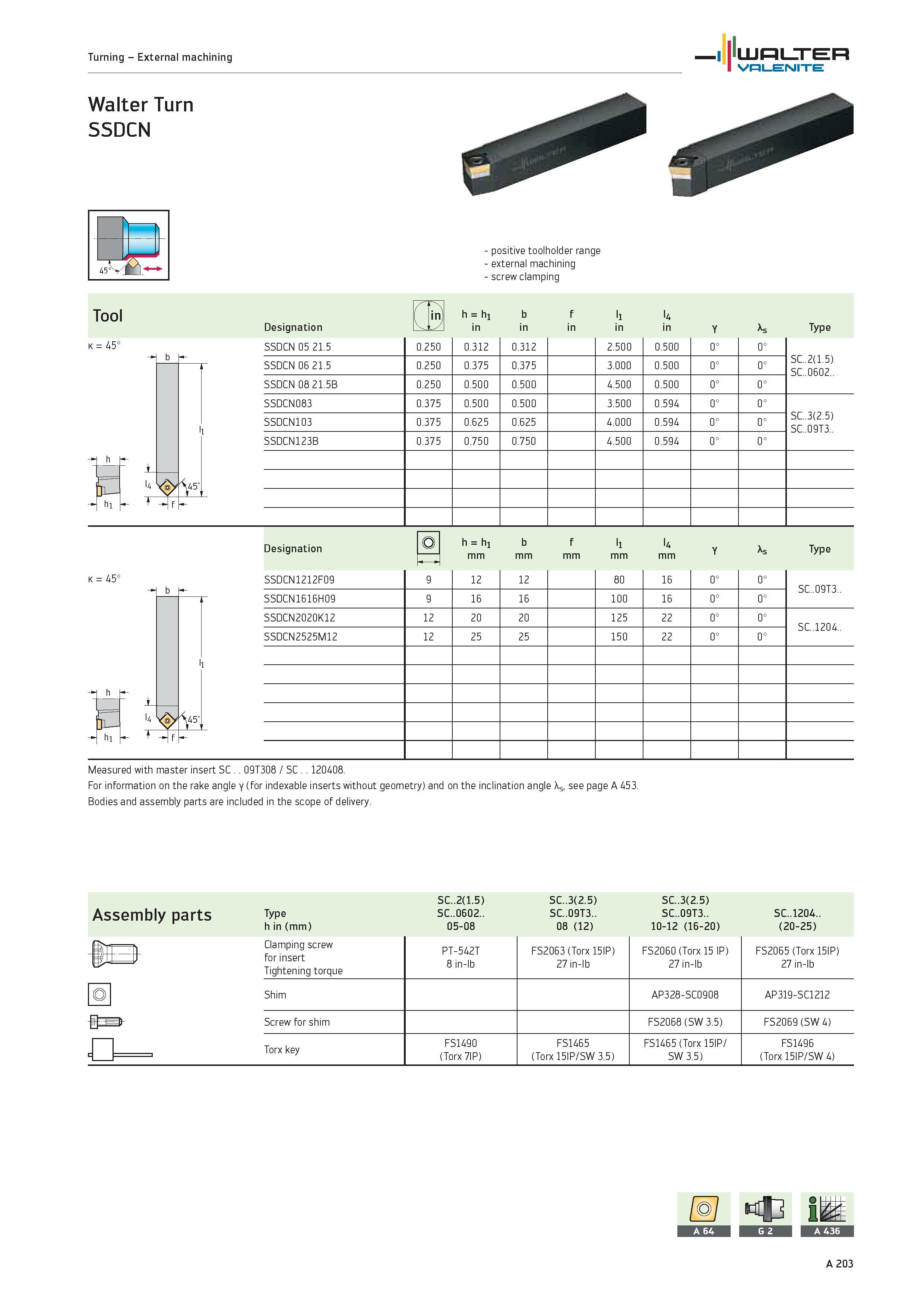

Turning External machining WALTER Valenite Walter Turn SSDCN K 45° positive toolholder range external machining screw clamping Tool ( in h hi b f li l4 Designation in Y As Type SSDCN 05 21.5 0.250 0.312 0.312 2.500 0.500 0° 0° SC..2(1.5) SC..0602.. SSDCN 06 21.5 0.250 0.375 0.375 3.000 0.500 0° 0° SSDCN 08 21.5B 0.250 0.500 0.500 4.500 0.500 0° 0° SSDCN083 0.375 0.500 0.500 3.500 0.594 0° 0° SC..3(2.5) SC..09T3.. SSDCN103 0.375 0.625 0.625 4.000 0.594 0° 0° SSDCN123B 0.375 0.750 0.750 4.500 0.594 0° 0° k 45° Designation h hj mm b mm f mm ii mm 14 mm Type SSDCN1212F09 9 12 12 80 16 0° 0° SC..09T3.. SSDCN1616H09 9 16 16 100 16 0° 0° SSDCN2020K12 12 20 20 125 22 0° 0° SC..1204.. SSDCN2525M12 12 25 25 150 22 0° 0° Measured with master insert SC 09T308 / SC 120408. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. b b
