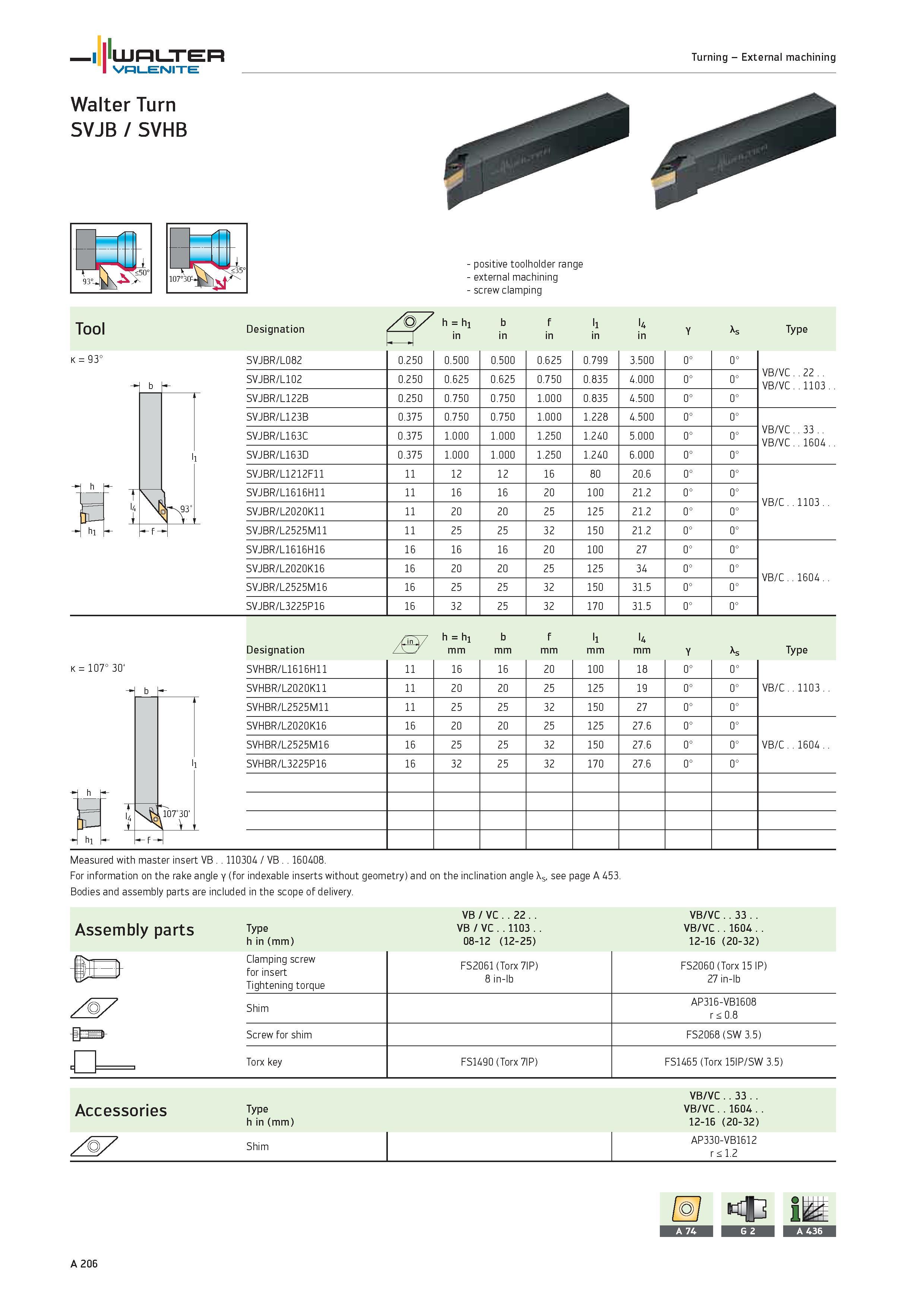

WALTER Valenite Turning External machining Walter Turn SVJB / SVHB 107°30 positive toolholder range external machining screw clamping h hi b f li I4 Designation /w mm y Type 0o 3 0 II id SVHBR/L1616H11 11 16 16 20 100 18 0° 0° VB/C..1103.. b SVHBR/L2020K11 11 20 20 25 125 19 0° 0° 0’ K /o, SVHBR/L2525M11 11 25 25 32 150 27 0° 0° SVHBR/L2020K16 16 20 20 25 125 27.6 0° 0° VB/C..1604 SVHBR/L2525M16 16 25 25 32 150 27.6 0° 0° SVHBR/L3225P16 16 32 25 32 170 27.6 0° 0° 14 ± f 1 Measured with master insert VB 110304 / VB 160408. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. VB / VC 22 VB/VC..33 Assembly parts Type VB / VC 1103 VB/VC..1604.. h in (mm) 08-12 (12-25) 12-16 (20-32) Clamping screw for insert Tightening torque Shim Screw for shim Torx key FS2061 (Torx 7IP) 8 in-lb FS1490 (Torx 7IP) FS2060 (Torx 15 IP) 27 in-lb AP316-VB1608 r < 0.8 FS2068 (SW 3.5) FS1465 (Torx 15IP/SW 3.5) VB/VC..33 Accessories Type VB/VC..1604.. h in (mm) 12-16 (20-32) Shim AP330-VB1612 r < 1.2 A 206
