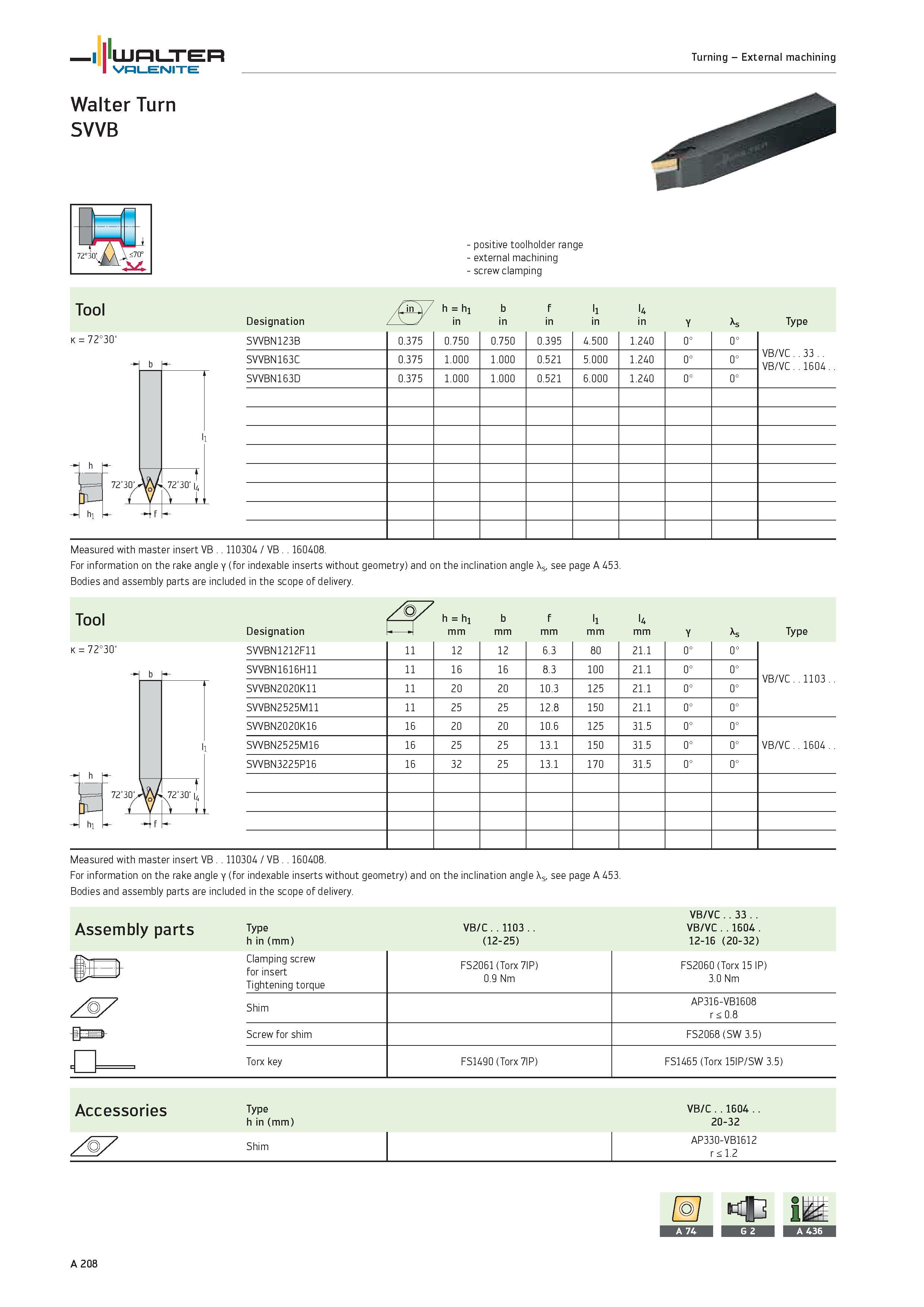

- positive toolholder range external machining screw clamping Tool /jnj/ / h h1 b f l1 l4 Designation in Y As Type k 72°30' SVVBN123B 0.375 0.750 0.750 0.395 4.500 1.240 0° 0° VB/VC..33 VB/VC..1604.. SVVBN163C 0.375 1.000 1.000 0.521 5.000 1.240 0° 0° SVVBN163D 0.375 1.000 1.000 0.521 6.000 1.240 0° 0° Measured with master insert VB 110304 / VB 160408. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. Measured with master insert VB 110304 / VB 160408. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. VB/VC 33 Assembly parts Type VB/C 1103 VB/VC 1604 h in (mm) (12-25) 12-16 (20-32) Clamping screw for insert Tightening torque Shim Screw for shim Torx key FS2061 (Torx 7IP) 0.9 Nm FS1490 (Torx 7IP) FS2060 (Torx 15 IP) 3.0 Nm AP316-VB1608 r < 0.8 FS2068 (SW 3.5) FS1465 (Torx 15IP/SW 3.5) Accessories Type VB/C 1604 h in (mm) 20-32 Shim AP330-VB1612 r < 1.2 A 208
