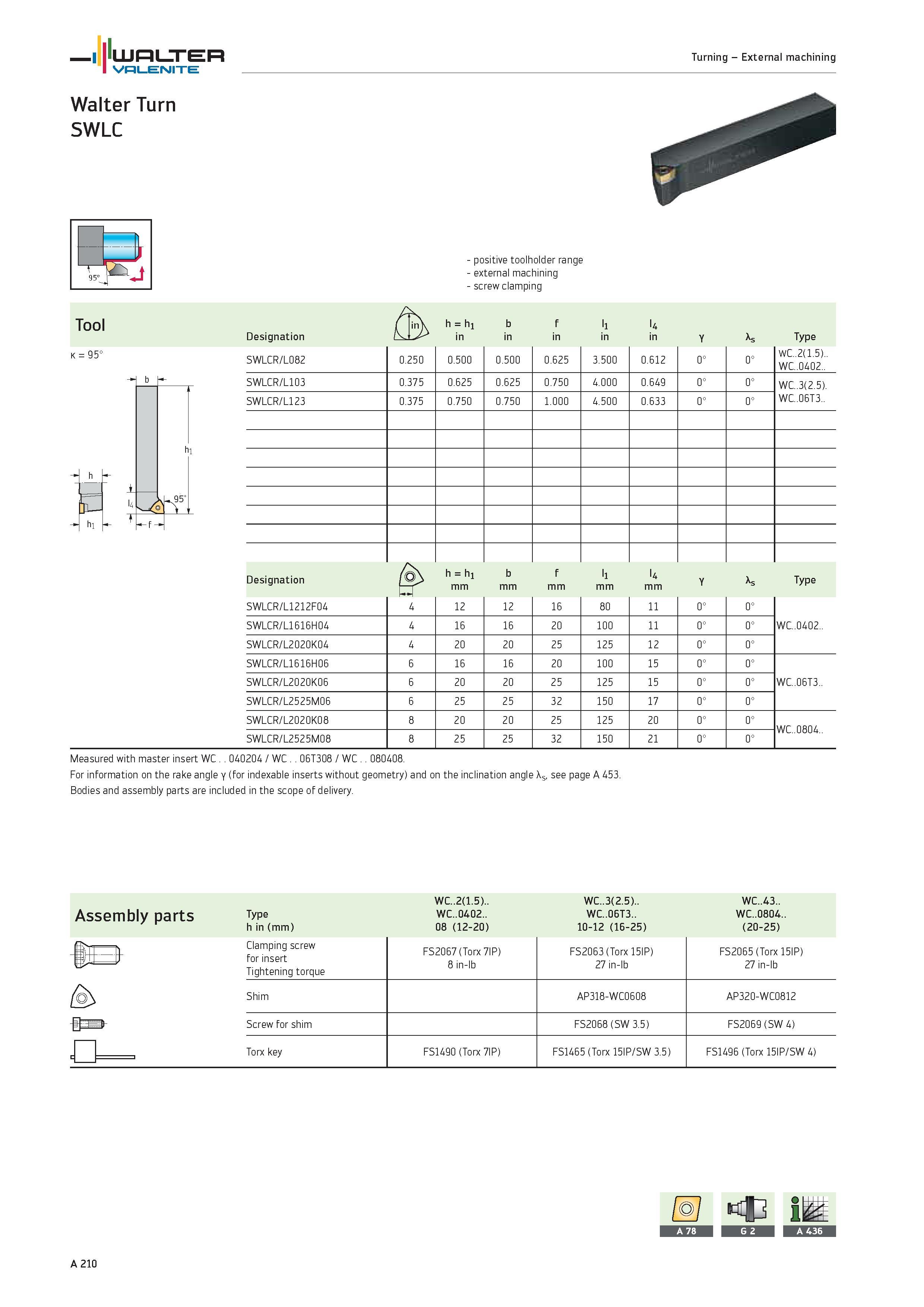

WALTER Valenite Turning External machining Walter Turn SWLC k 95° positive toolholder range external machining screw clamping Tool h h1 b f l1 l4 Designation in Y As Type SWLCR/L082 0.250 0.500 0.500 0.625 3.500 0.612 0° 0° WC..2(1.5).. WC..0402.. SWLCR/L103 0.375 0.625 0.625 0.750 4.000 0.649 0° 0° WC..3(2.5). WC..06T3.. SWLCR/L123 0.375 0.750 0.750 1.000 4.500 0.633 0° 0° Designation /O hh1 b f U as Type a < mm 1 s SWLCR/L1212F04 4 12 12 16 80 11 0° 0° WC..0402.. SWLCR/L1616H04 4 16 16 20 100 11 0° 0° SWLCR/L2020K04 4 20 20 25 125 12 0° 0° SWLCR/L1616H06 6 16 16 20 100 15 0° 0° WC..06T3.. SWLCR/L2020K06 6 20 20 25 125 15 0° 0° SWLCR/L2525M06 6 25 25 32 150 17 0° 0° SWLCR/L2020K08 8 20 20 25 125 20 0° 0° WC..0804.. SWLCR/L2525M08 8 25 25 32 150 21 0° 0° Measured with master insert WC 040204 / WC 06T308 / WC 080408. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. b WC..2(1.5).. WC..3(2.5).. WC..43.. Assembly parts Type WC..0402.. WC..06T3.. WC..0804.. h in (mm) 08 (12-20) 10-12 (16-25) (20-25) Clamping screw for insert Tightening torque FS2067 (Torx 7IP) 8 in-lb FS2063 (Torx 15IP) 27 in-lb FS2065 (Torx 15IP) 27 in-lb Shim AP318-WC0608 AP320-WC0812 Screw for shim FS2068 (SW 3.5) FS2069 (SW 4) Torx key FS1490 (Torx 7IP) FS1465 (Torx 15IP/SW 3.5) FS1496 (Torx 15IP/SW 4) A 210
