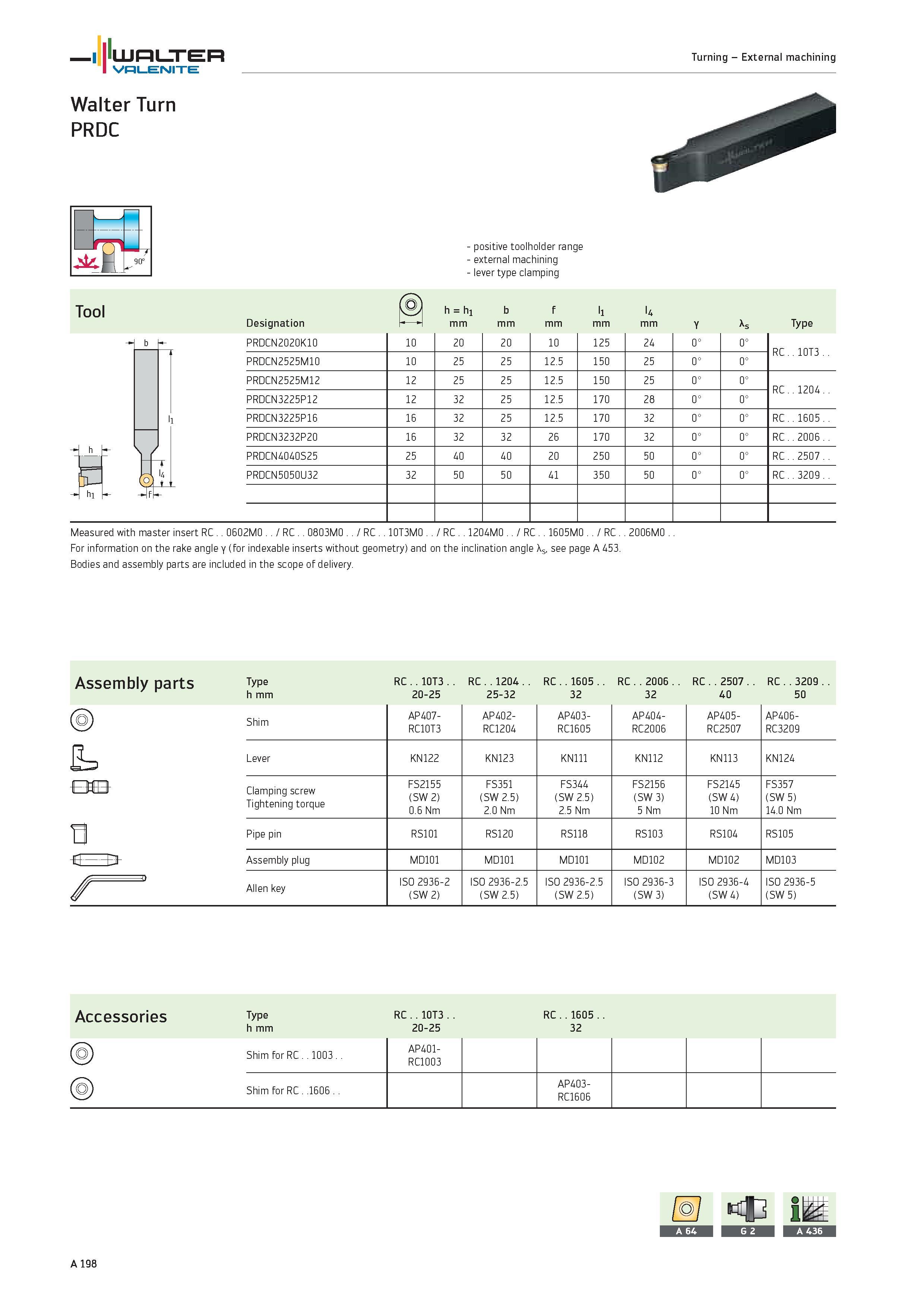

J 7 positive toolholder range external machining lever type clamping Tool Designation h h1 mm b mm f mm l1 mm l4 mm Y As Type b K PRDCN2020K10 10 20 20 10 125 24 0° 0° RC 10T3 PRDCN2525M10 10 25 25 12.5 150 25 0° 0° PRDCN2525M12 12 25 25 12.5 150 25 0° 0° RC .1204 PRDCN3225P12 12 32 25 12.5 170 28 0° 0° 1 PRDCN3225P16 16 32 25 12.5 170 32 0° 0° RC .1605 PRDCN3232P20 16 32 32 26 170 32 0° 0° RC .2006 PRDCN4040S25 25 40 40 20 250 50 0° 0° RC .2507 (O) l4 PRDCN5050U32 32 50 50 41 350 50 0° 0° RC .3209 h " -f Measured with master insert RC 0602M0 / RC 0803M0 / RC 10T3M0 / RC 1204M0 / RC 1605M0 / RC 2006M0 For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. Assembly parts Type h mm RC 10T3 20-25 RC..1204 25-32 RC 1605 32 RC 2006 32 RC 2507. 40 RC 3209 50 ( ) Shim AP407- RC10T3 AP402- RC1204 AP403- RC1605 AP404- RC2006 AP405- RC2507 AP406- RC3209 JL Lever KN122 KN123 KN111 KN112 KN113 KN124 -EM3 Clamping screw Tightening torque FS2155 (SW 2) 0.6 Nm FS351 (SW 2.5) 2.0 Nm FS344 (SW 2.5) 2.5 Nm FS2156 (SW 3) 5 Nm FS2145 (SW 4) 10 Nm FS357 (SW 5) 14.0 Nm n Pipe pin RS101 RS120 RS118 RS103 RS104 RS105 h> Assembly plug MD101 MD101 MD101 MD102 MD102 MD103 Allen key ISO 2936-2 (SW 2) ISO 2936-2.5 (SW 2.5) ISO 2936-2.5 (SW 2.5) ISO 2936-3 (SW 3) ISO 2936-4 (SW 4) ISO 2936-5 (SW 5) Accessories Type RC 10T3 RC 1605 h mm 20-25 32 ( ) Shim for RC 1003 AP401- RC1003 ( ) Shim for RC .1606 AP403- RC1606 A 198
