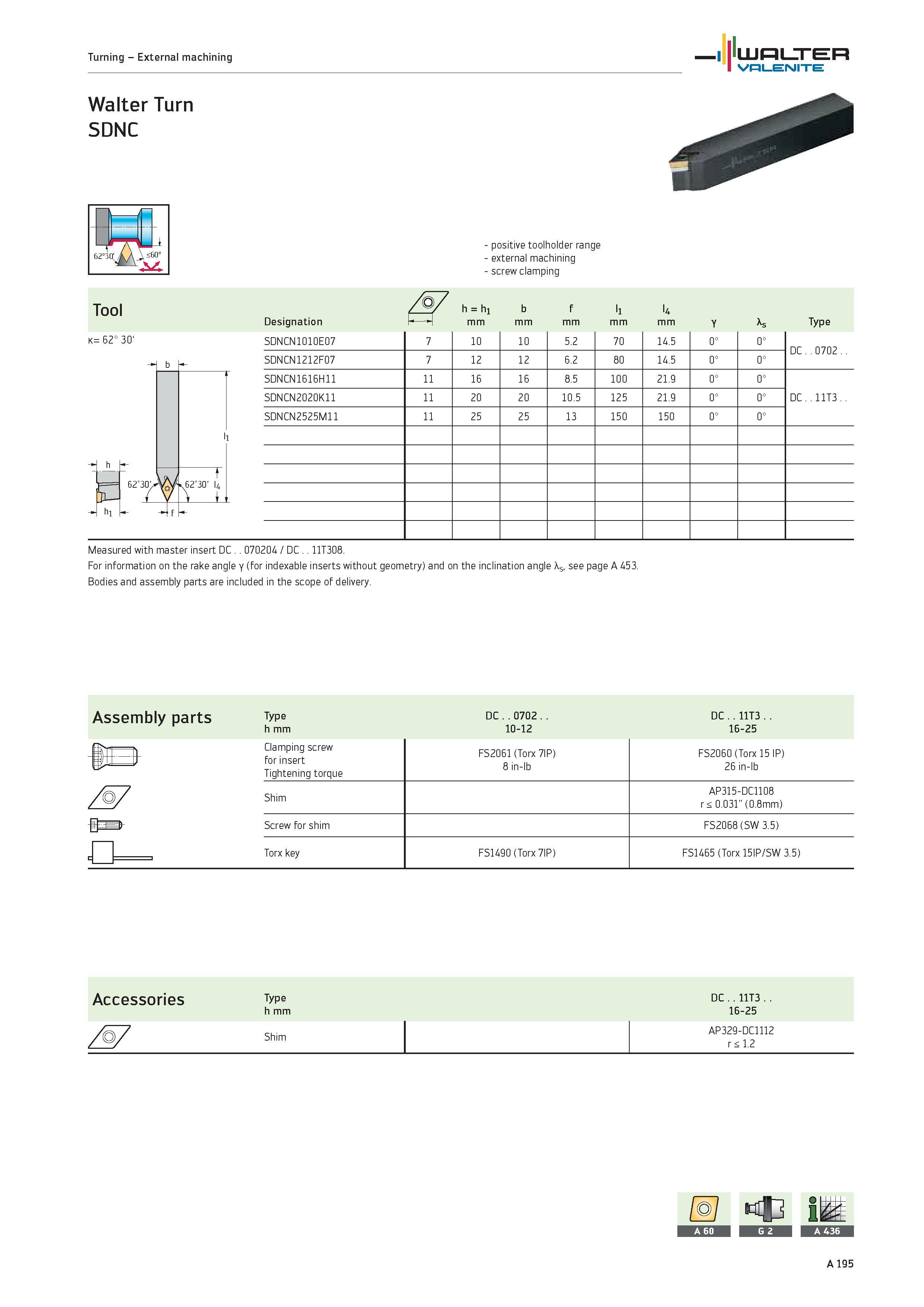

Turning External machining WALTER Valenite Walter Turn SDNC positive toolholder range external machining screw clamping Tool Designation /o7 h hi mm b mm f mm li mm U mm Y As Type K= 62° 30' SDNCN1010E07 7 10 10 5.2 70 14.5 0° 0° DC .0702.. b SDNCN1212F07 7 12 12 6.2 80 14.5 0° 0° SDNCN1616H11 11 16 16 8.5 100 21.9 0° 0° SDNCN2020K11 11 20 20 10.5 125 21.9 0° 0° DC .11T3.. SDNCN2525M11 11 25 25 13 150 150 0° 0° O' l4 Vi hi L X Measured with master insert DC 070204 / DC 11T308. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. Assembly parts Type DC 0702 DC 11T3 h mm 10-12 16-25 Accessories Type DC 11T3 h mm 16-25 ,/S7 Shim AP329-DC1112 r < 1.2
