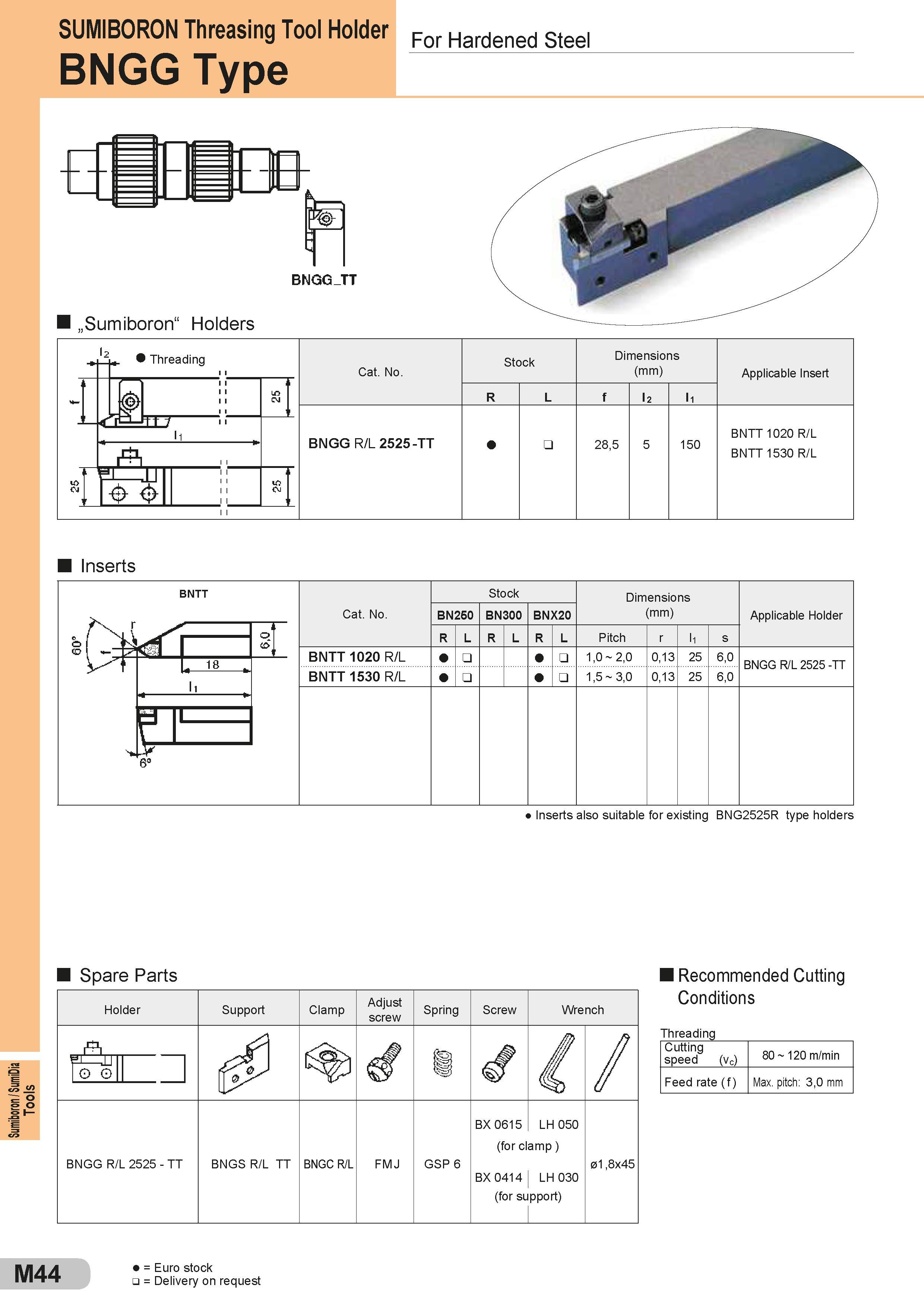

Tools SUMIB0R0N Threasing Tool Holder For Hardened Steel BNGG Type Cat. No. Stock Dimensions (mm) Размеры указаны в мм Applicable Insert R L f 12 l1 BNGG R/L 2525 -TT 28,5 5 150 BNTT 1020 R/L BNTT 1530 R/L Inserts BNTT Cat. No. Stock Dimensions (mm) Размеры указаны в мм Applicable Holder BN250 BN300 BNX20 R L R L R L Pitch r l1 s BNTT 1020 R/L 1,0 2,0 0,13 25 6,0 BNGG R/L 2525 -TT BNTT 1530 R/L 1,5 3,0 0,13 25 6,0 Inserts also suitable for existing BNG2525R type holders Spare Parts Запасные части Sumitomo и комплектующие Holder 0 0 BNGG R/L 2525 - TT Support Clamp BNGS R/L TT BNGC R/L Adjust screw FM J Spring Screw Wrench GSP 6 BX 0615 LH 050 (for clamp ) BX 0414 LH 030 (for support) 01,8x45 Recommended Cutting Conditions Threading Cutting speed (vc) 80 120 m/min Feed rate ( f ) Max. pitch: 3,0 mm M44 = Euro stock = Delivery on request
