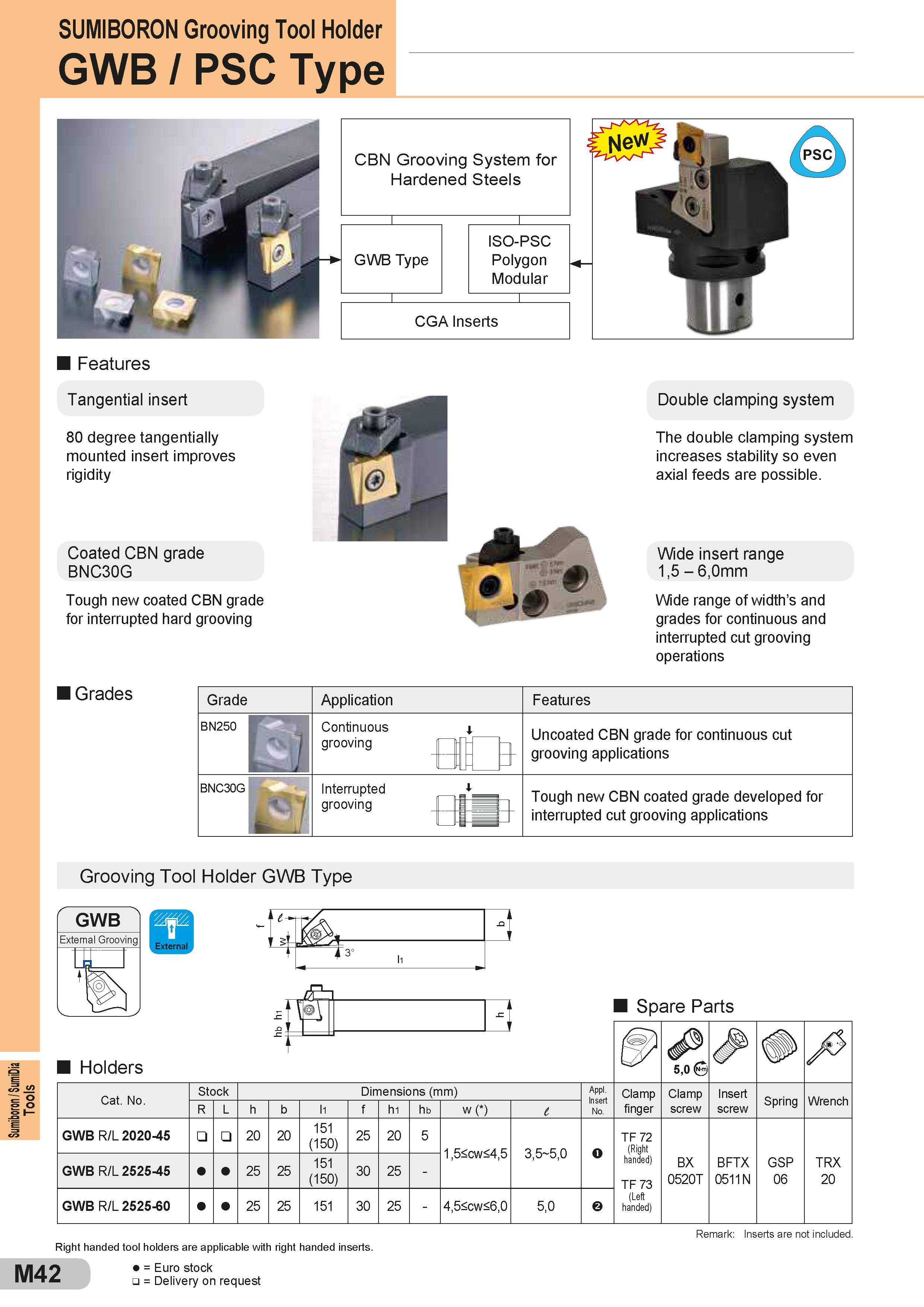

Tools SUMIBORON Grooving Tool Holder GWB / PSC Type I Features Tangential insert 80 degree tangentially mounted insert improves rigidity Coated CBN grade BNC30G Tough new coated CBN grade for interrupted hard grooving Grades Grade BN250 BNC30G CBN Grooving System for Hardened Steels x GWB Type X ISO-PSC Polygon Modular X CGA Inserts V Application Continuous grooving Interrupted grooving a : 3- 1- 4- 3 Features Double clamping system The double clamping system increases stability so even axial feeds are possible. Wide insert range 1,5 - 6,0mm Wide range of width’s and grades for continuous and interrupted cut grooving operations Uncoated CBN grade for continuous cut grooving applications Tough new CBN coated grade developed for interrupted cut grooving applications Grooving Tool Holder GWB Type Remark: Inserts are not included. Right handed tool holders are applicable with right handed inserts. IUMO = Euro stock IVI42 = Delivery on request
