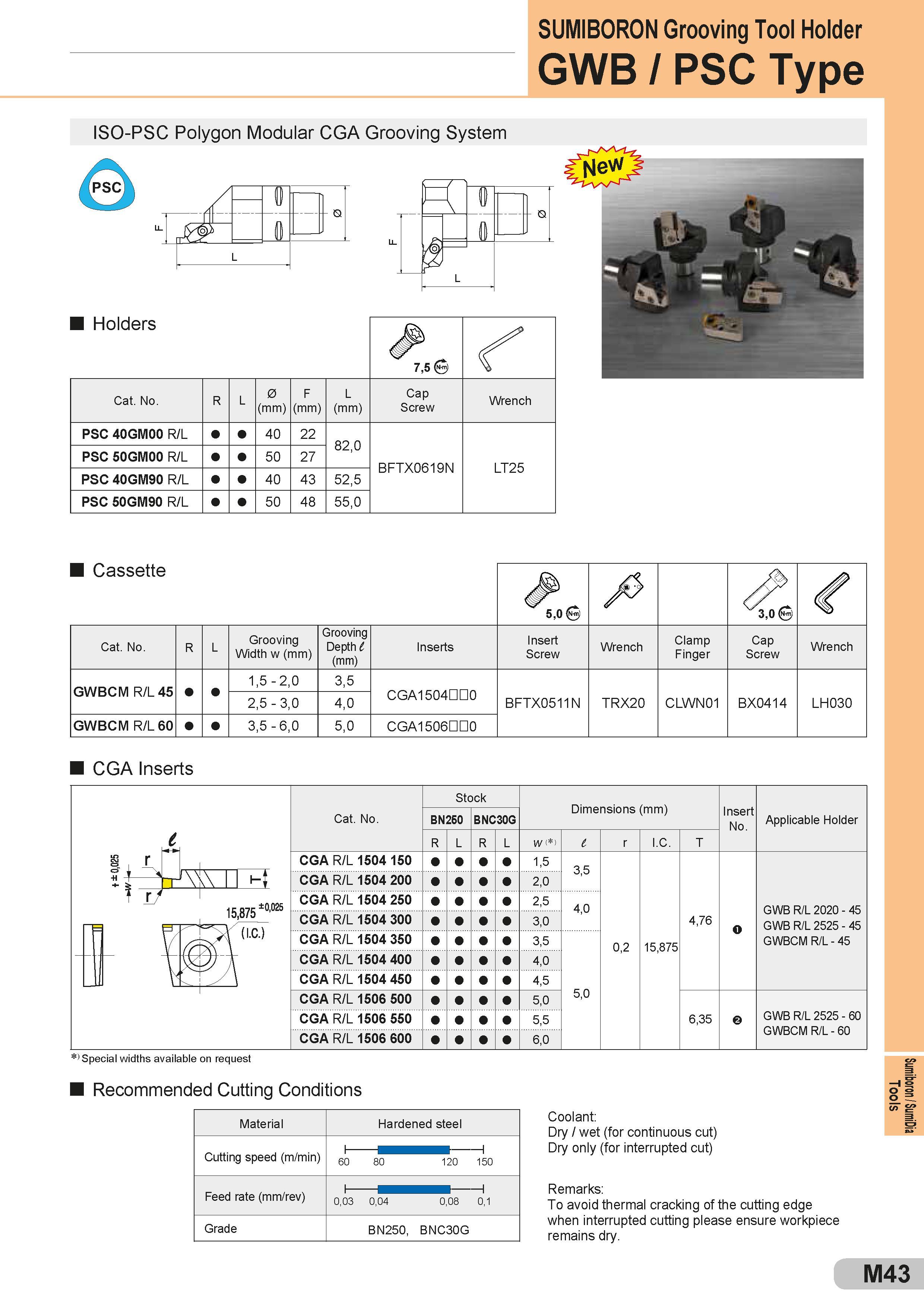

SUMIBORON Grooving Tool Holder GWB / PSC Type ISO-PSC Polygon Modular CGA Grooving System Holders 7,5 Cat. No. R L 0 (mm) F (mm) L (mm) Cap Screw Wrench PSC 40GM00 R/L 40 22 82,0 BFTX0619N LT25 PSC 50GM00 R/L 50 27 PSC 40GM90 R/L 40 43 52,5 PSC 50GM90 R/L 50 48 55,0 Cassette 5,0 (n ) A Cat. No. R L Grooving Width w (mm) Grooving Depth l (mm) Inserts Insert Screw Wrench Clamp Finger Cap Screw Wrench GWBCM R/L 45 1,5 - 2,0 3,5 CGA1504 0 BFTX0511N TRX20 CLWN01 BX0414 LH030 2,5 - 3,0 4,0 GWBCM R/L 60 3,5 - 6,0 5,0 CGA1506 0 CGA Inserts Cat. No. CGA R/L 1504 150 CGA' R/L 1504 200 CGA' r/l 1504250 CGA' R/L '1504 300 CGA' r/l '1504 350 CGA' R/L 1504 '400 CGA' r/l 1504 '450 CGA R/L 1506 500 CGA' r/l 1506' 550 CGA' R/L 1506 '600 Stock BN250 BNC30G L R L Dimensions (mm) Размеры указаны в мм w ( ) 1.5 2,0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 l 3,5 4,0 5,0 r I.C. 0,2 15,875 4,76 6,35 Insert No. Applicable Holder O GWB R/L 2020 - 45 GWB R/L 2525 - 45 GWBCM R/L - 45 GWB R/L 2525 - 60 GWBCM R/L - 60 T Special widths available on request Recommended Cutting Conditions Coolant: Dry / wet (for continuous cut) Dry only (for interrupted cut) Remarks: To avoid thermal cracking of the cutting edge when interrupted cutting please ensure workpiece remains dry. M43 Tools
