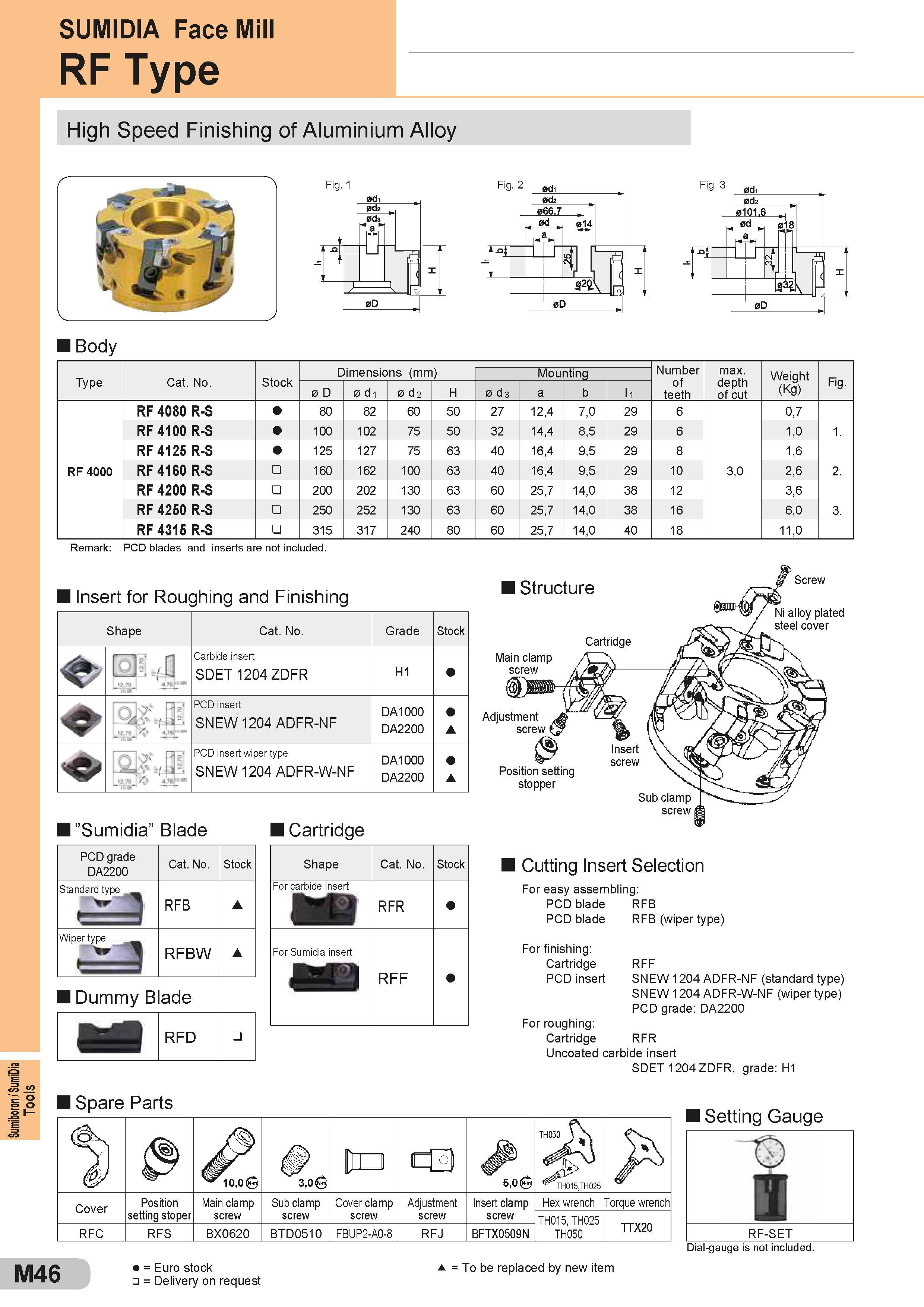

Tools SUMIDIA Face Mill RF Type High Speed Finishing of Aluminium Alloy Type Cat. No. Stock Dimensions (mm Number of teeth max. depth of cut Weight (Kg) Fig. ) Mounting 0 D 0 d 1 CN d 0 H 0 d 3 a b l1 RF 4080 R-S 80 82 60 50 27 12,4 7,0 29 6 0,7 RF 4100 R-S 100 102 75 50 32 14,4 8,5 29 6 1,0 1. RF 4125 R-S 125 127 75 63 40 16,4 9,5 29 8 1,6 RF 4000 RF 4160 R-S 160 162 100 63 40 16,4 9,5 29 10 3,0 2,6 2. RF 4200 R-S 200 202 130 63 60 25,7 14,0 38 12 3,6 RF 4250 R-S 250 252 130 63 60 25,7 14,0 38 16 6,0 3. RF 4315 R-S 315 317 240 80 60 25,7 14,0 40 18 11,0 Remark: PCD blades and inserts are not included. Insert for Roughing and Finishing Shape Cat. No. Grade Stock 4 Carbide insert SDET 1204ZDFR H1 PCD insert SNEW 1204 ADFR-NF DA1000 DA2200 < IHNI PCD insert wiper type SNEW 1204 ADFR-W-NF DA1000 DA2200 < l”Sumidia” Blade PCD grade DA2200 Cat. No. Stock Standard type 1 RFB Wiper type RFBW Dummy Blade RFD Cartridge Shape Cat. No. Stock For carbide insert RFR For Sumidia insert lay RFF Main clamp screw Adjustment screw Position setting stopper Cutting Insert Selection For easy assembling: PCD blade RFB PCD blade RFB (wiper type) For finishing: Cartridge PCD insert For roughing: Cartridge Ni alloy plated steel cover RFF SNEW 1204 ADFR-NF (standard type) SNEW 1204 ADFR-W-NF (wiper type) PCD grade: DA2200 RFR Uncoated carbide insert SDET 1204 ZDFR, grade: H1 Spare Parts Запасные части Sumitomo и комплектующие 1) 3,0 Co) 50(9 Cover Position setting stoper Main clamp screw Sub clamp screw Cover clamp screw Adjustment screw Insert clamp screw RFC RFS BX0620 BTD0510 FBUP2-A0-8 RFJ BFTX0509N TH050 \ \ 10s TH015,TH025 Hex wrench Torque wrench TH015, TH025 TH050 TTX20 Setting Gauge 1 RF-SET M46 = Euro stock = Delivery on request = To be replaced by new item Dial-gauge is not included.
