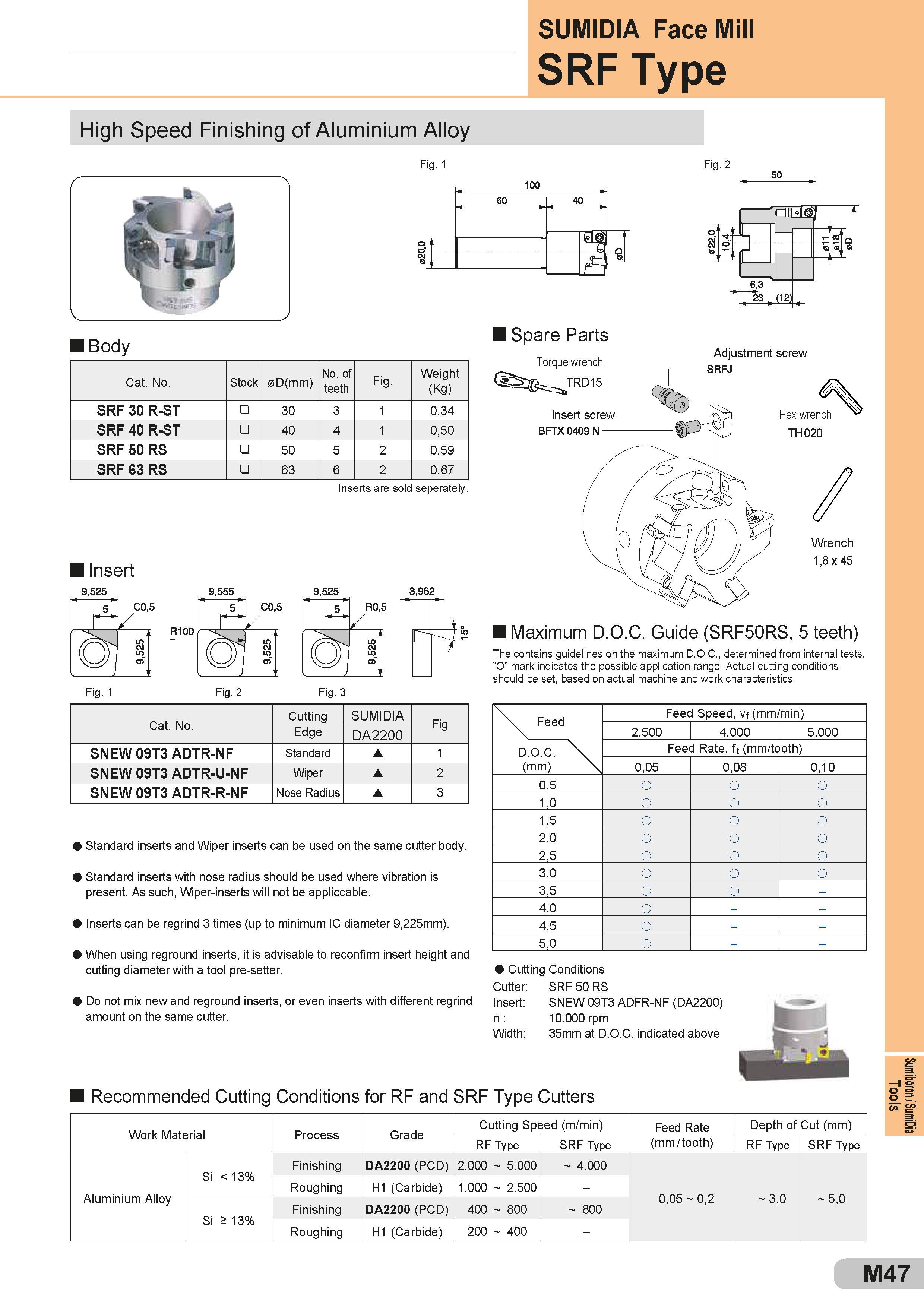

SUMIDIA Face Mill SRF Type High Speed Finishing of Aluminium Alloy Fig. 1 Body Cat. No. Stock 0D(mm) No. of teeth Fig. Weight (Kg) SRF 30 R-ST 30 3 1 0,34 SRF 40 R-ST 40 4 1 0,50 SRF 50 RS 50 5 2 0,59 SRF 63 RS 63 6 2 0,67 Inserts are sold seperately. Insert ),525 9,555 9,525 3,962 Cat. No. Cutting Edge SUMIDIA Fig DA2200 SNEW 09T3 ADTR-NF Standard 1 SNEW 09T3 ADTR-U-NF Wiper 2 SNEW 09T3 ADTR-R-NF Nose Radius 3 Fig. 2 60 40 ¥1 -4 -i t- Spare Parts Запасные части Sumitomo и комплектующие Hex wrench TH 020 Wrench 1,8 x 45 Maximum D.O.C. Guide (SRF50RS, 5 teeth) The contains guidelines on the maximum D.O.C., determined from internal tests. ”O” mark indicates the possible application range. Actual cutting conditions should be set, based on actual machine and work characteristics. Standard inserts and Wiper inserts can be used on the same cutter body. Standard inserts with nose radius should be used where vibration is present. As such, Wiper-inserts will not be appliccable. Inserts can be regrind 3 times (up to minimum IC diameter 9,225mm). When using reground inserts, it is advisable to reconfirm insert height and cutting diameter with a tool pre-setter. Do not mix new and reground inserts, or even inserts with different regrind amount on the same cutter. Cutting Conditions Cutter: SRF 50 RS Insert: SNEW 09T3 ADFR-NF (DA2200) n : 10.000 rpm Width: 35mm at D.O.C. indicated above Recommended Cutting Conditions for RF and SRF Type Cutters Work Material Process Grade Cutting Speed (m/min) Feed Rate (mm /tooth) Depth of Cut (mm) RF Type SRF Type RF Type SRF Type Aluminium Alloy Si < 13% Finishing DA2200 (PCD) 2.000 5.000 4.000 0,05 0,2 3,0 5,0 Roughing H1 (Carbide) 1.000 2.500 - Si > 13% Finishing DA2200 (PCD) 400 800 800 Roughing H1 (Carbide) 200 400 - M47 Tools
