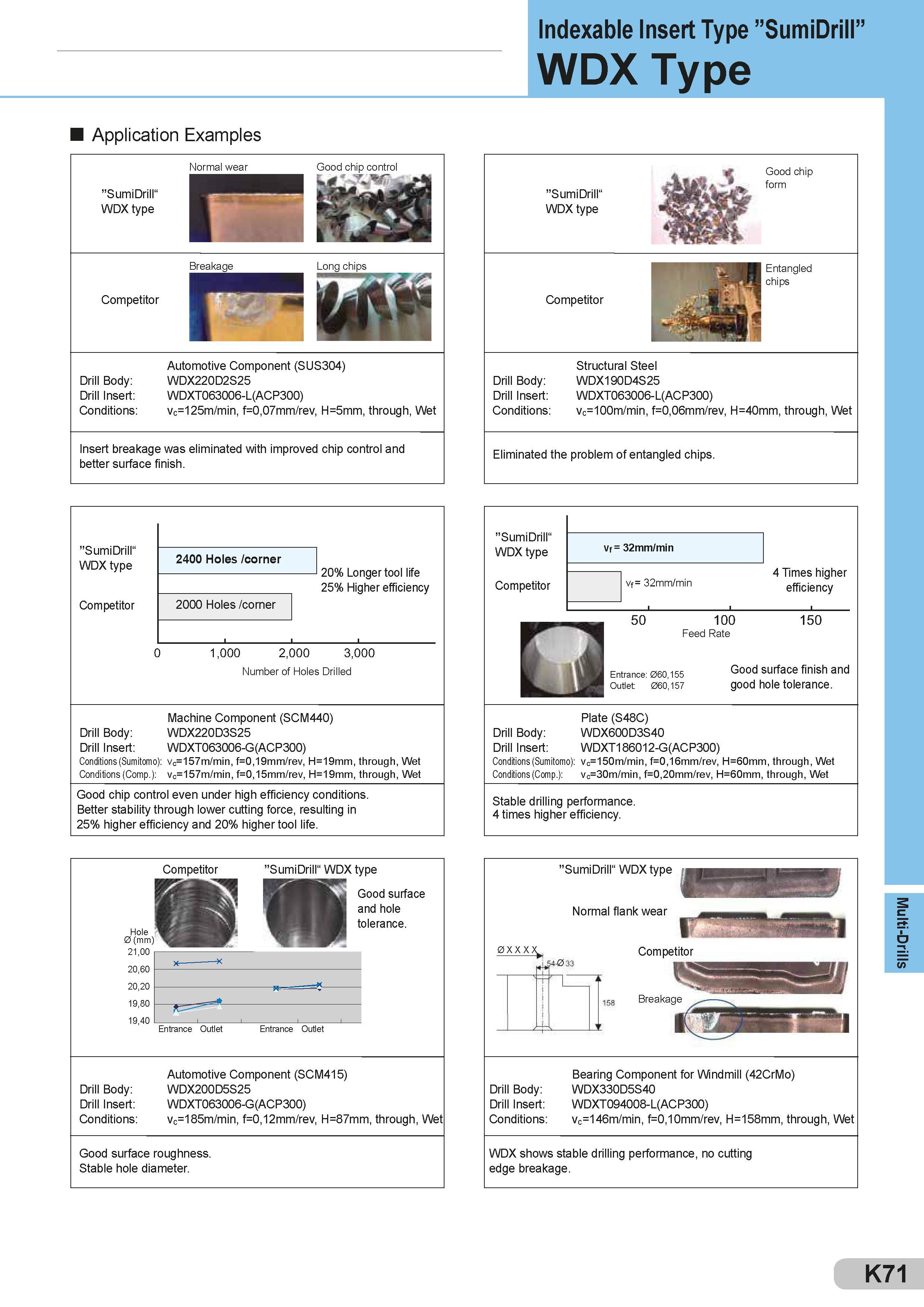

Application Examples Indexable Insert Type ”SumiDrill” WDX Type Normal wear Good chip control Breakage Long chips Automotive Component (SUS304) Drill Body: WDX220D2S25 Drill Insert: WDXT063006-L(ACP300) Conditions: vc=125m/min, f=0,07mm/rev, H=5mm, through, Wet Insert breakage was eliminated with improved chip control and better surface finish. ”SumiDrill“ WDX type i' Good chip Competitor tt Entangled . H chips Structural Steel Drill Body: WDX190D4S25 Drill Insert: WDXT063006-L(ACP300) Conditions: vc=100m/min, f=0,06mm/rev, H=40mm, through, Wet Eliminated the problem of entangled chips. ”SumiDrill“ WDX type 2400 Holes /corner 20% Longer tool life 25% Higher efficiency Competitor 2000 Holes /corner 0 1,000 2,000 3,000 Number of Holes Drilled Machine Component (SCM440) Drill Body: WDX220D3S25 Drill Insert: WDXT063006-G(ACP300) Conditions (Sumitomo): vc=157m/min, f=0,19mm/rev, H=19mm, through, Wet Conditions (Comp.): vc=157m/min, f=0,15mm/rev, H=19mm, through, Wet Good chip control even under high efficiency conditions. Better stability through lower cutting force, resulting in 25% higher efficiency and 20% higher tool life. ”SumiDrill“ WDX type Competitor vf = 32mm/min vf = 32mm/min 4 Times higher efficiency 50 100 Feed Rate 150 Entrance: 060,155 Outlet: 060,157 Good surface finish and good hole tolerance. Plate (S48C) Drill Body: WDX600D3S40 Drill Insert: WDXT186012-G(ACP300) Conditions (Sumitomo): vc=150m/min, f=0,16mm/rev, H=60mm, through, Wet Conditions (Comp.): vc=30m/min, f=0,20mm/rev, H=60mm, through, Wet Stable drilling performance. 4 times higher efficiency. Competitor ”SumiDrill“ WDX type Entrance Outlet Entrance Outlet Automotive Component (SCM415) Drill Body: WDX200D5S25 Drill Insert: WDXT063006-G(ACP300) Conditions: v<;=185m/min, f=0,12mm/rev, H=87mm, through, Wet Good surface roughness. Stable hole diameter. Bearing Component for Windmill (42CrMo) Drill Body: WDX330D5S40 Drill Insert: WDXT094008-L(ACP300) Conditions: vc=146m/min, f=0,10mm/rev, H=158mm, through, Wet WDX shows stable drilling performance, no cutting edge breakage. K71 Multi-Drills
