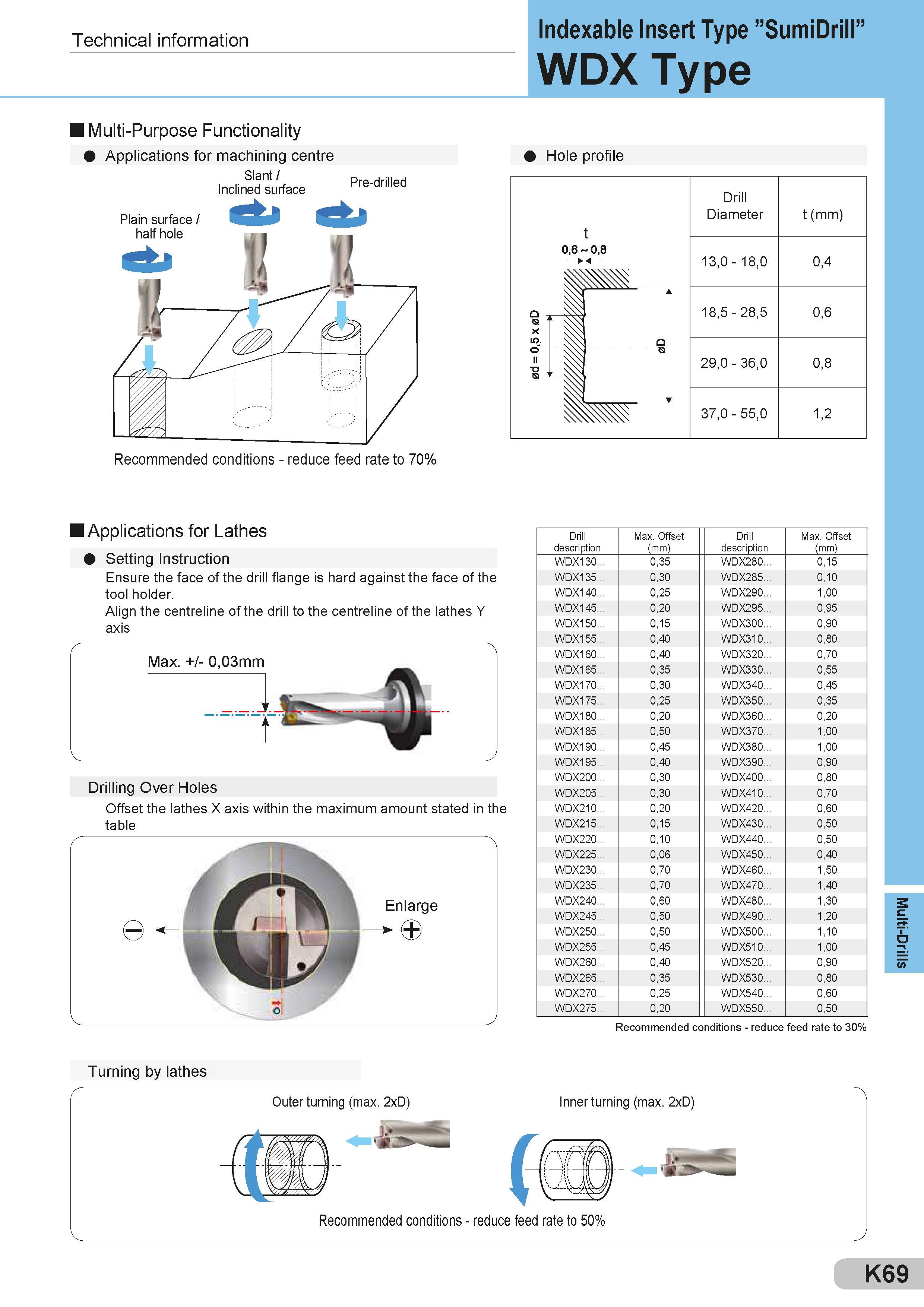

Technical information Indexable Insert Type ”SumiDrill” WDX Type I Multi-Purpose Functionality Applications for machining centre Slant / Inclined surface Pre-drilled Plain surface / half hole Recommended conditions - reduce feed rate to 70% Hole profile t 0,6 -0,8 Drill Diameter t (mm) 13,0 - 18,0 0,4 18,5 - 28,5 0,6 29,0 - 36,0 0,8 37,0 - 55,0 1,2 I Applications for Lathes Setting Instruction Ensure the face of the drill flange is hard against the face of the tool holder. Align the centreline of the drill to the centreline of the lathes Y axis Drilling Over Holes Offset the lathes X axis within the maximum amount stated in the table Enlarge a Turning by lathes Drill description Max. Offset (mm) Drill description Max. Offset (mm) WDX130... 0,35 WDX280... 0,15 WDX135... 0,30 WDX285... 0,10 WDX140... 0,25 WDX290... 1,00 WDX145... 0,20 WDX295... 0,95 WDX150... 0,15 WDX300... 0,90 WDX155... 0,40 WDX310... 0,80 WDX160... 0,40 WDX320... 0,70 WDX165... 0,35 WDX330... 0,55 WDX170... 0,30 WDX340... 0,45 WDX175... 0,25 WDX350... 0,35 WDX180... 0,20 WDX360... 0,20 WDX185... 0,50 WDX370... 1,00 WDX190... 0,45 WDX380... 1,00 WDX195... 0,40 WDX390... 0,90 WDX200... 0,30 WDX400... 0,80 WDX205... 0,30 WDX410... 0,70 WDX210... 0,20 WDX420... 0,60 WDX215... 0,15 WDX430... 0,50 WDX220... 0,10 WDX440... 0,50 WDX225... 0,06 WDX450... 0,40 WDX230... 0,70 WDX460... 1,50 WDX235... 0,70 WDX470... 1,40 WDX240... 0,60 WDX480... 1,30 WDX245... 0,50 WDX490... 1,20 WDX250... 0,50 WDX500... 1,10 WDX255... 0,45 WDX510... 1,00 WDX260... 0,40 WDX520... 0,90 WDX265... 0,35 WDX530... 0,80 WDX270... 0,25 WDX540... 0,60 WDX275... 0,20 WDX550... 0,50 Recommended conditions - reduce feed rate to 30% K69 Multi-Drills
