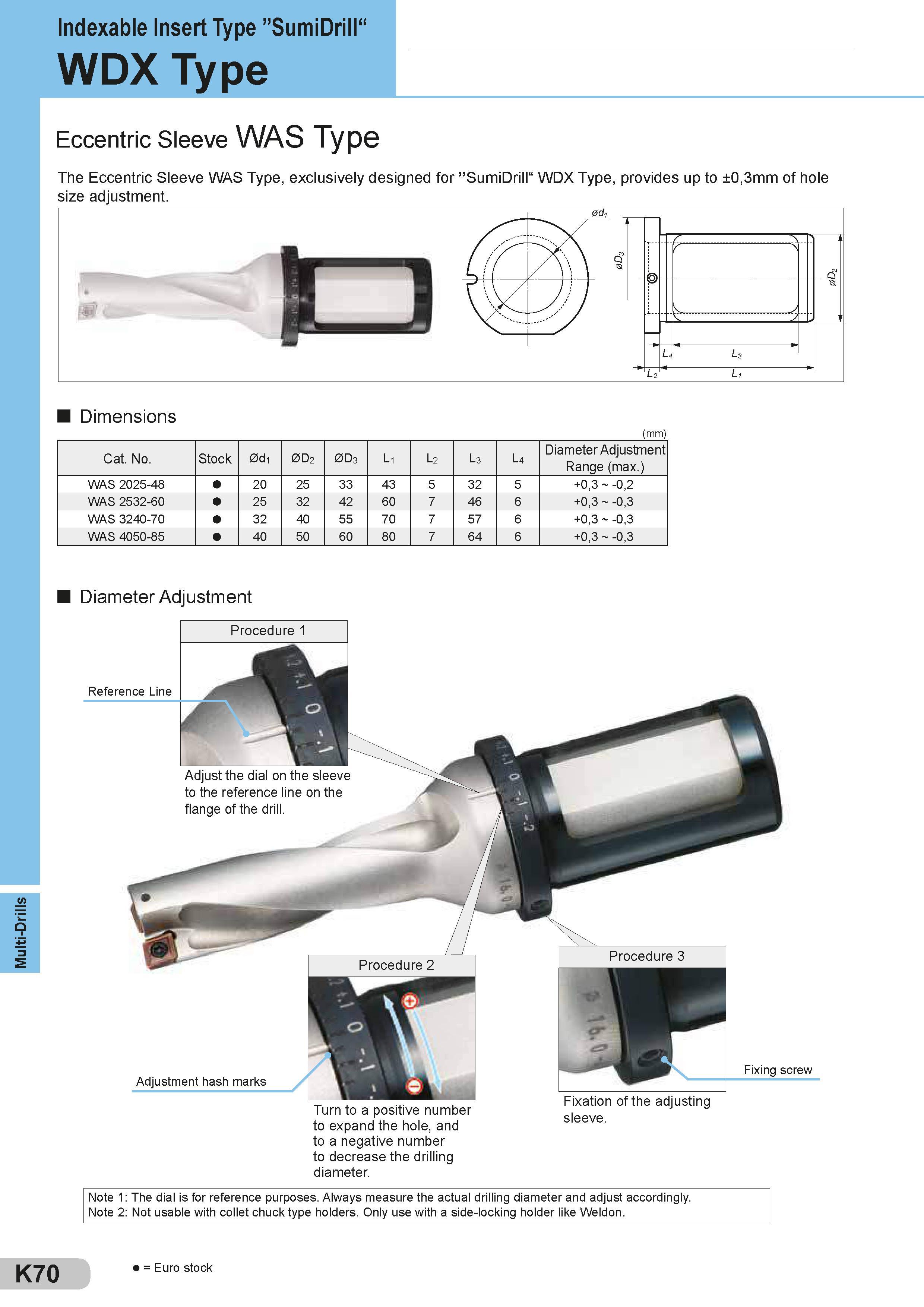

Multi-Drills Indexable Insert Type ”SumiDriN“ WDX Type Eccentric Sleeve WAS Type The Eccentric Sleeve WAS Type, exclusively designed for ”SumiDrill“ WDX Type, provides up to ±0,3mm of hole size adjustment. Dimensions (mm) Размеры указаны в мм / \ di na v J L4 L3 L2 Li Cat. No. Stock 0d1 0D2 0D3 L1 L2 L3 L4 Diameter Adjustment Range (max.) WAS 2025-48 20 25 33 43 5 32 5 +0,3 -0,2 WAS 2532-60 25 32 42 60 7 46 6 +0,3 -0,3 WAS 3240-70 32 40 55 70 7 57 6 +0,3 -0,3 WAS 4050-85 40 50 60 80 7 64 6 +0,3 -0,3 Diameter Adjustment Procedure 1 to expand the hole, and to a negative number to decrease the drilling diameter. Note 1: The dial is for reference purposes. Always measure the actual drilling diameter and adjust accordingly. Note 2: Not usable with collet chuck type holders. Only use with a side-locking holder like Weldon. K70 = Euro stock
