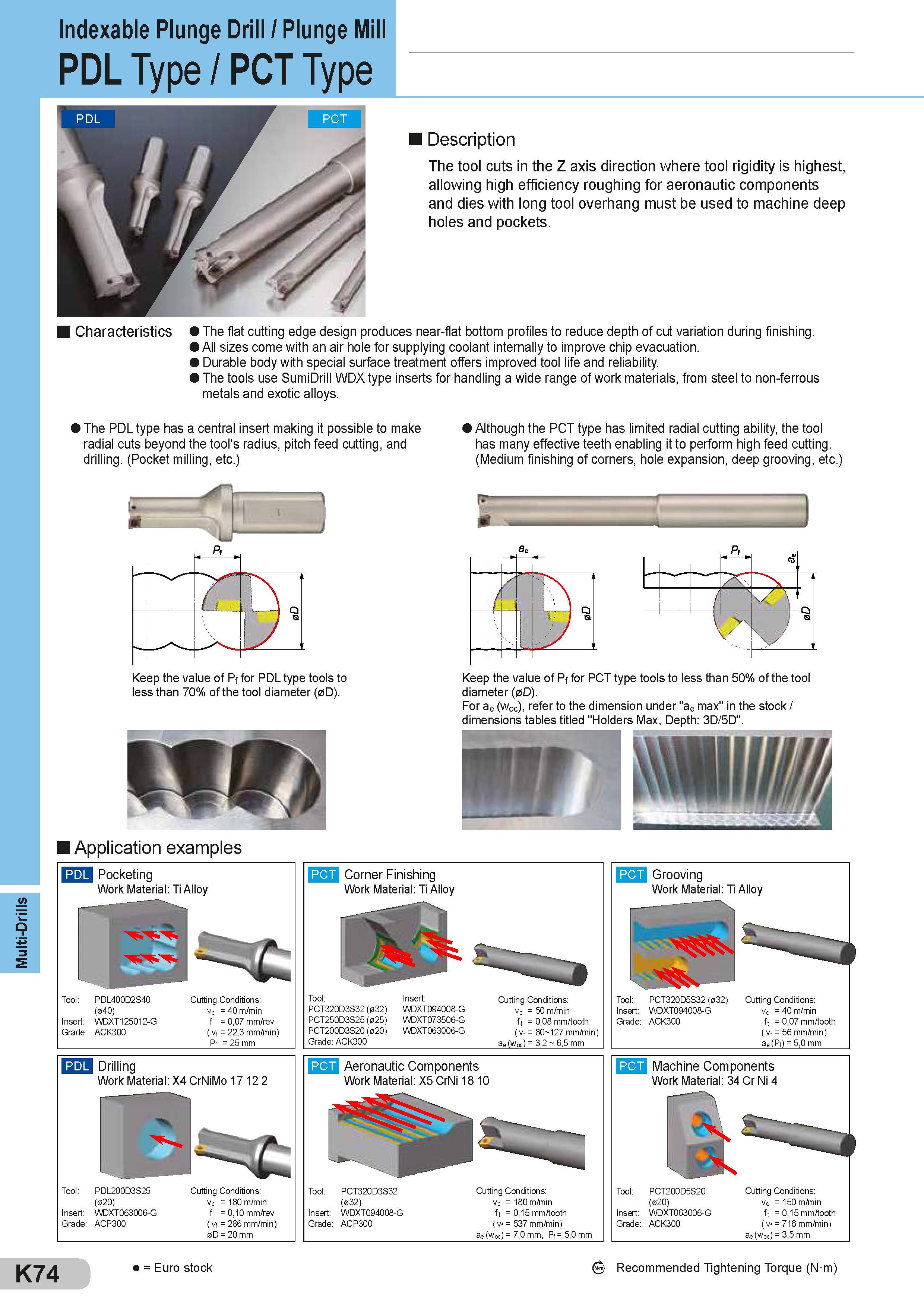

Multi-Drills Indexable Plunge Drill / Plunge Mill PDL Type / PCT Type Description The tool cuts in the Z axis direction where tool rigidity is highest, allowing high efficiency roughing for aeronautic components and dies with long tool overhang must be used to machine deep holes and pockets. Characteristics The flat cutting edge design produces near-flat bottom profiles to reduce depth of cut variation during finishing. All sizes come with an air hole for supplying coolant internally to improve chip evacuation. Durable body with special surface treatment offers improved tool life and reliability. The tools use SumiDrill WDX type inserts for handling a wide range of work materials, from steel to non-ferrous metals and exotic alloys. The PDL type has a central insert making it possible to make radial cuts beyond the tool's radius, pitch feed cutting, and drilling. (Pocket milling, etc.) Keep the value of Pf for PDL type tools to less than 70% of the tool diameter (0D). I Application examples Although the PCT type has limited radial cutting ability, the tool has many effective teeth enabling it to perform high feed cutting. (Medium finishing of corners, hole expansion, deep grooving, etc.) Keep the value of Pf for PCT type tools to less than 50% of the tool diameter (0D). For ae (wo<;), refer to the dimension under "ae max" in the stock / dimensions tables titled "Holders Max, Depth: 3D/5D". PDL Pocketing Work Material: Ti Alloy Tool: PDL400D2S40 (040) Insert: WDXT125012-G Grade: ACK300 Cutting Conditions: vc = 40 m/min f = 0,07 mm/rev (vf = 22,3 mm/min) Pf = 25 mm PDL Drilling Work Material: X4 CrNiMo 17 12 2 Tool: PDL200D3S25 (020) Insert: WDXT063006-G Grade: ACP300 Cutting Conditions: vc = 180 m/min f = 0,10 mm/rev (vf = 286 mm/min) 0D = 20 mm PCT Corner Finishing Work Material: Ti Alloy Tool: Insert: PCT320D3S32 (032) WDXT094008-G PCT250D3S25 (025) WDXT073506-G PCT200D3S20 (020) WDXT063006-G Grade: ACK300 Cutting Conditions: vc = 50 m/min ft = 0,08 mm/tooth (vf = 80 127 mm/min) ae (woc) = 3,2 6,5 mm PCT Grooving Work Material: Ti Alloy Tool: PCT320D5S32 (032) Insert: WDXT094008-G Grade: ACK300 Cutting Conditions: vc = 40 m/min ft = 0,07 mm/tooth (vf = 56 mm/min) ae (Pf) = 5,0 mm PCT Aeronautic Components Work Material: X5 CrNi 18 10 Tool: PCT320D3S32 (032) Insert: WDXT094008-G Grade: ACP300 Cutting Conditions: vc = 180 m/min ft = 0,15 mm/tooth (vf = 537 mm/min) ae (woc) = 7,0 mm, Pf = 5,0 mm PCT Machine Components Work Material: 34 Cr Ni 4 Tool: PCT200D5S20 (020) Insert: WDXT063006-G Grade: ACK300 Cutting Conditions: vc = 150 m/min ft = 0,15 mm/tooth (vf = 716 mm/min) ae (woc) = 3,5 mm = Euro stock Recommended Tightening Torque (N m)
