471 Каталог SUMITOMO 2018 Инструмент металлорежущий Пластины Резцы Фрезы Сверла Стр.K75

Каталог SUMITOMO 2018 Инструмент металлорежущий Стр. K75 0471 Lab2u

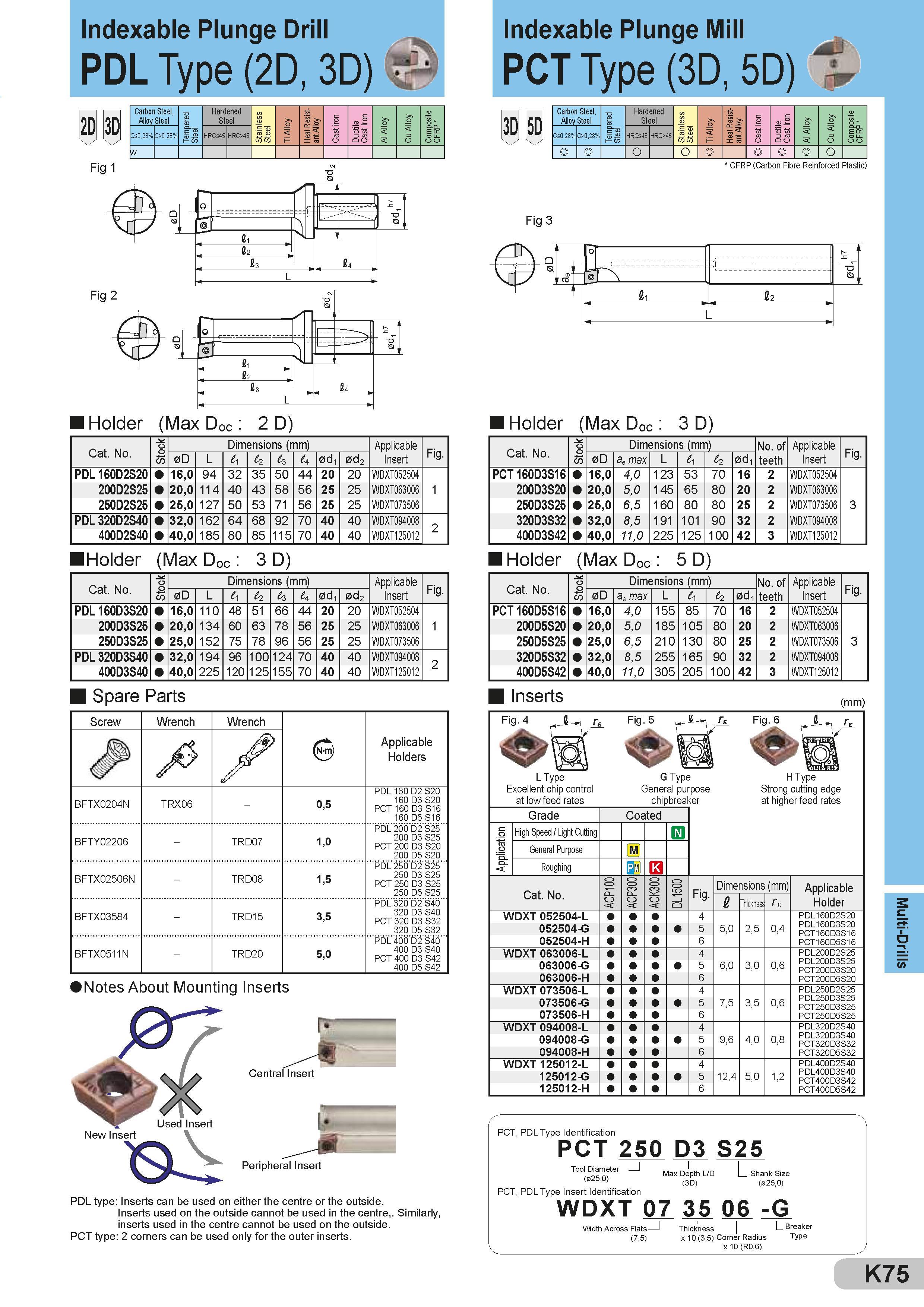

Indexable Plunge Drill PDL Type (2D, 3D) 2D 30 Fig 1 Carbon Steel, Alloy Steel Tempered Steel Hardened Steel Stainless Steel Ti Alloy Heat Resistant Alloy Cast iron Ductile Cast Iron Al Alloy Cu Alloy Composite CFRP C<0,28% C>0,28% HRC<45 HRC>45 w Fig 2 Holder (Max Doc : 2 D) 0 . 2 . . C4 , L o £ O a Q . 8' . . <4 , - L Indexable Plunge Mill PCT Type (3D, 5D) 30 i Fig 3 Carbon Steel, Alloy Steel Tempered Steel Hardened Steel Stainless Steel Ti Alloy Heat Resistant Alloy Cast iron Ductile Cast Iron Al Alloy Cu Alloy Composite CFRP C<0,28% C>0,28% HRC<45 HRC>45 o CFRP (Carbon Fibre Reinforced Plastic) F fsr 02 Holder (Max Doc : 3 D) Cat. No. Stock Dimensions (mm) Размеры указаны в мм Applicable Fig. 0D L I1 I2 I3 l4 0d-, 0d2 Insert PDL 160D2S20 16,0 94 32 35 50 44 20 20 WDXT052504 200D2S25 20,0 114 40 43 58 56 25 25 WDXT063006 1 250D2S25 25,0 127 50 53 71 56 25 25 WDXT073506 PDL320D2S40 32,0 162 64 68 92 70 40 40 WDXT094008 2 400D2S40 40,0 185 80 85 115 70 40 40 WDXT125012 Holder (Max Doc : 3 D) Cat. No. Stock Dimensions (mm) Размеры указаны в мм Applicable Fig. 0D L I1 I2 I3 l4 0d-, 0d2 Insert PDL 160D3S20 16,0 110 48 51 66 44 20 20 WDXT052504 200D3S25 20,0 134 60 63 78 56 25 25 WDXT063006 1 250D3S25 25,0 152 75 78 96 56 25 25 WDXT073506 PDL320D3S40 32,0 194 96 100 124 70 40 40 WDXT094008 2 400D3S40 40,0 225 120 125 155 70 40 40 WDXT125012 Spare Parts Запасные части Sumitomo и комплектующие Screw Wrench Wrench Applicable Holders A X BFTX0204N TRX06 - 0,5 PDL 160 D2 S20 160 D3 S20 PCT 160 D3 S16 160 D5 S16 BFTY02206 - TRD07 1,0 PDL 200 D2 S25 200 D3 S25 PCT 200 D3 S20 200 D5 S20 BFTX02506N - TRD08 1,5 PDL 250 D2 S25 250 D3 S25 PCT 250 D3 S25 250 D5 S25 BFTX03584 - TRD15 3,5 PDL 320 D2 S40 320 D3 S40 PCT 320 D3 S32 320 D5 S32 BFTX0511N - TRD20 5,0 PDL 400 D2 S40 400 D3 S40 PCT 400 D3 S42 400 D5 S42 Notes About Mounting Inserts PDL type: Inserts can be used on either the centre or the outside. Inserts used on the outside cannot be used in the centre,. Similarly, inserts used in the centre cannot be used on the outside. PCT type: 2 corners can be used only for the outer inserts. Cat. No. Stock Dimensions (mm) Размеры указаны в мм No. of Applicable Fig. 0D ae max L I1 I2 0d-, teeth Insert PCT 160D3S16 16,0 4,0 123 53 70 16 2 WDXT052504 200D3S20 20,0 5,0 145 65 80 20 2 WDXT063006 250D3S25 25,0 6,5 160 80 80 25 2 WDXT073506 3 320D3S32 32,0 8,5 191 101 90 32 2 WDXT094008 400D3S42 40,0 11,0 225 125 100 42 3 WDXT125012 Holder (Max Doc : 5 D) Cat. No. Stock Dimensions (mm) Размеры указаны в мм No. of Applicable Fig. 0D ae max L I1 I2 0d-, teeth Insert PCT 160D5S16 16,0 4,0 155 85 70 16 2 WDXT052504 200D5S20 20,0 5,0 185 105 80 20 2 WDXT063006 250D5S25 25,0 6,5 210 130 80 25 2 WDXT073506 3 320D5S32 32,0 8,5 255 165 90 32 2 WDXT094008 400D5S42 40,0 11,0 305 205 100 42 3 WDXT125012 Inserts (mm) L Type Excellent chip control at low feed rates Grade High Speed / Light Cutting General Purpose Roughing G Type General purpose chipbreaker Coated pm m rn H Type Strong cutting edge at higher feed rates Cat. No. Fig. Dimensions (mm) Размеры указаны в мм Thickness Applicable Holder WDXT 052504-L 052504-G 052504-H 5,0 2,5 0,4 PDL160D2S20 PDL160D3S20 PCT160D3S16 PCT160D5S16 WDXT 063006-L 063006-G 063006-H 6,0 3,0 0,6 PDL200D2S25 PDL200D3S25 PCT200D3S20 PCT200D5S20 WDXT 073506-L 073506-G 073506-H 7,5 3,5 0,6 PDL250D2S25 PDL250D3S25 PCT250D3S25 PCT250D5S25 WDXT 094008-L 094008-G 094008-H 9,6 4,0 0,8 PDL320D2S40 PDL320D3S40 PCT320D3S32 PCT320D5S32 WDXT 125012-L 125012-G 125012-H 12,4 5,0 1,2 PDL400D2S40 PDL400D3S40 PCT400D3S42 PCT400D5S42 PCT, PDL Type Identification PCT 250 D3 S25 Max Depth L/D (3D) I Shank Size (025,0) Tool Diameter I (025,0) PCT, PDL Type Insert Identification WDXT 07 35 06 -G Width Across Flats - (7,5) Thickness L Breaker x 10 (3,5) Corner Radius Type x 10 (R0,6) K75 Multi-Drills
