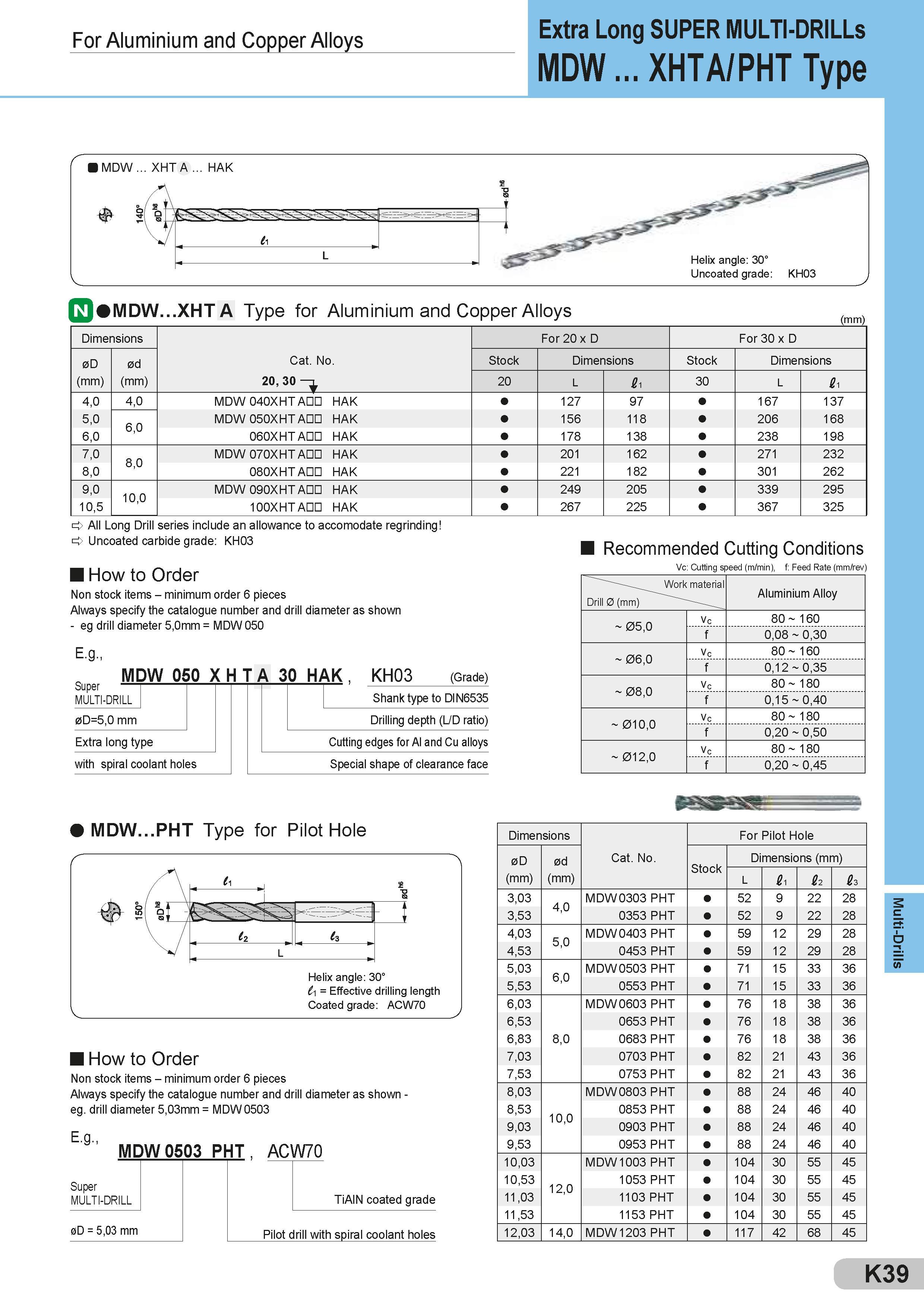

For Aluminium and Copper Alloys Extra Long SUPER MULTI-DRILLs MDW ... XHTA/PHT Type MDW...XHT A Type for Aluminium and Copper Alloys Dimensions For 20x D For 30 x D 0D 0d Cat. No. Stock Dimensions Stock Dimensions (mm) Размеры указаны в мм 20, 30 20 L h 30 L 01 4,0 4,0 MDW 040XHT ADD HAK 127 97 167 137 5,0 6,0 MDW 050XHT ADD HAK 156 118 206 168 6,0 060XHTADD HAK 178 138 238 198 7,0 8,0 MDW 070XHT ADD HAK 201 162 271 232 8,0 080XHTADD HAK 221 182 301 262 9,0 10,0 MDW 090XHT ADD HAK 249 205 339 295 10,5 100XHTADD HAK 267 225 367 325 O All Long Drill series include an allowance to accomodate regrinding O Uncoated carbide grade: KH03 How to Order Non stock items - minimum order 6 pieces Always specify the catalogue number and drill diameter as shown - eg drill diameter 5,0mm = MDW 050 E.g., MDW 050 X C H 1 r A 30 HAK , KH03 (Grade) oupei MULTI-DRILL Shank type to DIN6535 0D=5,0 mm Drilling depth (L/D ratio) Extra long type Cutting edges for Al and Cu alloys with spiral coolant holes Special shape of clearance face Recommended Cutting Conditions Vc: Cutting speed (m/min), f: Feed Rate (mm/rev) Work material Drill 0 (mm) Aluminium Alloy 05,0 Vc 80 160 f 0,08 0,30 06,0 Vc 80 160 f 0,12 0,35 08,0 Vc 80 180 f 0,15 0,40 010,0 Vc 80 180 f 0,20 0,50 012,0 Vc 80 180 f 0,20 0,45 How to Order Non stock items - minimum order 6 pieces Always specify the catalogue number and drill diameter as shown - eg. drill diameter 5,03mm = MDW 0503 E.g., MDW 0503 PHT , ACW70 Super MULTI-DRILL 0D = 5,03 mm TiAlN coated grade Pilot drill with spiral coolant holes Dimensions Cat. No. For Pilot Hole 0D (mm) 0d (mm) Stock Dimensions (mm) Размеры указаны в мм L h &2 &3 3,03 4,0 MDW0303 PHT 52 9 22 28 3,53 0353 PHT 52 9 22 28 4,03 MDW0403 PHT 59 12 29 28 4,53 5,0 0453 PHT 59 12 29 28 5,03 6,0 MDW0503 PHT 71 15 33 36 5,53 0553 PHT 71 15 33 36 6,03 MDW0603 PHT 76 18 38 36 6,53 0653 PHT 76 18 38 36 6,83 8,0 0683 PHT 76 18 38 36 7,03 0703 PHT 82 21 43 36 7,53 0753 PHT 82 21 43 36 8,03 MDW 0803 PHT 88 24 46 40 8,53 10,0 0853 PHT 88 24 46 40 9,03 0903 PHT 88 24 46 40 9,53 0953 PHT 88 24 46 40 10,03 MDW 1003 PHT 104 30 55 45 10,53 12,0 1053 PHT 104 30 55 45 11,03 1103 PHT 104 30 55 45 11,53 1153 PHT 104 30 55 45 12,03 14,0 MDW 1203 PHT 117 42 68 45 K39 Multi-Drills
