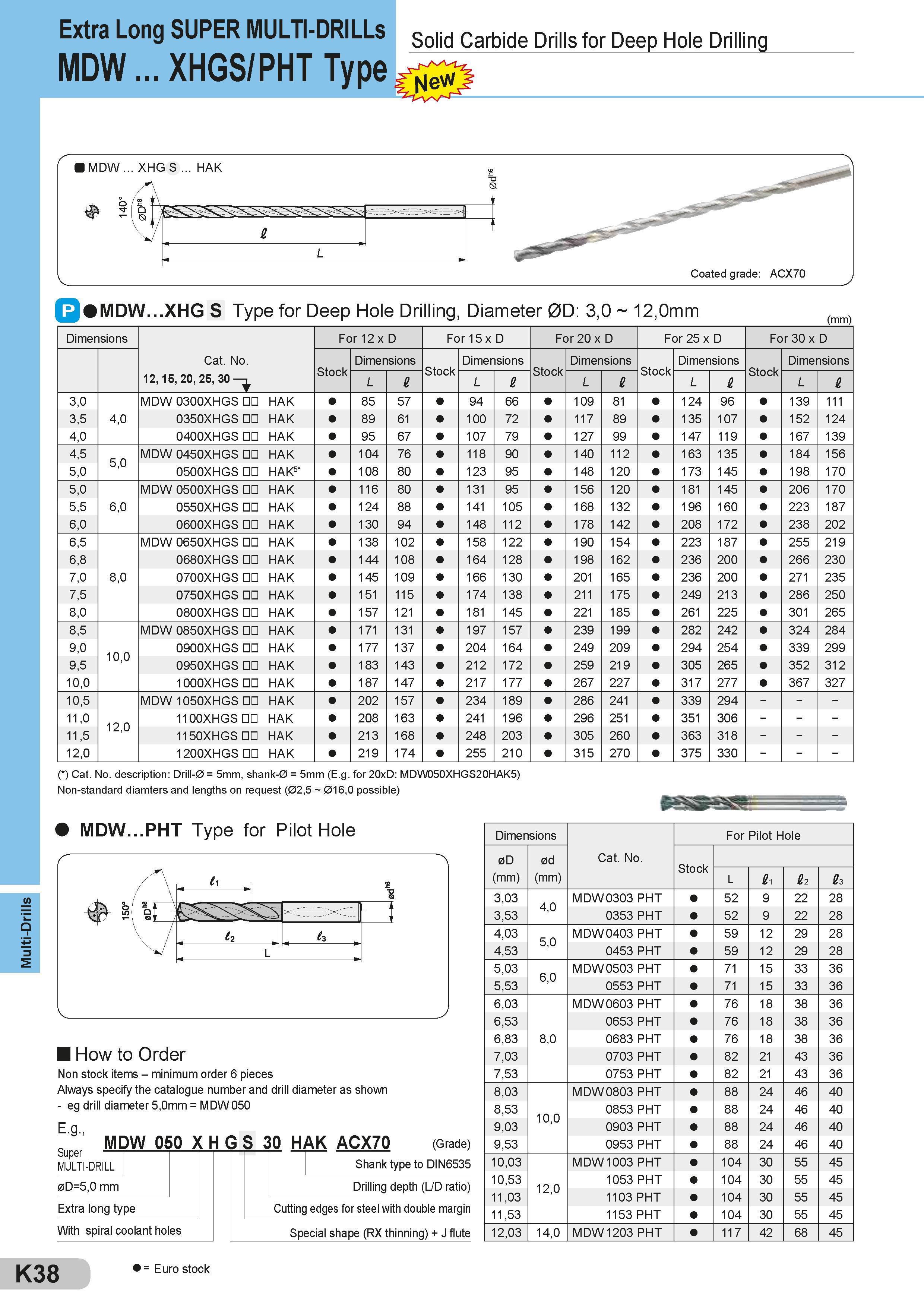

Multi-Drills Extra Long SUpER MULT -DR LLs Solid Carbide Drills for Deep Hole Drilling Q9MDW...XHG S Type for Deep Hole Drilling, Diameter 0D: 3,0 12,0mm (mm) Dimensions Cat. No. 12, 15, 20, 25, 30 -n For 12 x D For 15 x D For 20x D For 25 x D For 30 x D Stock Dimensions Stock Dimensions Stock Dimensions Stock Dimensions Dimensions L 2 L £ L 2 L 2 Stock L 2 3,0 MDW 0300XHGS HAK 85 57 94 66 109 81 124 96 139 111 3,5 4,0 0350XHGS HAK 89 61 100 72 117 89 135 107 152 124 4,0 0400XHGS HAK 95 67 107 79 127 99 147 119 167 139 4,5 MDW 0450XHGS HAK 104 76 118 90 140 112 163 135 184 156 5,0 0500XHGS HAK5 108 80 123 95 148 120 173 145 198 170 5,0 MDW 0500XHGS HAK 116 80 131 95 156 120 181 145 206 170 5,5 6,0 0550XHGS HAK 124 88 141 105 168 132 196 160 223 187 6,0 0600XHGS HAK 130 94 148 112 178 142 208 172 238 202 6,5 MDW 0650XHGS HAK 138 102 158 122 190 154 223 187 255 219 6,8 0680XHGS HAK 144 108 164 128 198 162 236 200 266 230 7,0 8,0 0700XHGS HAK 145 109 166 130 201 165 236 200 271 235 7,5 0750XHGS HAK 151 115 174 138 211 175 249 213 286 250 8,0 0800XHGS HAK 157 121 181 145 221 185 261 225 301 265 8,5 MDW 0850XHGS HAK 171 131 197 157 239 199 282 242 324 284 9,0 10,0 0900XHGS HAK 177 137 204 164 249 209 294 254 339 299 9,5 0950XHGS HAK 183 143 212 172 259 219 305 265 352 312 10,0 1000XHGS HAK 187 147 217 177 267 227 317 277 367 327 10,5 MDW 1050XHGS HAK 202 157 234 189 286 241 339 294 - - - 11,0 12,0 1100XHGS HAK 208 163 241 196 296 251 351 306 - - - 11,5 1150XHGS HAK 213 168 248 203 305 260 363 318 - - - 12,0 1200XHGS HAK 219 174 255 210 315 270 375 330 - - - ( ) Cat. No. description: Drill-0 = 5mm, shank-0 = 5mm (E.g Non-standard diamters and lengths on request (02,5 016 for 20xD: MDW050XHGS20HAK5) 0 possible) How to Order Non stock items - minimum order 6 pieces Always specify the catalogue number and drill diameter as shown - eg drill diameter 5,0mm = MDW 050 E.g Super MDW 050 X H G S 30 HAK ACX70 (Grade) MULTI-DRILL Shank type to DIN6535 0D=5,0 mm Drilling depth (L/D ratio) Extra long type With spiral coolant holes Cutting edges for steel with double margin Special shape (RX thinning) + J flute Dimensions Cat. No. For Pilot Hole 0D (mm) 0d (mm) Stock L 21 22 23 3,03 4,0 MDW 0303 PHT 52 9 22 28 3,53 0353 PHT 52 9 22 28 4,03 MDW 0403 PHT 59 12 29 28 4,53 0453 PHT 59 12 29 28 5,03 6,0 MDW 0503 PHT 71 15 33 36 5,53 0553 PHT 71 15 33 36 6,03 MDW 0603 PHT 76 18 38 36 6,53 0653 PHT 76 18 38 36 6,83 8,0 0683 PHT 76 18 38 36 7,03 0703 PHT 82 21 43 36 7,53 0753 PHT 82 21 43 36 8,03 MDW 0803 PHT 88 24 46 40 8,53 10,0 0853 PHT 88 24 46 40 9,03 0903 PHT 88 24 46 40 9,53 0953 PHT 88 24 46 40 10,03 MDW 1003 PHT 104 30 55 45 10,53 12,0 1053 PHT 104 30 55 45 11,03 1103 PHT 104 30 55 45 11,53 1153 PHT 104 30 55 45 12,03 14,0 MDW 1203 PHT 117 42 68 45 K38 = Euro stock
