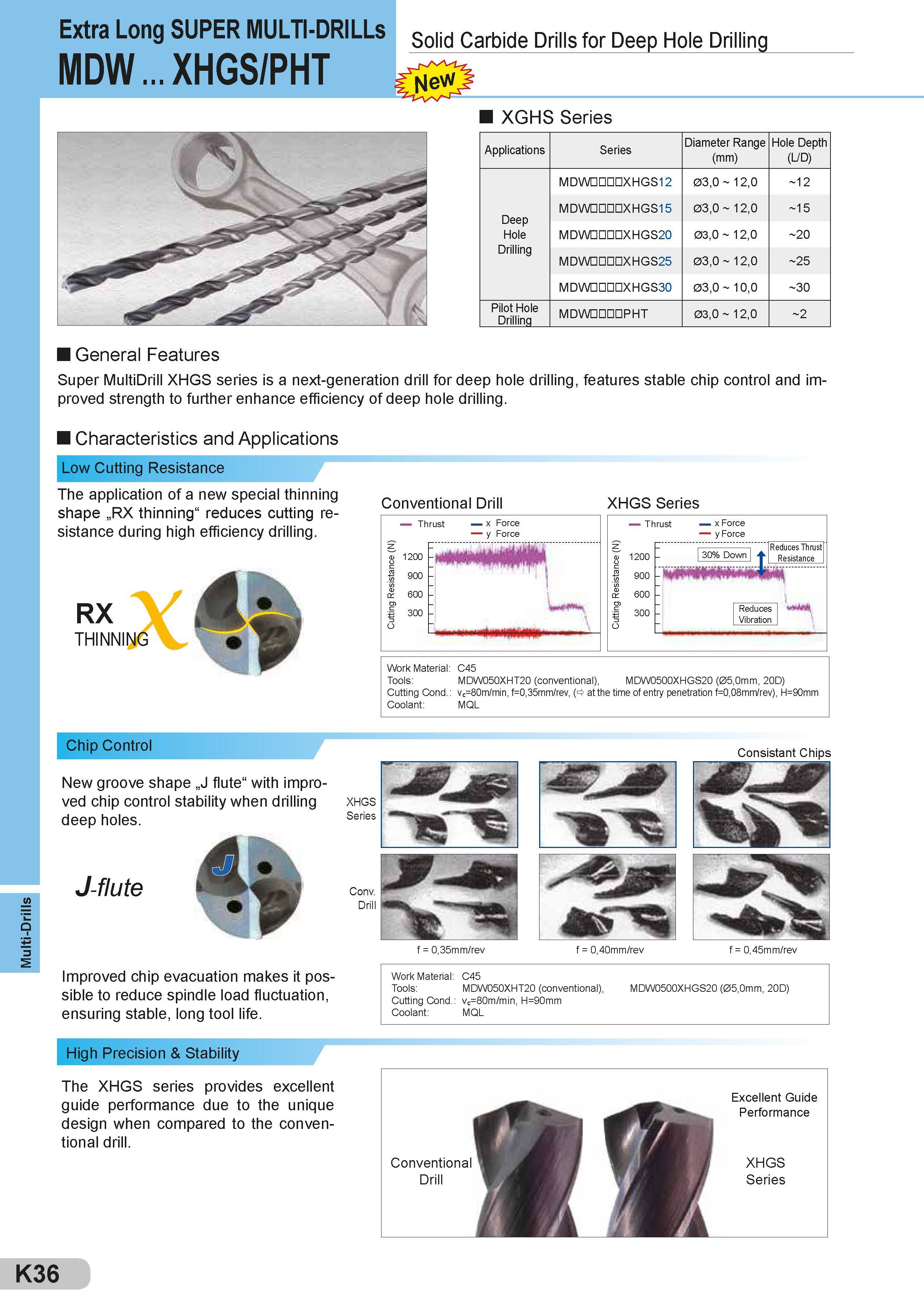

Multi-Drills Extra Long SUPER MULTI-DRILLs 0O jd Carbide Drills for Deep Hole Drilling MDW ... XHGS/PHT XGHS Series Applications Series Diameter Range (mm) Hole Depth (L/D) MDwnnnnXHGSi2 03,0 12,0 12 Deep Hole Drilling MDwnnnnXHGSi5 03,0 12,0 15 MDwnnnnXHGS20 03,0 12,0 0 2 X MDwnnnnXHGS25 03,0 12,0 5 2 X MDwnnnnXHGS30 03,0 10,0 30 Pilot Hole Drilling MDwnnnnPHT 03,0 12,0 2 General Features Super MultiDrill XHGS series is a next-generation drill for deep hole drilling, features stable chip control and improved strength to further enhance efficiency of deep hole drilling. Characteristics and Applications Low Cutting Resistance r The application of a new special thinning shape „RX thinning" reduces cutting resistance during high efficiency drilling. RX THINNI w Conventional Drill . x Force y Force g 1200 1 900 w 2 600 03 1 300 O XHGS Series . x Force y Force 1200 900 600 300 Reduces Vibration Work Material: C45 Tools: MDW050XHT20 (conventional), MDW0500XHGS20 (05,0mm, 20D) Cutting Cond.: Vc=80m/min, f=0,35mm/rev, (o at the time of entry penetration f=0,08mm/rev), H=90mm Coolant: MQL Chip Control New groove shape „J flute“ with improved chip control stability when drilling deep holes. J-flute Improved chip evacuation makes it possible to reduce spindle load fluctuation, ensuring stable, long tool life. Consistant Chips XHGS Series Conv. Drill f = 0,35mm/rev f = 0,40mm/rev f = 0,45mm/rev Work Material: C45 Tools: MDW050XHT20 (conventional), MDW0500XHGS20 (05,0mm, 20D) Cutting Cond. vc=80m/min, H=90mm Coolant: MQL High Precision & Stability r The XHGS series provides excellent guide performance due to the unique design when compared to the conventional drill. Conventional Drill 1 i J Excellent Guide Performance XHGS Series Thrust Thrust K36
