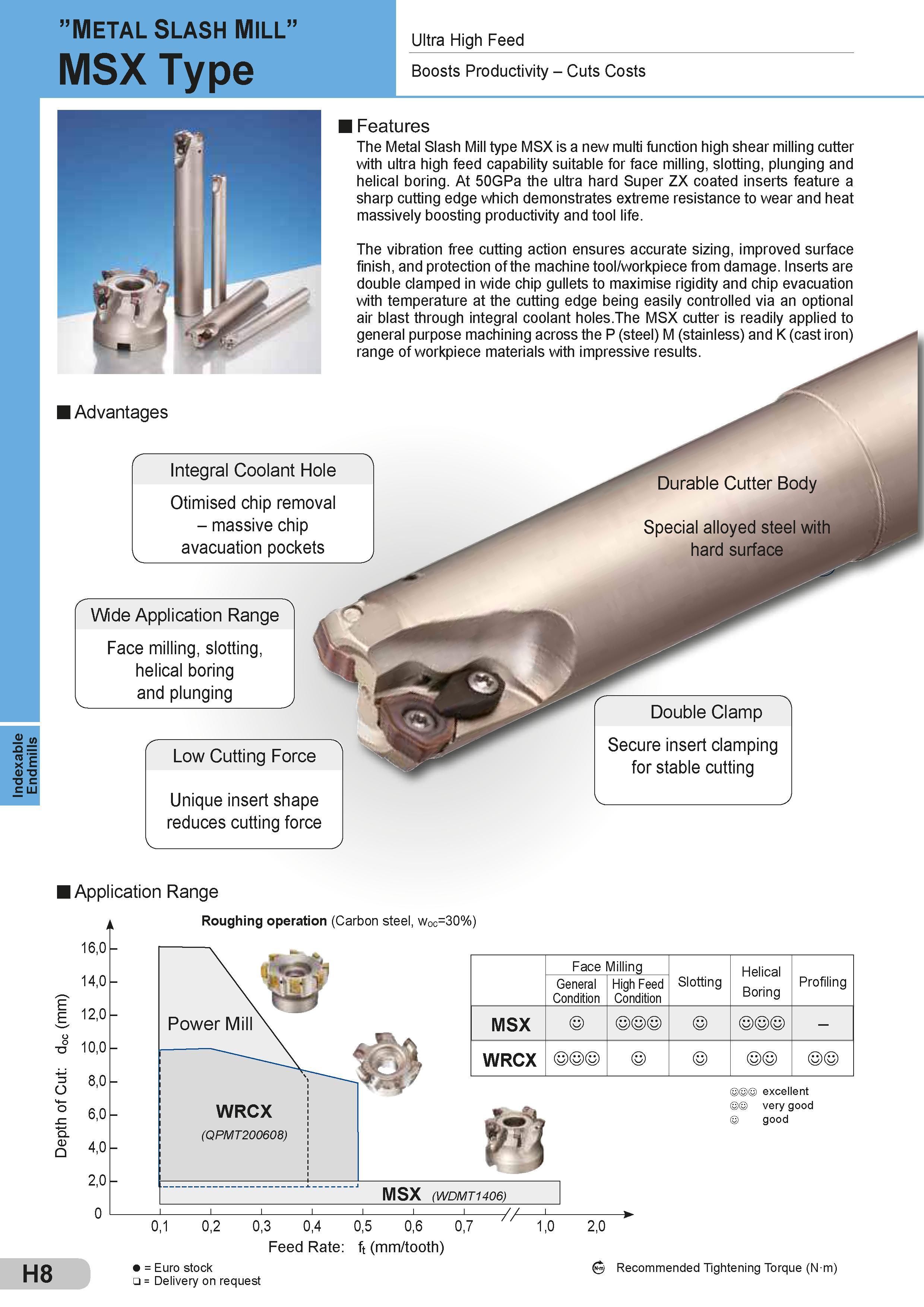

Indexable Endmills ”Metal slash Mill” MSX Type Ultra High Feed Boosts Productivity - Cuts Costs I Features The Metal Slash Mill type MSX is a new multi function high shear milling cutter with ultra high feed capability suitable for face milling, slotting, plunging and helical boring. At 50GPa the ultra hard Super ZX coated inserts feature a sharp cutting edge which demonstrates extreme resistance to wear and heat massively boosting productivity and tool life. The vibration free cutting action ensures accurate sizing, improved surface finish, and protection of the machine tool/workpiece from damage. Inserts are double clamped in wide chip gullets to maximise rigidity and chip evacuation with temperature at the cutting edge being easily controlled via an optional air blast through integral coolant holes.The MSX cutter is readily applied to general purpose machining across the P (steel) M (stainless) and K (cast iron) range of workpiece materials with impressive results. I Advantages Integral Coolant Hole Otimised chip removal - massive chip avacuation pockets Wide Application Range Face milling, slotting, helical boring and plunging r . a Low Cutting Force Unique insert shape reduces cutting force o M o .c t p CD Q Application Range Roughing operation (Carbon steel, woc=30%) 16,0 14.0 12.0 10,0 8,0 6,0 4.0 2.0 0 H8 Face Milling Slotting Helical Boring Profiling General Condition High Feed Condition MSX - WRCX WRCX (QPMT200608) excellent very good good MSX (WDMT1406) 0,1 0,2 0,3 0,4 0,5 0,6 0,7 Feed Rate: ft (mm/tooth) = Euro stock = Delivery on request 1,0 2,0 Recommended Tightening Torque (N m)
