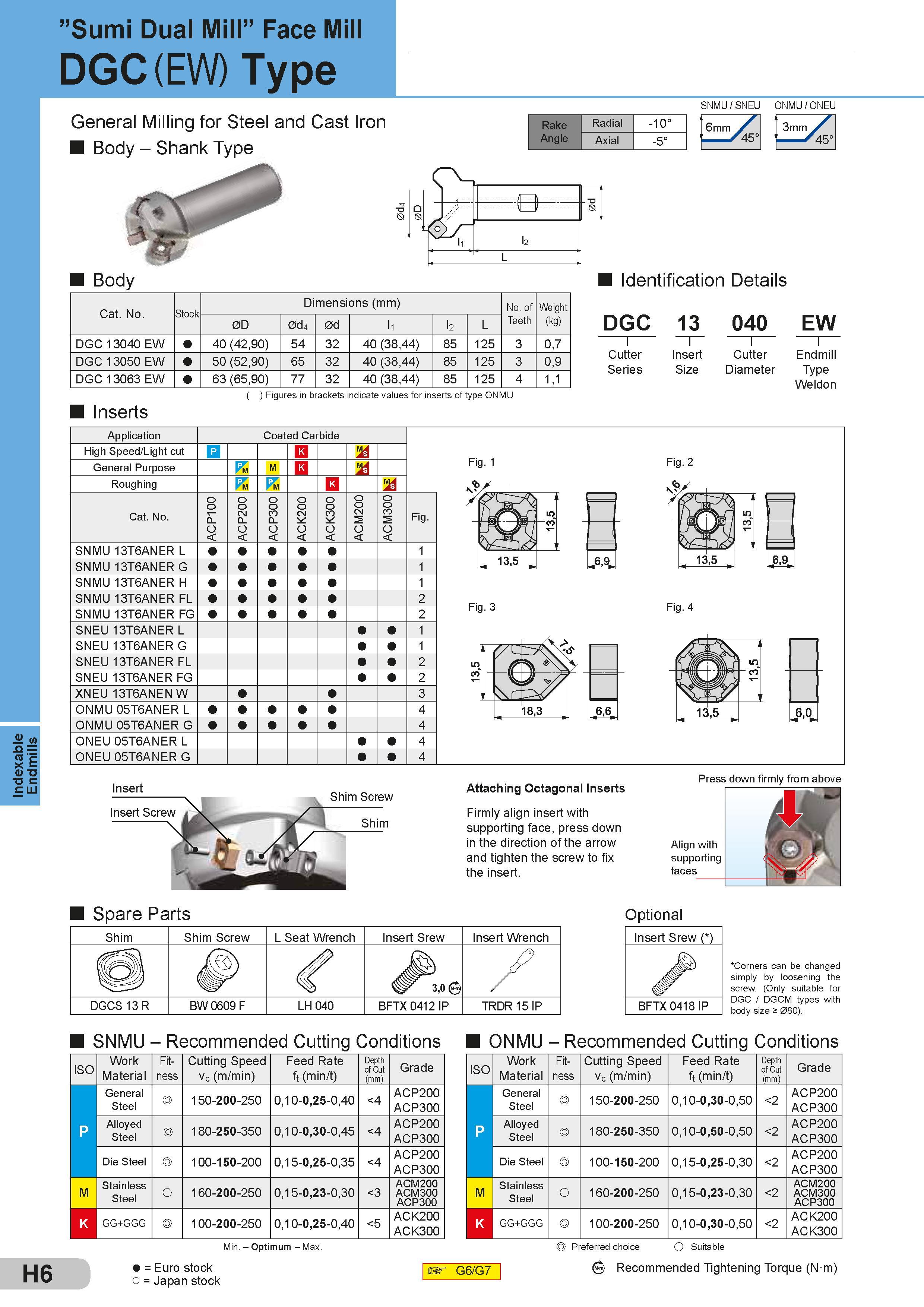

Indexable Endmills ”Sumi Dual Mill” Face Mill DGC (EW) Type General Milling for Steel and Cast Iron Body - Shank Type m Body SNMU / SNEU ONMU / ONEU Rake Angle Radial -10° Axial -5° pi 1 0d Q N O- P'T l1 2 L Cat. No. Stock Dimensions (mm) Размеры указаны в мм No. of Teeth Количество режущих зубьев Weight (kg) Вес (кг) 0D 0d4 0d l1 l2 L DGC 13040 EW 40 (42,90) 54 32 40 (38,44) 85 125 3 0,7 DGC 13050 EW 50 (52,90) 65 32 40 (38,44) 85 125 3 0,9 DGC 13063 EW 63 (65,90) 77 32 40 (38,44) 85 125 4 1,1 Identification Details DGC 13 040 EW i i i i Insert Cutter Endmill Size Diameter Type Weldon Cutter Series ( ) Figures in brackets indicate values for inserts of type ONMU Inserts Application High Speed/Light cut General Purpose Roughing Cat. No. SNMU 13T6ANER L SNMU 13T6ANER G SNMU 13T6ANER H SNMU 13T6ANER FL SNMU 13T6ANER FG SNEU 13T6ANERL SNEU 13T6ANERG SNEU 13T6ANER FL SNEU 13T6ANER FG XNEU 13T6ANENW ONMU 05T6ANER L ONMU 05T6ANER G ONEU 05T6ANER L ONEU 05T6ANER G Coated Carbide pM PM PM IK 0 “s Fig. 1 Fig. 2 Fig. Fig. 3 Fig. 4 Xr 18,3 6,6 6,0 Insert Shim Screw Shim Attaching Octagonal Inserts Firmly align insert with supporting face, press down in the direction of the arrow and tighten the screw to fix the insert. Press down firmly from above Align with supporting faces Spare Parts Запасные части Sumitomo и комплектующие Shim Screw L Seat Wrench Insert Srew Insert Wrench m 3,0 / DGCS13R BW 0609 F LH 040 BFTX 0412 IP TRDR 15 IP Optional Insert Srew ( ) BFTX 0418 IP Corners can be changed simply by loosening the screw. (Only suitable for DGC / DGCM types with body size s 080). SNMU - Recommended Cutting Conditions ONMU - Recommended Cutting Conditions M ISO Work Material Обрабатываемый материал Fit- ness Cutting Speed vc (m/min) Feed Rate ft (min/t) Depth of Cut (mm) Grade r General Steel 150-200-250 0,10-0,25-0,40 <4 ACP200 ACP300 p Alloyed Steel 180-250-350 0,10-0,30-0,45 <4 ACP200 ACP300 L Die Steel 100-150-200 0,15-0,25-0,35 <4 ACP200 ACP300 M Stainless Steel Нержавеющая сталь O 160-200-250 0,15-0,23-0,30 <3 ACM200 ACM300 ACP300 K GG+GGG 100-200-250 0,10-0,25-0,40 <5 ACK200 ACK300 ISO Work Material Обрабатываемый материал Fit- ness Cutting Speed vc (m/min) Feed Rate ft (min/t) Depth of Cut (mm) Grade r General Steel 150-200-250 0,10-0,30-0,50 <2 ACP200 ACP300 p Alloyed Steel 180-250-350 0,10-0,50-0,50 <2 ACP200 ACP300 L Die Steel 100-150-200 0,15-0,25-0,30 <2 ACP200 ACP300 M Stainless Steel Нержавеющая сталь O 160-200-250 0,15-0,23-0,30 <2 ACM200 ACM300 ACP300 K GG+GGG 100-200-250 0,10-0,30-0,50 <2 ACK200 ACK300 H6 Min. - Optimum - Max. Preferred choice O Suitable = Euro stock G6/G7 Recommended Tightening Torque (N m) o = Japan stock
