303 Каталог SUMITOMO 2018 Инструмент металлорежущий Пластины Резцы Фрезы Сверла Стр.H5

Каталог SUMITOMO 2018 Инструмент металлорежущий Стр. H5 0303 Lab2u

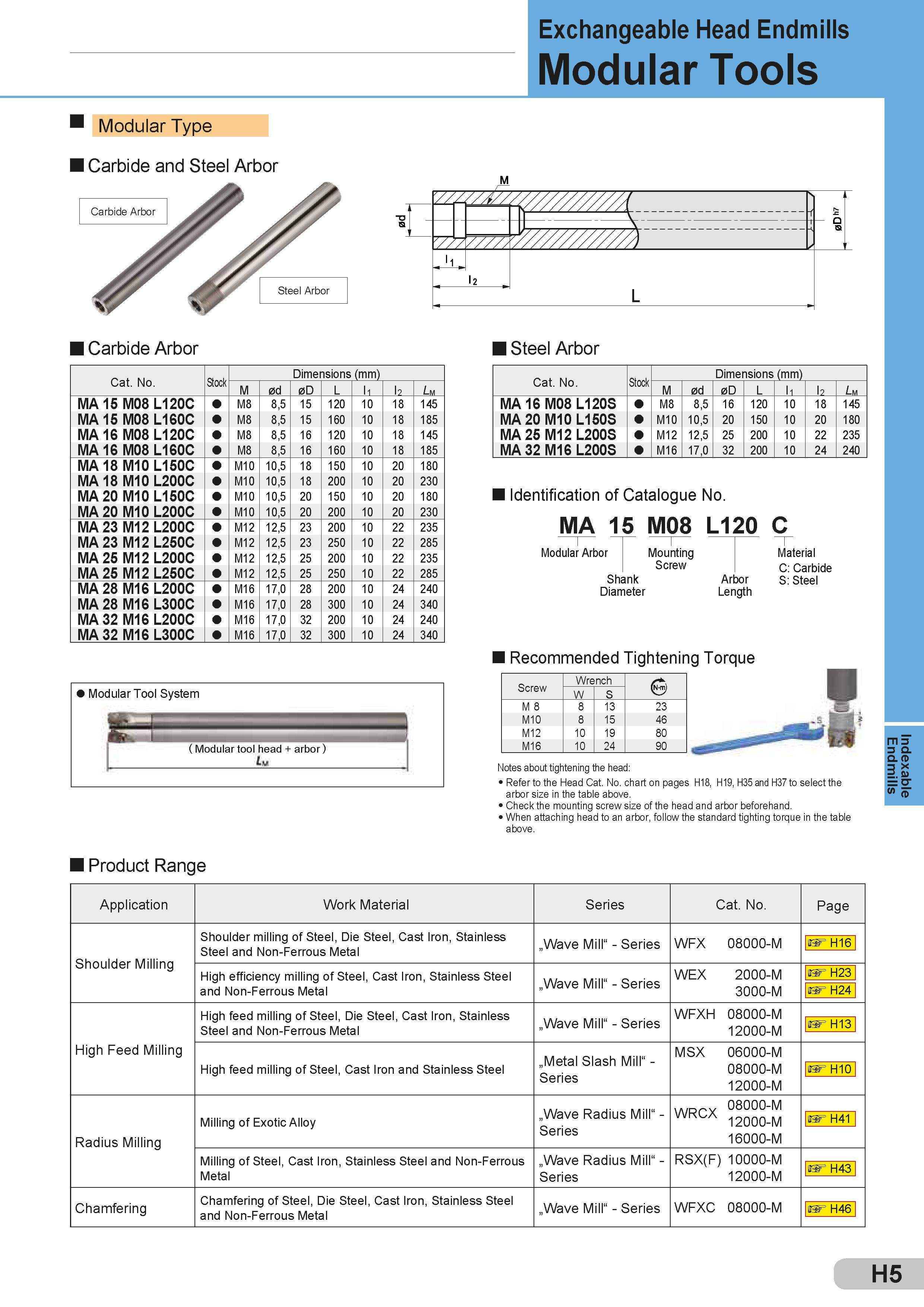

Exchangeable Head Endmills Modular Tools Modular Type Carbide and Steel Arbor Carbide Arbor Steel Arbor Cat. No. Stock Dimensions (mm) Размеры указаны в мм M 0d 0D L l1 b Lm MA 15 M08 L120C M8 8,5 15 120 10 18 1 45 MA 15 M08 L160C M8 8,5 15 160 10 18 185 MA 16 M08 L120C M8 8,5 16 120 10 18 145 MA 16 M08 L160C M8 8,5 16 160 10 18 185 MA 18 M10 L150C M10 10,5 18 150 10 20 180 MA 18 M10 L200C M10 10,5 18 200 10 20 230 MA 20 M10 L150C M10 10,5 20 150 10 20 180 MA 20 M10 L200C M10 10,5 20 200 10 20 230 MA 23 M12 L200C M12 12,5 23 200 10 22 235 MA 23 M12 L250C M12 12,5 23 250 10 22 285 MA 25 M12 L200C M12 12,5 25 200 10 22 235 MA 25 M12 L250C M12 12,5 25 250 10 22 285 MA 28 M16 L200C M16 17,0 28 200 10 24 240 MA 28 M16 L300C M16 17,0 28 300 10 24 340 MA 32 M16 L200C M16 17,0 32 200 10 24 240 MA 32 M16 L300C M16 17,0 32 300 10 24 340 Cat. No. Stock Dimensions (mm) Размеры указаны в мм M 0d 0D L l1 b Lm MA 16 M08 L120S M8 8,5 16 120 1 10 18 145 MA 20 M10 L150S M10 10,5 20 150 10 20 180 MA 25 M12 L200S M12 12,5 25 200 10 22 235 MA 32 M16 L200S M16 17,0 32 200 10 24 240 Identification of Catalogue No. MA 15 M08 L120 C Modular Arbor Mounting Screw Shank Diameter Arbor Length Material C: Carbide S: Steel Recommended Tightening Torque Screw Wrench m) W S M 8 8 13 23 M10 8 15 46 M12 10 19 80 M16 10 24 90 Notes about tightening the head: Refer to the Head Cat. No. chart on pages H18, H19, H35 and H37 to select the arbor size in the table above. Check the mounting screw size of the head and arbor beforehand. When attaching head to an arbor, follow the standard tighting torque in the table above. Product Range Application Work Material Series Cat. No. Page Shoulder Milling Shoulder milling of Steel, Die Steel, Cast Iron, Stainless Steel and Non-Ferrous Metal „Wave Mill“ - Series WFX 08000-M H16 High efficiency milling of Steel, Cast Iron, Stainless Steel and Non-Ferrous Metal „Wave Mill“ - Series WEX 2000-M 3000-M H23 H24 High Feed Milling High feed milling of Steel, Die Steel, Cast Iron, Stainless Steel and Non-Ferrous Metal „Wave Mill“ - Series WFXH 08000-M 12000-M H13 High feed milling of Steel, Cast Iron and Stainless Steel „Metal Slash Mill" -Series MSX 06000-M 08000-M 12000-M H10 Radius Milling Milling of Exotic Alloy „Wave Radius Mill" -Series 08000-M WRCX 12000-M 16000-M H41 Milling of Steel, Cast Iron, Stainless Steel and Non-Ferrous Metal „Wave Radius Mill" -Series RSX(F) 10000-M 12000-M H43 Chamfering Chamfering of Steel, Die Steel, Cast Iron, Stainless Steel and Non-Ferrous Metal „Wave Mill" - Series WFXC 08000-M H46 H5 Indexable Endmills
