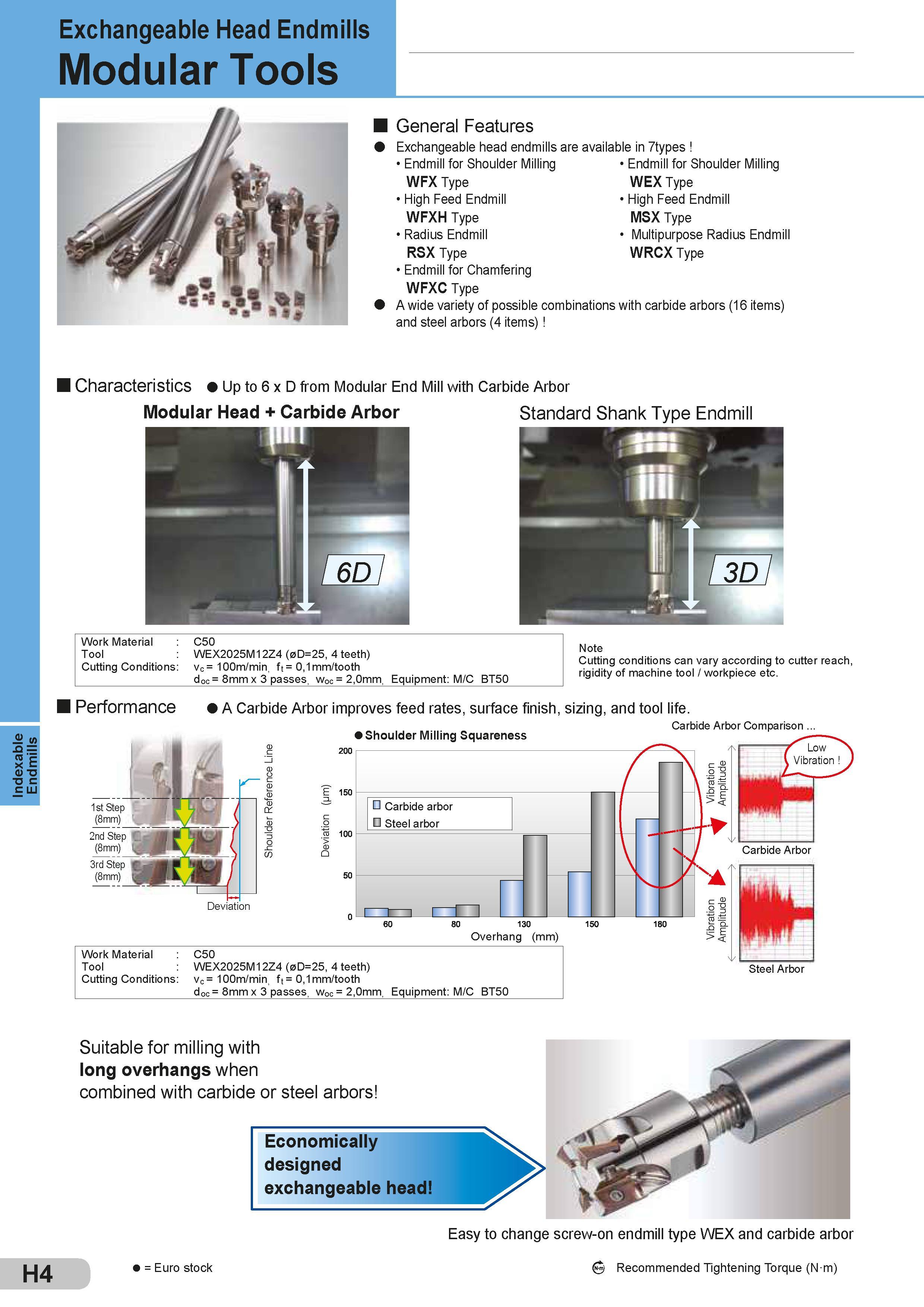

Indexable Endmills Exchangeable Head Endmills Modular Tools General Features Exchangeable head endmills are available in 7types Endmill for Shoulder Milling Endmill for Shoulder Milling WFX Type WEX Type High Feed Endmill High Feed Endmill WFXH Type MSX Type Radius Endmill Multipurpose Radius Endmill RSX Type WRCX Type Endmill for Chamfering WFXC Type A wide variety of possible combinations with carbide arbors (16 items) and steel arbors (4 items) Characteristics Up to 6 x D from Modular End Modular Head + Carbide Arbor I with Carbide Arbor Standard Shank Type Endmill 1st Step (8mm) 2nd Step (8mm) 3rd Step (8mm) Work Material Tool Cutting Conditions Work Material Tool Cutting Conditions Performance C50 WEX2025M12Z4 (0D=25, 4 teeth) Vc = 100m/min, ft = 0,1mm/tooth doc = 8mm x 3 passes, w0c = 2,0mm, Equipment: M/C BT50 Note Cutting conditions can vary according to cutter reach, rigidity of machine tool / workpiece etc. A Carbide Arbor improves feed rates, surface finish, sizing, and tool life. Carbide Arbor Comparison . Shoulder Milling Squareness E 150 Carbide arbor Steel arbor Deviation I -1 I 130 Overhang (mm) C50 WEX2025M12Z4 (0D=25, 4 teeth) vc = 100m/min, ft = 0,1mm/tooth doc = 8mm x 3 passes, w0c = 2,0mm, Equipment: M/C BT50 Steel Arbor Suitable for milling with long overhangs when combined with carbide or steel arbors Economically designed exchangeable head H4 = Euro stock Easy to change screw-on endmill type WEX and carbide arbor Recommended Tightening Torque (N m)
