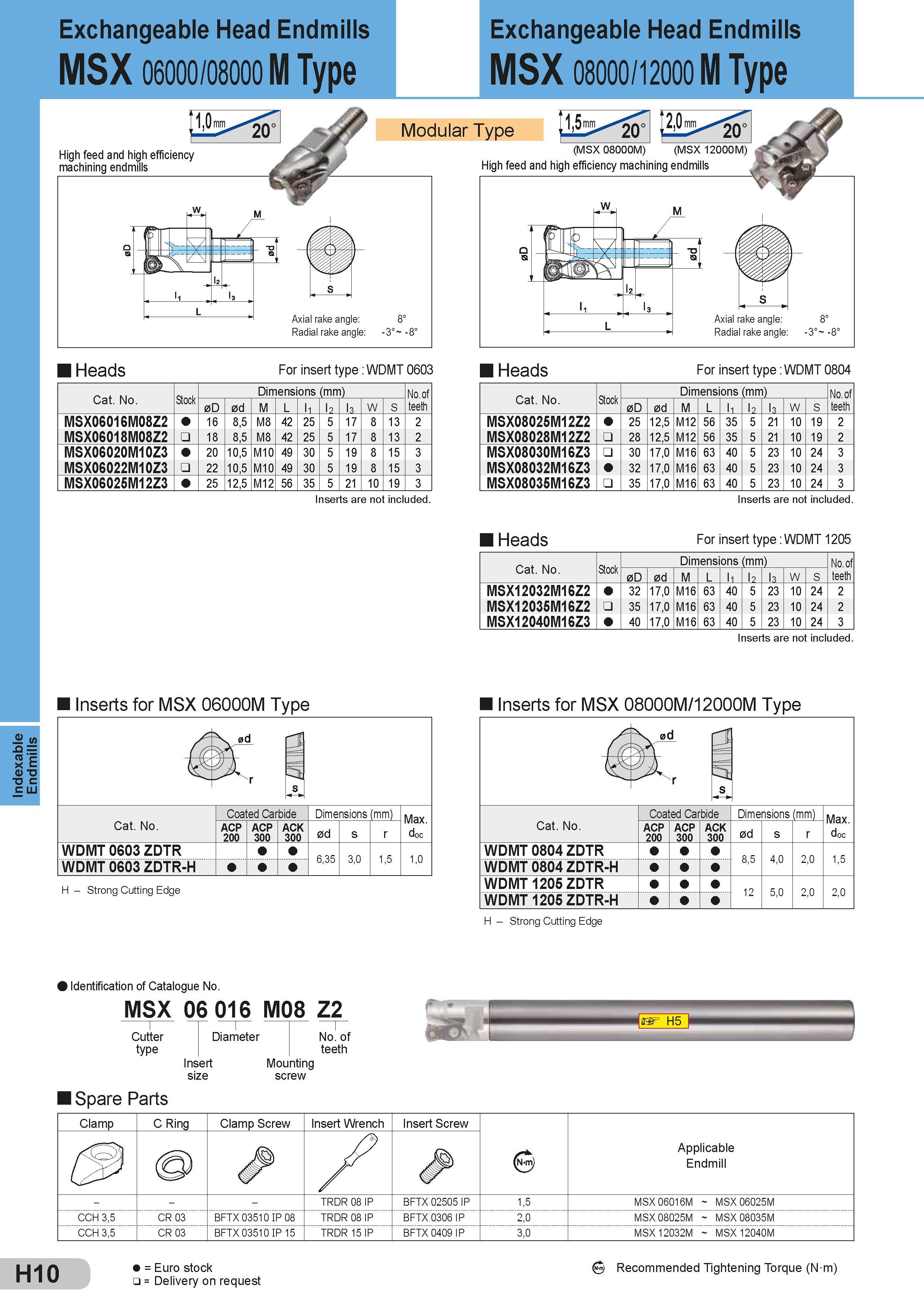

Indexable Endmills Exchangeable H ead Endmills MSX 06000/08000 M Type Exchangeable Head Endmills MSX 08000/12000 M Type High feed and high efficiency machining endmills Heads Axial rake angle: 8° Radial rake angle: -3° -8° For insert type: WDMT 0603 Heads For insert type: WDMT 0804 Cat. No. Stock Dimensions (mm) Размеры указаны в мм No. of teeth Cat. No. Stock Dimensions (mm) Размеры указаны в мм No. of teeth 0D 0d M L l1 l l3 W S 0D 0d M L l1 12 l3 W S MSX06016M08Z2 16 8,5 M8 42 25 5 17 8 13 2 MSX08025M12Z2 25 12,5 M12 56 315 5 21 10 19 2 MSX06018M08Z2 18 8,5 M8 42 25 5 17 8 13 2 MSX08028M12Z2 28 12,5 M12 56 35 5 21 10 19 2 MSX06020M10Z3 20 10,5 M10 49 30 5 19 8 15 3 MSX08030M16Z3 30 17,0 M16 63 40 5 23 10 24 3 MSX06022M10Z3 22 10,5 M10 49 30 5 19 8 15 3 MSX08032M16Z3 32 17,0 M16 63 40 5 23 10 24 3 MSX06025M12Z3 25 12,5 M12 56 35 5 21 10 19 3 MSX08035M16Z3 35 17,0 M16 63 40 5 23 10 24 3 Inserts are not included. Inserts are not included. Inserts for MSX 06000M Type Cat. No. Coated Carbide Dimensions (mm) Размеры указаны в мм Max. doc ACP 200 ACP 300 ACK 300 0d s r WDMT 0603 ZDTR 6,35 3,0 1,5 1,0 WDMT 0603 ZDTR-H H - Strong Cutting Edge Heads For insert type: WDMT 1205 Cat. No. Stock Dimensions (mm) Размеры указаны в мм No. of teeth 0D 0d M L l1 12 l3 W S MSX12032M16Z2 32 17,0 M16 63 40 5 23 10 24 2 MSX12035M16Z2 35 17,0 M16 63 40 5 23 10 24 2 MSX12040M16Z3 40 17,0 M16 63 40 5 23 10 24 3 Inserts are not included. Inserts for MSX 08000M/12000M Type ad r r S Cat. No. Coated Carbide Dimensions (mm) Размеры указаны в мм Max. doc ACP 200 ACP 300 ACK 300 0d s r WDMT 0804 ZDTR 8,5 4,0 2,0 1,5 WDMT 0804 ZDTR-H WDMT 1205 ZDTR 12 5,0 2,0 2,0 WDMT 1205 ZDTR-H H - Strong Cutting Edge \ Identification of Catalogue No. MSX 06 016 M08 Z2 Cutter type Diameter No. of teeth Insert size Mounting screw I Spare Parts Запасные части Sumitomo и комплектующие Clamp C Ring Clamp Screw Insert Wrench Insert Screw Applicable Endmill & / & - - - TRDR 08 IP BFTX 02505 IP 1,5 MSX 06016M MSX 06025M CCH 3,5 CR 03 BFTX 03510 IP 08 TRDR 08 IP BFTX 0306 IP 2,0 MSX 08025M MSX 08035M CCH 3,5 CR 03 BFTX 03510 IP 15 TRDR 15 IP BFTX 0409 IP 3,0 MSX 12032M MSX 12040M H10 = Euro stock = Delivery on request Recommended Tightening Torque (N m)
