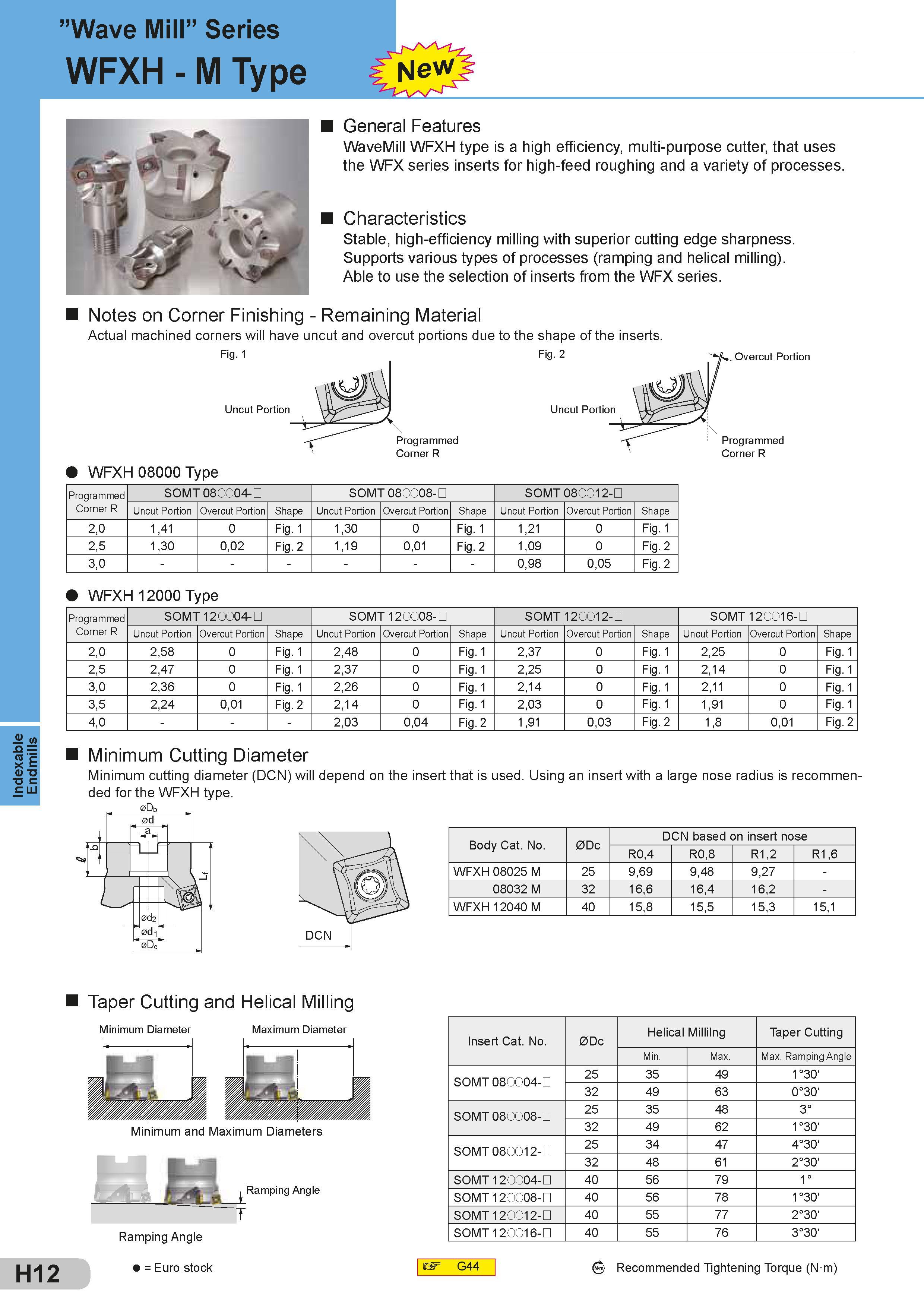

Indexable Endmills "Wave Mill” Series WFXH - M Type New General Features WaveMill WFXH type is a high efficiency, multi-purpose cutter, that uses the WFX series inserts for high-feed roughing and a variety of processes. Characteristics Stable, high-efficiency milling with superior cutting edge sharpness. Supports various types of processes (ramping and helical milling). Able to use the selection of inserts from the WFX series. Notes on Corner Finishing - Remaining Material Actual machined corners will have uncut and overcut portions due to the shape of the inserts Fig. 1 WFXH 08000 Type Programmed Corner R SOMT 080004- SOMT 080008- SOMT 080012-D Uncut Portion Overcut Portion Shape Uncut Portion Overcut Portion Shape Uncut Portion Overcut Portion Shape 2,0 1,41 0 Fig. 1 1,30 0 Fig. 1 1,21 0 Fig. 1 2,5 1,30 0,02 Fig. 2 1,19 0,01 Fig. 2 1,09 0 Fig. 2 3,0 - - - - - - 0,98 0,05 Fig. 2 WFXH 12000 Type Programmed Corner R SOMT 12 0I04- SOMT 12 0I08- SOMT 120012-D SOMT 12 OI16-D Uncut Portion Overcut Portion Shape Uncut Portion Overcut Portion Shape Uncut Portion Overcut Portion Shape Uncut Portion Overcut Portion Shape 2,0 2,58 0 Fig. 1 2,48 0 Fig. 1 2,37 0 Fig. 1 2,25 0 Fig. 1 2,5 2,47 0 Fig. 1 2,37 0 Fig. 1 2,25 0 Fig. 1 2,14 0 Fig. 1 3,0 2,36 0 Fig. 1 2,26 0 Fig. 1 2,14 0 Fig. 1 2,11 0 Fig. 1 3,5 2,24 0,01 Fig. 2 2,14 0 Fig. 1 2,03 0 Fig. 1 1,91 0 Fig. 1 4,0 - - - 2,03 0,04 Fig. 2 1,91 0,03 Fig. 2 1,8 0,01 Fig. 2 Minimum Cutting Diameter Minimum cutting diameter (DCN) will depend on the insert that is used. Using an insert with a large nose radius is recommended for the WFXH type. Body Cat. No. 0Dc DCN based on insert nose R0,4 R0,8 R1,2 R1,6 WFXH 08025 M 25 9,69 9,48 9,27 - 08032 M 32 16,6 16,4 16,2 - WFXH 12040 M 40 15,8 15,5 15,3 15,1 Taper Cutting and Helical Milling Minimum Diameter Maximum Diameter Minimum and Maximum Diameters Ramping Angle Ramping Angle Insert Cat. No. 0Dc Helical Millilng Taper Cutting Min. Max. Max. Ramping Angle SOMT 08 OI 04-0 25 35 49 1°30‘ 32 49 63 0°30‘ SOMT 08 OI 08-D 25 35 48 3° 32 49 62 1°30‘ SOMT 08 OI12-D 25 34 47 4°30‘ 32 48 61 2°30‘ SOMT 12 0I04-D 40 56 79 1° SOMT 12 0I08-D 40 56 78 1°30‘ SOMT 12 OI12-D 40 55 77 2°30‘ SOMT 12 OI16-D 40 55 76 3°30‘ H12 = Euro stock G44 Recommended Tightening Torque (N m)
